Raspberry Pi 3 Model B (Made in UK)

Artno.: 402033-001
Single Board Computer, 4x1.2 GHz, 1 GB RAM, 4x USB, 40 Pin GPIO, CSI (camera port), DSI (display interface), LAN, WLAN, Bluetooth, "Made in UK"
Variant
40.90 € incl. 19% VAT
34.37 € excl. VAT

plus shipping

100+ On stock

Shipping time: 1 - 3 business days

Your configuration
Recommended Accessories
  • Raspberry Pi Pinout Card
    Useful helper in credit card size for all Raspberry Pi boards, with pinout for GPIO, CSI/DSI and A/V ports, overview of PCB test points, useful terminal commands and more
    100+ On stock
    Shipping time: 1 - 3 business days
    Useful helper in credit card size for all Raspberry Pi boards, with pinout for GPIO, CSI/DSI and A/V ports, overview of PCB test points, useful terminal commands and more
  • Raspberry Pi Heat Sink Kit
    Black anodized aluminum heatsinks with self-adhesive thermal pad for Raspberry Pi CPU and USB/LAN IC
    100+ On stock
    Shipping time: 1 - 3 business days
    Black anodized aluminum heatsinks with self-adhesive thermal pad for Raspberry Pi CPU and USB/LAN IC
  • ABL Components Raspberry Pi Premium Heat Sink
    Premium heat sink with self-adhesive thermal pad for the Raspberry Pi CPU, 13x13.5x10mm, 27 K/W thermal resistance
    100+ On stock
    Shipping time: 1 - 3 business days
    Premium heat sink with self-adhesive thermal pad for the Raspberry Pi CPU, 13x13.5x10mm, 27 K/W thermal resistance
  • Goobay 58574 HDMI Cable, HDMI 2.0 LC, 2.00m
    Series 2.0 LC High Speed HDMI Kabel mit Ethernet, 2 m, Schwarz - HDMI-Stecker (Typ A) > HDMI-Stecker (Typ A)
    100+ On stock
    Shipping time: 1 - 3 business days
    Series 2.0 LC High Speed HDMI Kabel mit Ethernet, 2 m, Schwarz - HDMI-Stecker (Typ A) > HDMI-Stecker (Typ A)
  • Raspberry Pi TV HAT
    HAT for the Raspberry Pi for receiving terrestrial DVB-T/DVB-T2 TV, compatible with Raspberry Pi Zero/1B+/2B/3B/3B+/4B
    Orderable
    Shipping time: 9 - 11 business days
    HAT for the Raspberry Pi for receiving terrestrial DVB-T/DVB-T2 TV, compatible with Raspberry Pi Zero/1B+/2B/3B/3B+/4B
  • Raspberry Pi Sense HAT
    Shield for the Raspberry Pi with a LED matrix, a joystick and multiple sensors (accelerometer, gyrometer, temperature, air pressure, humidity)
    On stock
    Shipping time: 1 - 3 business days
    Shield for the Raspberry Pi with a LED matrix, a joystick and multiple sensors (accelerometer, gyrometer, temperature, air pressure, humidity)
  • Raspberry Pi Camera Module V2 Standard
    8-megapixel sensor, supports 1080p30, 720p60, and VGA90 video resolutions, compatible with Raspberry Pi models 1, 2, 3, and 4, API support, suitable for time-lapse and slow-motion projects
    100+ On stock
    Shipping time: 1 - 3 business days
    8-megapixel sensor, supports 1080p30, 720p60, and VGA90 video resolutions, compatible with Raspberry Pi models 1, 2, 3, and 4, API support, suitable for time-lapse and slow-motion projects
  • Raspberry Pi Camera Module V2 NoIR
    No infrared filter, it is ideal for monitoring wildlife and plant health in low-light conditions, 8-megapixel sensor, supports 1080p30, 720p60, and VGA90 video resolutions, compatible with Raspberry Pi models 1, 2, 3, and 4, API support, suitable for time-lapse and slow-motion projects
    100+ On stock
    Shipping time: 1 - 3 business days
    No infrared filter, it is ideal for monitoring wildlife and plant health in low-light conditions, 8-megapixel sensor, supports 1080p30, 720p60, and VGA90 video resolutions, compatible with Raspberry Pi models 1, 2, 3, and 4, API support, suitable for time-lapse and slow-motion projects
  • Official Raspberry Pi Camera Module 3
    Raspberry Pi camera module 3, 11.9 MP, phase detection auto focus, integrated IR cut filter, standard lens (75°)
    10+ On stock
    Shipping time: 1 - 3 business days
    Raspberry Pi camera module 3, 11.9 MP, phase detection auto focus, integrated IR cut filter, standard lens (75°)
  • Official Raspberry Pi Camera Module 3 Wide
    Raspberry Pi camera module 3, 11.9 MP, phase detection auto focus, integrated IR cut filter, wide-angle lens (120°)
    100+ On stock
    Shipping time: 1 - 3 business days
    Raspberry Pi camera module 3, 11.9 MP, phase detection auto focus, integrated IR cut filter, wide-angle lens (120°)
  • Official Raspberry Pi Camera Module 3 NoIR
    Raspberry Pi camera module 3, 11.9 MP, phase detection auto focus, NoIR, standard lens (75°)
    100+ On stock
    Shipping time: 1 - 3 business days
    Raspberry Pi camera module 3, 11.9 MP, phase detection auto focus, NoIR, standard lens (75°)
  • Official Raspberry Pi Camera Module 3 NoIR Wide
    Raspberry Pi camera module 3, 11.9 MP, phase detection auto focus, NoIR, wide-angle lens (120°)
    10+ On stock
    Shipping time: 1 - 3 business days
    Raspberry Pi camera module 3, 11.9 MP, phase detection auto focus, NoIR, wide-angle lens (120°)
  • Official Raspberry Pi HQ Camera (M12 / S-Mount)
    Raspberry Pi camera module, 12.3 MP, integrated IR cut filter, M12 lens mount, 1/4" tripod mount, incl. 20cm FPC cable
    50+ On stock
    Shipping time: 1 - 3 business days
    Raspberry Pi camera module, 12.3 MP, integrated IR cut filter, M12 lens mount, 1/4" tripod mount, incl. 20cm FPC cable
  • Official Raspberry Pi HQ Camera
    Raspberry Pi camera module, 12.3 MP, integrated IR cut filter, C-mount lens standard (CS-mount via included adapter ring), 1/4" tripod mount, incl. 20cm FPC cable
    10+ On stock
    Shipping time: 1 - 3 business days
    Raspberry Pi camera module, 12.3 MP, integrated IR cut filter, C-mount lens standard (CS-mount via included adapter ring), 1/4" tripod mount, incl. 20cm FPC cable
  • Waveshare 9219 Camera (C), 5 MP Fixed Focus
    Camera module with 5 Mega Pixel sensor and fixed focus for the Raspberry Pi, incl. 15cm FPC cable
    10+ On stock
    Shipping time: 1 - 3 business days
    Camera module with 5 Mega Pixel sensor and fixed focus for the Raspberry Pi, incl. 15cm FPC cable
  • Waveshare 10300 RPi Camera (E)
    Raspberry Pi Camera Module, Supports Night Vision
    Out of stock
    Raspberry Pi Camera Module, Supports Night Vision
  • Waveshare 10344 RPi Camera (G)
    Raspberry Pi Camera Module, Fisheye Lens, Wider Field of View
    10+ On stock
    Shipping time: 1 - 3 business days
    Raspberry Pi Camera Module, Fisheye Lens, Wider Field of View
  • Waveshare 10703 RPi Camera (H)
    Raspberry Pi Camera Module, Fisheye Lens, Wider Field of View, Supports Night Vision
    10+ On stock
    Shipping time: 1 - 3 business days
    Raspberry Pi Camera Module, Fisheye Lens, Wider Field of View, Supports Night Vision
40.90 € incl. 19% VAT *

Description

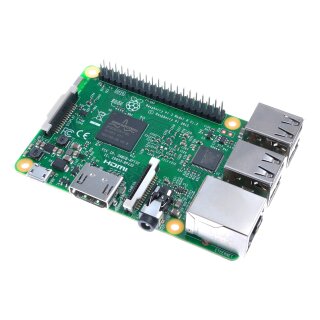

The Raspberry Pi 3 Model B is based on the Broadcom BCM2837, a 1.2 GHz 64-bit quad-core ARMv8 CPU. Therefore, the Pi 3 is up to ten times as powerful compared to the first-generation Raspberry Pi. The board dimensions and connector positions are identical to the previous versions, only the LED positions have changed to the opposite side.

The four USB ports provide up to 2.4 A of current for high-performance USB devices. Thanks to the integrated WiFi and Bluetooth interface, the Pi 3 now only needs a power adaptor and you are ready to go!

Our attractively priced bundles contains

If you want to get started quickly, take a look at our turn-key Raspberry Pi Systems. Those are "Plug & Play" computers that come fully assembled, pre-installed and tested from the factory.

Included with Delivery

Raspberry Pi 3 Model B board in original packaging.

Included with our bundles:

Accessory Kit OKdo Premium Kit
Board Raspberry Pi 3 Model B board in original packaging
Memory Card 32 GB Class 10
Power Supply Official Pi 3 Power Supply 5V/2,5A (EU) Official Pi 3 Power Supply 5V/2,5A (EU/UK/US/AU)
Case Basic+ Case black OneNineDesign Case White
Heatsinks Heatsink Kit
HMDI Cable HDMI Cable 1m Official HDMI Cable 1m White

Technical Specifications

  • New CPU generation: Broadcom BCM2837 64-bit quad-core, 1.2 GHz, 1 GB RAM (BCM2837 64-bit ARMv8 ARM Cortex-A53)
  • Bluetooth 4.1 (Low Energy) and Wi-Fi on board
  • Fast Ethernet LAN port 10/100 MBit/s
  • Composite video / audio port (3.5mm jack)
  • 4x USB 2.0 port
  • Full-size HDMI port
  • DSI display interface port
  • CSI camera port
  • 40 pin GPIO port
  • micro-USB port for power supply
  • microSD card slot
  • Dimensions: 85.6 x 56 x 21 mm
