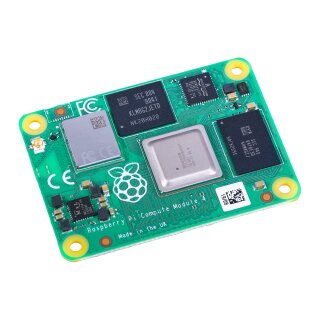

Raspberry Pi Compute Module CM4108032 (32 GB, 8 GB RAM, WiFi)
Description
Note: Due to the current supply situation, the maximum order quantity is limited in the webshop. Please contact us if you want to place a backorder with higher quantities.
The Raspberry Pi Compute Module 4 brings the power of the Raspberry Pi 4 to embedded applications with a compact form factor. The CM4 features a quad-core ARM Cortex-A72 processor, dual video output and a wide range of other interfaces.
The Raspberry Pi CM4 is available in 32 variants and is optimally tailored to your application with a range of RAM and eMMC flash options and with or without integrated WLAN/Bluetooth module.
Official accessories allow a quick start:
- CM4 IO Board: The IO Board provides all CM4 interfaces to external connectors. It serves as a development platform or can be integrated into your end products.
- CM4 Antenna Kit: The Antenna Kit can be connected to the CM4 via the U.FL connector and offers optimal WLAN signal reception. It is specifically designed and certified for the CM4.
Model Overview
| Raspberry Pi CM4 | Raspberry Pi CM3+ | ||
|---|---|---|---|
| CPU | 4x 1.5 GHz (64-bit) Broadcom BCM2711 (Cortex-A72, ARM v8) |
4x 1.2 GHz (64-bit) Broadcom BCM2837B0 (Cortex-A53, ARM v8) |
|
| RAM | 1/2/4/8 GB LPDDR4 | 1 GB LPDDR2 | |
| eMMC | Size | 0/8/16/32 GB | |
| Bandwidth | up to 100 MB/s | up to 25 MB/s | |
| WLAN/BT | (optional) | ||
| Ethernet PHY | Gigabit | ||
| Minimum Availability | January 2028 | January 2026 | |
| Raspberry Pi CM4 | Raspberry Pi CM3+ | ||
|---|---|---|---|
| Connectivity | HDMI | 2x HDMI 2.0 (up to 4Kp60) |
1x HDMI 1.3a (up to 1080p60) |
| USB | 1x USB 2.0 Host/OTG | ||
| CSI | 1x 2-Lane MIPI, 1x 4-Lane MIPI | ||
| DSI | 1x 2-Lane MIPI, 1x 4-Lane MIPI | ||
| PCIe | 1x PCIe Gen2 1-Lane (5 Gbps) | ||
| LAN | 1x Gigabit Ethernet PHY | ||
| WLAN | 2.4 / 5.0 GHz IEEE 802.11b/g/n/ac | ||
| Bluetooth | Bluetooth 5.0, BLE | ||
| Antenna | onboard, external via U.FL | ||
| GPIO | Pins | 28 | 48 |
| UART | up to 6x | 2x | |
| I2C | up to 6x | 2x | |
| SPI | up to 5x | 2x | |
| Other | DPI, PCM, PWM, GPCLK | ||
| Power | 5V | 5V, 3V3, 1V8 | |
| Connector | 2x 100 Pin DF40 | 200 Pin SODIMM | |
| Dimensions | 55 x 40 mm | 67.6 x 31 mm | |
| Shipping weight: | 0.02 Kg |
