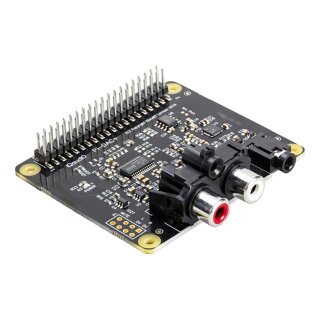

Raspberry Pi IQaudio DAC+ HAT

Artno.: RP2-503680
HAudio digital/analog converter HAT for the Raspberry Pi, PCM5122 DAC IC, 2x RCA and 1x headphone output
from 19.90 € incl. 19% VAT
16.72 € excl. VAT

plus shipping

10+ On stock

Shipping time: 1 - 3 business days

Your configuration
Cases
  • Raspberry Pi 4 B (1 GB)
    Single Board Computer, 4x1.8 GHz, 1 GB RAM, 2x USB 2.0, 2x USB 3.0, 40 Pin GPIO, CSI (camera port), DSI (display interface), Gigabit LAN, WLAN, Bluetooth 5.0
    soon in stock
    Shipping time: 3 - 5 business days
    Single Board Computer, 4x1.8 GHz, 1 GB RAM, 2x USB 2.0, 2x USB 3.0, 40 Pin GPIO, CSI (camera port), DSI (display interface), Gigabit LAN, WLAN, Bluetooth 5.0
  • Raspberry Pi 4 B (2 GB)
    Single Board Computer, 4x1.8 GHz, 2 GB RAM, 2x USB 2.0, 2x USB 3.0, 40 Pin GPIO, CSI (camera port), DSI (display interface), Gigabit LAN, WLAN, Bluetooth 5.0
    soon in stock
    Shipping time: 50 - 52 business days
    Single Board Computer, 4x1.8 GHz, 2 GB RAM, 2x USB 2.0, 2x USB 3.0, 40 Pin GPIO, CSI (camera port), DSI (display interface), Gigabit LAN, WLAN, Bluetooth 5.0
  • Raspberry Pi 4 B (4 GB)
    Single Board Computer, 4x1.8 GHz, 4 GB RAM, 2x USB 2.0, 2x USB 3.0, 40 Pin GPIO, CSI (camera port), DSI (display interface), Gigabit LAN, WLAN, Bluetooth 5.0
    100+ On stock
    Shipping time: 1 - 3 business days
    Single Board Computer, 4x1.8 GHz, 4 GB RAM, 2x USB 2.0, 2x USB 3.0, 40 Pin GPIO, CSI (camera port), DSI (display interface), Gigabit LAN, WLAN, Bluetooth 5.0
  • Raspberry Pi 4 B (8 GB)
    Single Board Computer, 4x1.8 GHz, 8 GB RAM, 2x USB 2.0, 2x USB 3.0, 40 Pin GPIO, CSI (camera port), DSI (display interface), Gigabit LAN, WLAN, Bluetooth 5.0
    100+ On stock
    Shipping time: 1 - 3 business days
    Single Board Computer, 4x1.8 GHz, 8 GB RAM, 2x USB 2.0, 2x USB 3.0, 40 Pin GPIO, CSI (camera port), DSI (display interface), Gigabit LAN, WLAN, Bluetooth 5.0
19.90 € incl. 19% VAT *

Description

The Raspberry Pi DAC+ is a high-performance audio HAT that works with any Raspberry Pi model featuring a 40-pin GPIO header. It uses the Texas Instruments PCM5122 to deliver stereo analog audio to phono (RCA) connectors. The DAC+ connects directly to the GPIO header without needing soldering or external power.

Specifications:

  • Dimensions: 58 mm x 65 mm
  • Audio Performance: 24-bit, 192 kHz
  • Power Source: Powered by Raspberry Pi through the GPIO header

Features:

  • Power LED
  • Analog audio output (0-2V RMS) via stereo phono (RCA) sockets with MUTE signal
  • Dedicated headphone amplifier with a 3.5mm output
  • 40-pin pass-through GPIO header
  • HAT EEPROM write-enabled
  • Operating temperature: 0°C - 50°C

Note: Each IQaudIO sound cards has a specific purpose / is designed for specific use cases. Select the board that best integrates with your existing HiFi equipment. If you don't have any existing equipment then simply buy a set of speakers and use the Pi-DigiAMP+.

Model Overview

DAC Pro HAT DAC+ HAT DigiAmp+ HAT Codec Zero HAT
Line out
Balanced out
Stereo speakers
Mono speaker
Headphones
Aux in
Aux out
Ext mic
Built-in mic
Shipping weight: 0.04 Kg
