Description

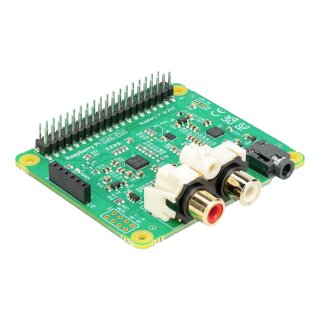

IQaudio DAC Pro is a high-quality audio output HAT for Raspberry Pi 1 Model B+, 2, 3, and 4. It features the Texas Instruments PCM5242 DAC, providing excellent signal-to-noise performance. The DAC Pro supports balanced and differential output alongside phono/RCA output and includes a headphone amplifier.
It connects easily to the Raspberry Pi's 40-pin GPIO header without soldering or external power. The DAC Pro has two 3-pin headers (P7/P9) for optional XLR connections, allowing for balanced output through XLR sockets located above the USB/Ethernet ports.
Specifications:
- P1: Analogue output (0-2V RMS); carries GPIO27, MUTE signal, audio channels, and grounds.
- P6: Headphone socket; includes left, right, and ground signals.
- P7/P9: Differential output (0-4V RMS); P7 for left and P9 for right.
- P10: Optional 5V input for powering the Raspberry Pi.
-
Audio Quality:
- 24-bit depth
- Hi-Def Audio 96 kHz
- Full HD Audio 192 kHz
Note: Each IQaudIO sound cards has a specific purpose / is designed for specific use cases. Select the board that best integrates with your existing HiFi equipment. If you don't have any existing equipment then simply buy a set of speakers and use the Pi-DigiAMP+.
Model Overview
| DAC Pro HAT | DAC+ HAT | DigiAmp+ HAT | Codec Zero HAT | |
|---|---|---|---|---|
| Line out | ||||
| Balanced out | ||||
| Stereo speakers | ||||
| Mono speaker | ||||
| Headphones | ||||
| Aux in | ||||
| Aux out | ||||
| Ext mic | ||||
| Built-in mic |
| Shipping weight: | 0.04 Kg |
