SIMCOM SIM7070G CAT-M/NB-IoT Modul

Artnr.: WS7-017540
Hersteller: SIMCOM

SIM7070G SIMCom original LPWA Cat-M/NB-IoT/GSM module, with GNSS support, strong extension capability with UART, GPIO, PCM, SPI, I2C etc.

14,90 €

inkl. 19% MwSt.

(12,52 € exkl. MwSt.)

zzgl.

ab Lager lieferbar

Beschreibung
Kundenrezensionen

Prohibited by the module manufacturer SIMCOM, we're not allowed to ship this product, or to provide any tech support, to the following countries/regions: Iran, North Korea, Cuba, Sudan, Syrian.

SIM7070G SIMCom original LPWA Cat-M/NB-IoT/GSM module, with GNSS support, strong extension capability with UART, GPIO, PCM, SPI, I2C etc.

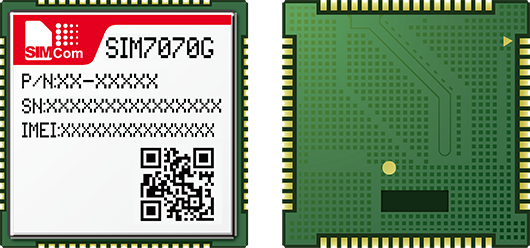

SIM7070G

Cat-M/NB-IoT/GSM module

The SIM7070G is Multi-Band CAT-M, NB-IoT and GPRS module solution in a SMT type .

It has strong extension capability with rich interfaces including UART, GPIO, PCM, SPI, I2C etc. The module provides much flexibility and ease of integration for customer's application.

It is designed for applications that need low latency, Low throughput data communication in a variety of radio propagation conditions. Due to the unique combination of performance, security and flexibility, this module is ideally suited for M2M applications, such as metering, asset tracking, remote monitoring , E-health etc.

Product Advantages

With Power Saving Mode(PSM) and Extended Discontinuous Reception(eDRX), SIM7070G can extend battery life to 10 years.
CAT-M, NB-IoT, GPRS triple mode
The package of SIM7070G is compatible with SIM7000/SIM800F/SIM900

Selection Guide

Category	Cat-M & NB-IoT & GSM			Cat-M & NB-IoT	NB-IoT
Series	SIM7000X		SIM7070G	SIM7080G	SIM7020X
Module	SIM7000C	SIM7000E	SIM7070G	SIM7080G	SIM7020C	SIM7020E
Applicable regions	China	Europe / Africa / Australia / Southeast Asia	Global		China	Europe / Africa / Australia / Southeast Asia
Frequency Band
NB-IoT	LTE-FDD: B1/B3/B5/B8	LTE-FDD: B3/B8/B20/B28	B1/B2/B3/B4/B5/B8/B12/B13/B18/B19 /B20/B25/B26/B28/B66/B71/B85		LTE-FDD: B1/B3/B5/B8	LTE-FDD: B1/B3/B5/B8/B20/B28
Cat-M	LTE-FDD: B1/B3/B5/B8	LTE-FDD: B3/B8/B20/B28	B1/B2/B3/B4/B5/B8/B12/B13/B14/B18 /B19/B20/B25/B26/B27/B28/B66/B85		N/A
GSM	GPRS/EDGE 900/1800 MHz		GSM/GPRS/EDGE 850/900/1800/1900MHz	N/A	N/A
GNSS	GPS, GLONASS, BeiDou	GPS, GLONASS, BeiDou, Galileo			N/A
Data Transfer
NB-IoT(Kbps)	34(DL) / 66(UL)		136(DL) / 150(UL)	136(DL) / 150(UL)	26.15(DL) / 62.5(UL)
Cat-M(Kbps)	300(DL) / 375(UL)		589(DL) / 1119(UL)	589(DL) / 1119(UL)
EDGE(Kbps)	236.8(DL) / 236.8(UL)		236.8(DL) / 236.8(UL)
GPRS(Kbps)	85.6(DL) / 85.6(UL)		85.6(DL) / 85.6(UL)
Software Features
Protocol	TCP/UDP/HTTP/HTTPS/TLS/DTLS/PING/LWM2M/COAP/MQTT
SMS	Supports Text, PDU
Control	Controlled by AT commands through USB/UART
Firmware upgrade	USB				UART
Hardware Interfaces
SIM card	1.8V/3V		1.8V	1.8V	1.8V/3V
UART	Supports AT commands				Supports AT commands, firmware upgrading
USB	Supports AT commands testing, GPS positioning, firmware upgrading, etc.				For external power supply ONLY
Others	PCM, SPI, I2C, GPIO			GPIO
Antenna	LTE antenna + GNSS antenna				LTE antenna
Applications
Examples	Metering, remote control, smart home, smart city, intelligent agriculture, and so on

Resources & Services

Wiki:www.waveshare.com/wiki/SIM7070G_Cat-M/NB-IoT/GPRS_HAT

Package Contents

This is an SMT module, we also provide the ready-made expansion board for easy evaluation: SIM7070G Cat-M/NB-IoT/GPRS HAT

SIM7070G x1

Versandgewicht:	0,00 kg

Es gibt noch keine Bewertungen.
