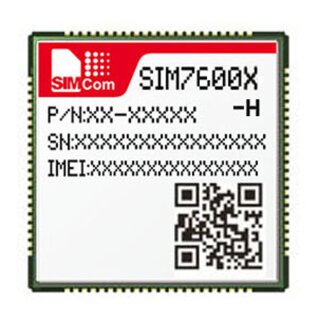

SIMCOM SIM7600E-H LTE Cat4 Module
Description
Prohibited by the module manufacturer SIMCOM, we're not allowed to ship this product, or to provide any tech support, to the following countries/regions: Iran, North Korea, Cuba, Sudan, Syrian.
SIM7600X-H SIMCom original 4G LTE Cat-4 module, with GNSS support, powerful expansibility with UART, USB, I2C, GPIO
SIM7600X-H
LTE Cat-4 module
The SIM7600-H series integrates multiple satellite high accuracy positioning GNSS systems, with multiple built-in network protocols, supports drivers for main operation systems (USB driver for Windows, Linux and Android etc.) and software function, AT commands are compatible with SIM7500/SIM7600 series modules. Meanwhile the SIM7600-H series integrates main industrial standard interfaces, with powerful expansibility, including abundant interfaces such as UART, USB, I2C, GPIO, which is suitable for main IoT applications such as telematics, surveillance devices, CPE, industrial routers, and remote diagnostics etc.
Product Advantages
- LCC1 form factor with abundant interfaces
- Suitable for LTE, UMTS and GSM networks with global coverage
- Abundant software functions: FOTA, LBS, TLS, VoLTE
- Multi-constellation GNSS receiver support
- AT commands of the SIM7600-H series are compatible with the SIM7500/SIM7600 series modules
Selection Guide
| Series | SIM7600CE | SIM7600X | SIM7600X-H | ||||
|---|---|---|---|---|---|---|---|
| Module | SIM7600CE-CNSE | SIM7600CE-T | SIM7600E | SIM7600E-H | SIM7600A-H | SIM7600G-H | |
| Applicable regions | China | Europe/Southeast Asia/West Asia/Africa/China/South Korea | North America | Global | |||
| Frequency Band | |||||||
| LTE Cat-4 /LTE Cat-1 | LTE-TDD B38/B39/B40/B41 LTE-FDD B1/B3/B8 | LTE-FDD B1/B3/B5/B7/B8/B20 LTE-TDD B38/B40/B41 | LTE-FDD B2/B4/B12 | LTE-TDD B34/B38 /B39/B40/B41 LTE-FDD B1/B2/B3/B4/B5/B7 /B8/B12/B13/B18/B19 /B20/B25/B26/B28/B66 | |||
| 3G | UMTS/HSDPA/HSPA+ B1/B8 TD-SCDMA B34/B39 | UMTS/HSPA+ B1/B5/B8 | UMTS/HSPA+ B2/B5 | UMTS/HSDPA/HSPA+ B1/B2/B4/B5/B6/B8/B19 | |||
| 2G | GSM/GPRS/EDGE 900/1800 MHz | N/A | GSM/GPRS/EDGE 850/900/1800/1900MHz | ||||
| GNSS | N/A | GPS/Beidou/GLONASS | |||||
| Data Transfer | |||||||
| LTE Cat-4 | 150Mbps(DL)/50Mbps(UL) | N/A | 150Mbps(DL)/50Mbps(UL) | ||||
| LTE Cat-1 | N/A | 10Mbps(DL) /5Mbps(UL) | N/A | ||||
| 3G (HSPA+) | 42Mbps(DL)/5.76Mbps(UL) | ||||||
| 2G (EDGE) | 236.8Kbps(DL)/236.8Kbps(UL) | N/A | 236.8Kbps(DL)/236.8Kbps(UL) | ||||
| 2G (GPRS) | 85.6Kbps(DL)/85.6Kbps(UL) | N/A | 85.6Kbps(DL)/85.6Kbps(UL) | ||||
| Software Features | |||||||
| Operating system | Windows/Linux/Android | ||||||
| Protocol | TCP/IP/IPV4/IPV6/Multi-PDP/FTP/FTPS/HTTP/HTTPS/DNS | ||||||
| Dial-up | NDIS/RNDIS/PPP | ||||||
| SMS | Supports MT, MO, CB, Text, PDU | ||||||
| Control | Controlled by AT commands through USB/UART | ||||||
| Firmware upgrade | USB | ||||||
| Hardware Specifications | |||||||
| Interfaces | USB, UART, PCM, ADC, GPIO, SD Card, SPI, I2C | ||||||
| UART baudrate | 300bps ~ 4Mbps (115200bps by default) | ||||||
| SIM card | 1.8V / 3V | ||||||
| Antenna interface | LTE main antenna | LTE main antenna + LTE diversity antenna + GNSS antenna | |||||
| Power supply | 3.4V ~ 4.2V, typ 3.8V | ||||||
| Dimensions | 30 × 30 × 2.9 mm | ||||||
| Operating temp. | -40? ~ +85? | ||||||
| Applications | |||||||
| Examples | Healthcare, smart payment, Internet talk, environmental monitoring, energy monitoring, fleet management, smart industry, intelligent agriculture, etc. | ||||||
Package Contents
This is an SMT module, we also provide the ready-made expansion board for easy evaluation: SIM7600A-H 4G HAT,SIM7600E-H 4G HAT,SIM7600G-H 4G HAT
- OPTIONS SIM7600X-H x1
| Shipping weight: | 0.01 Kg |
