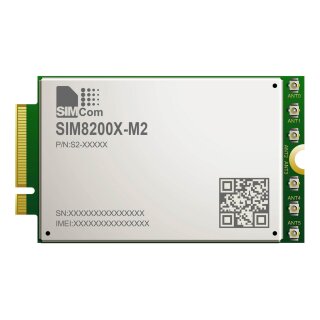

SIM8200-M2 Series
5G module
The SIM8200-M2 series is the Multi-Band 5G NR/LTE-FDD/LTE-TDD/HSPA+ module which supports R15 5G NSA/SA up to 4Gbps data transfer.
It has strong extension capability with rich interfaces including UART,PCIe,USB3.1, GPIO etc. The module provides much flexibility and ease of integration for customer's application.

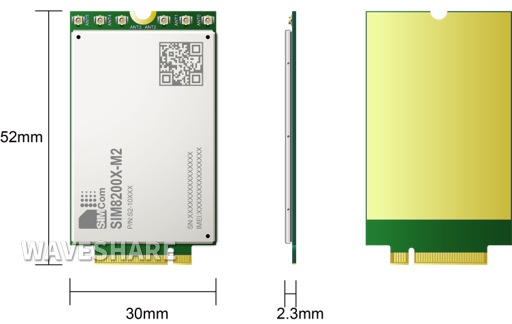

The SIM8200-M2 series adopts M.2 form factor, TYPE 3052-S3-B. AT commands of SIM8200-M2 series are compatible with SIM7912G/SIM8300G-M2 series modules. This also minimizes the investments of customers, and enables a short time-to-market.
It is designed for applications that need high throughput data communication in a variety of radio propagation conditions. Due to the unique combination of performance, security and flexibility, this module is ideally suited for many applications.
Product Advantages
- Standard M.2 interface.
- High throughput data communication.
- AT commands of the SIM8200-M2 series are compatible with SIM7912G/SIM8300G-M2 series modules
Specifications
| Product | SIM8200EA-M2 |
|---|---|
| Frequency band | |
| Sub-6G | n1, n2, n3, n5, n7, n8, n12, n20, n25, n28, n40, n41, n66, n71, n77, n78, n79 |
| LTE-FDD | B1/B2/B3/B4/B5/B7/B8/B12/B13/B14/B17/B18/B19/B20/B25/B26/B28/B29/B30/B66/B71 |
| LTE-TDD | B34/B38/B39/B40/B41/B42/B48 |
| WCDMA | B1/B2/B3/B4/B5/B8 |
| GNSS | GPS, GLONASS, Beidou, Galileo, and QZSS |
| Data rate | |
| Sub-6G | 4 Gbps (DL) / 500 Mbps (UL) |
| LTE | 2 Gbps (DL) / 200 Mbps (UL) |
| HSPA | 42 Mbps (DL) / 5.76 Mbps (UL) |
| Software functions | |
| Operating systems | Windows/Linux/Android |
| Communication protocols | TCP/IP/IPV4/IPV6/Multi-PDP/FTP/FTPS/HTTP/HTTPS/MQTTS/DNS/SSL3.0 |
| SMS | Supports MT, MO, CB, Text, PDU |
| Firmware upgrade | Supports firmware upgrade via USB port |
| Hardware Info | |
| SIM card | 1.8V/3.0V |
| Antenna connector | 6x IPEX-4 connector, for 3G/4G/5G/GNSS |
| Power supply | 5V 3A |
| Form factor | M.2 |
| Dimensions | 52.0 × 30.0 × 2.3mm |
| Operating temperature | -30? ~ +70? |
| Applications | |
| Applicable regions | China, US, Japan, South Korea, Europe, the Middle East, Latin America, etc. |
| Application examples | CPE, Smart gateway, Drone, Live streaming, Remote medical treatment, Intelligent security |
Package Contents
- SIM8200EA-M2 x1
