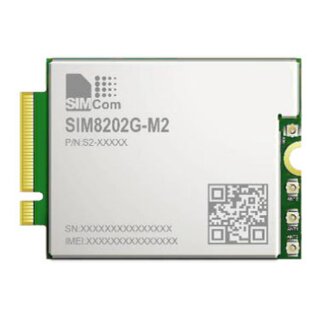

SIMCOM SIM8202G-M2 Multi-Band 3G/4G/LTE/5G Module
Artno.: WS1-019256
SIM8202X-M2 SIMCom Original 5G Module, M.2 Form Factor, High Throughput Data Communication

245.00 € incl. 19% VAT
205.88 € excl. VAT
10+ On stock

Shipping time: 1 - 3 business days

Description

Prohibited by the module manufacturer SIMCOM, we're not allowed to ship this product, or to provide any tech support, to the following countries/regions: Iran, North Korea, Cuba, Sudan, Syrian.

SIM8202X-M2 Series

5G module, four antennas support

The SIM8202X-M2 is the Multi-Band 5G NR/LTE-FDD/LTE-TDD/HSPA+ module which supports R15 5G NSA/SA up to 2.4Gbps data transfer.

It has strong extension capability with abundant interfaces including PCIe, USB3.1, GPIO etc. The module provides much flexibility and ease of integration for customer's applications.

The SIM8202X-M2 adopts M.2 form factor, TYPE 3042-S3-B. AT commands of SIM8202X-M2 are compatible with SIM7912G/SIM8200X-M2 series modules. This also minimizes the investments of customers and enables a short time-to-market.

It is designed for applications that need high throughput data communication in a variety of radio propagation conditions. Due to the unique combination of performance, security and flexibility, this module is ideally suited for many applications.

Product Advantages

  • Standard M.2 interface.
  • High throughput data communication.
  • AT commands of the SIM8202X-M2 are compatible with SIM7912G/SIM8200X-M2 series modules

Specifications

Product SIM8202G-M2
Frequency band
Sub-6G (SA) n1, n2, n3, n5, n7, n8, n12, n20, n28, n38, n40, n41, n48, n66, n71, n77, n78, n79
Sub-6G (NSA) n41, n77, n78, n79
LTE-FDD B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B17, B18, B19, B20, B25, B26, B28, B29, B30, B32, B66, B71
LTE-TDD B34, B38, B39, B40, B41, B42, B43, B48
WCDMA B1, B2, B3, B4, B5, B8
GNSS GPS, GLONASS, Beidou, Galileo, and QZSS
Data rate
Sub-6G 2.4 Gbps (DL)  /  500 Mbps (UL)
LTE 1 Gbps (DL)  /  200 Mbps (UL)
HSPA 42 Mbps (DL)  /  5.76 Mbps (UL)
Software functions
Operating systems Windows/Linux/Android
Communication protocols TCP/IP, IPV4, IPV6, Multi-PDP, FTP, FTPS, HTTP, HTTPS, MQTTS, DNS, SSL3.0
SMS Supports MT, MO, CB, Text, PDU
Firmware upgrade Supports firmware upgrade via USB port
Hardware Info
SIM card 1.8V/3.0V
Antenna connector 4x IPEX-4 connector, for 3G/4G/5G/GNSS
Power supply 5V 3A
Form factor M.2

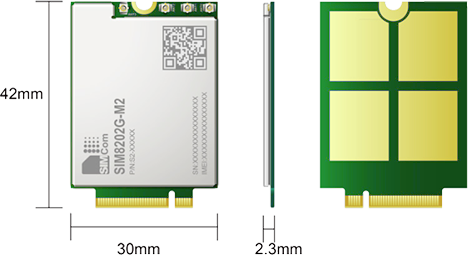

Dimensions 42.0 × 30.0 × 2.3mm
Operating temperature -30? ~ +70?
Applications
Applicable regions China, US, Japan, South Korea, Europe, the Middle East, Latin America, etc.
Application examples CPE, Smart gateway, Drone, Live streaming, Remote medical treatment, Intelligent security

Resources & Services

Package Contents

This is an M.2 module without antenna or base board, we also provide the ready-made expansion board for easy evaluation: SIM8202G-M2 5G HAT
  1. SIM8202G-M2 x1
