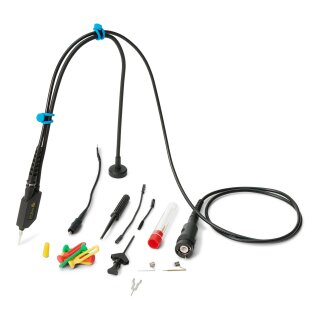

Sensepeek 6023 SQ350 Oscilloscope Probe (350 MHz)
Description
This passive high-impedance oscilloscope probe is suitable for most oscilloscopes with a 1 MΩ input impedance.
*The probes can continue to measure above the rated bandwidth but with decreased signal, the probe will reach the f3dB limit above the rated bandwidth. The probe has a flatness of ±0.5dB over the first 1/3 of the bandwidth and less than ±3dB over the specified bandwidth.
| SQ200 | SQ350 | SQ500 | |
|---|---|---|---|
| Bandwidth >= f3dB (MHz)* | DC to 200 MHz | DC to 350 MHz | DC to 500 MHz |
| Attenuation | 10:1 | ||
| Resistance at probe tip (±2% at DC) | 10MΩ | ||
| Capacitance at probe tip | 13.9 pF | 12.7 pF | 9 pF |
| Scope input impedance | 1MΩ | ||
| Scope x10 pin | Yes | ||
| Maximum working voltage | 150 V RMS CAT I | ||
| Overvoltage protection | 800 V | ||
| Compensation range | 9 to 54 pF | ||
| Cable length with probe and BNC | 1.2m | ||
| Temperature Storage | -40 °C to +60 °C | ||
| Temperature Operating | -20 °C to +50 °C | ||
| Max. humidity (non-condensing) Storage |
80% | ||
| Max. humidity (non-condensing) Operating |
80% to +30 °C, decreasing linearly to 40% at +50 °C | ||
| Max. altitude Storage | 15 km | ||
| Max. altitude Operating | 2 km | ||
| Pollution Degree | 2 (As defined in IEC 61010-031. Only non-conductive pollution. Occasionally, however, a temporary conductivity caused by condensation must be accepted.) | ||
| Weight (probe without holder) | 40 g | ||
| Probe tip diameter (mm) | 0.5 | ||
| RoHS and REACH compliant | Yes | ||
| Shipping weight: | 0.17 Kg |
User Manual (EN)
