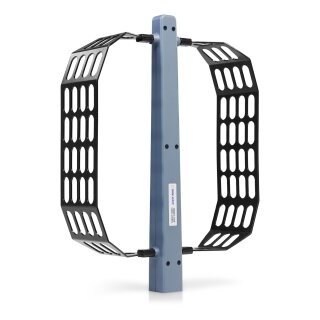

Siglent ANT-DA11 Advanced Measurement Kit License
Description
The Siglent ANT-DA11 is a part of the comprehensive directional antenna suite designed for use with the SHA800A series spectrum analyzers and other compatible devices.
Key Features
- Wide frequency coverage from 10 MHz to 8 GHz
- Integrated amplifier handle for signal boost
- Dual polarization capability
- Professional N-type connector interface
- Compatible with SHA800A series spectrum analyzers
Model Overview
| Component Specifications | |
|---|---|
| ANT-DA1 | 10 MHz - 200 MHz |
| ANT-DA2 | 200 MHz - 500 MHz |
| ANT-DA3 | 500 MHz - 8 GHz |
| Amplifier Handle Specifications | |
| Gain | 12 dB @ 1 GHz (typical) |
| Performance Specifications | |
|---|---|
| Antenna Gain | 110 dB (typisch) |
| SWR | < 1:1.9 |
| Impedance | 50 Ohm, N-type Buchse |
| Polarization | Horizontal and Vertical |
