Siglent ANT-DA12 Analog Modulation Analysis License (AM, FM, PM)
Description

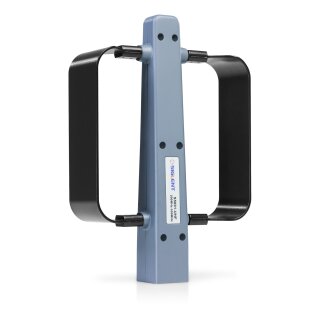

The Siglent ANT-DA12 is a part of the comprehensive directional antenna suite designed for use with the SHA800A series spectrum analyzers and other compatible devices.
This directional antenna is essential for applications requiring precise directional measurements over the specified frequency range. The included amplifier handle aids in boosting weak signals, making it highly suitable for fieldwork and complex RF analysis tasks.
Model Overview
| Component Specifications | |
|---|---|
| Frequency Range | 110 MHz - 200 MHz |
| Amplifier Handle Specifications | |
| Gain | 12 dB @ 1 GHz (typical) |
| Performance Specifications | |
|---|---|
| Antenna Gain | 10 dB (typical) |
| SWR | < 1:1.9 (typical) |
| Impedance | 50 Ohm, N-type female connector |
| Polarization | Horizontal and Vertical |
