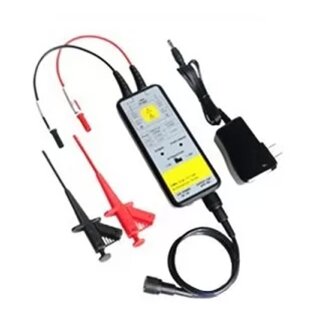

Siglent DPB1300 Differential Probe 50 MHz, 50/500x
Description
Specifications
- Bandwidth: 50 MHz
- Rise Time: ≤ 7 ns
- DC Accuracy: ± 2%
- Max Input: 600 V CATIII, 1000 V CATII
- Max Differential Test Voltage (DC + Peak AC): 50 X: ±130 V, 500 X: ±1300 V
- Input impedance/capacitance: 5 MΩ/< 4 pF (Single-ended), 10 MΩ/< 2 pF (Two inputs)
- Power: DC 12 V/1.2 A Power supply
