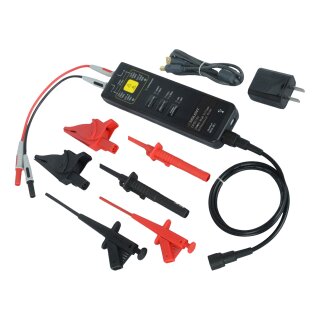

Siglent DPB5700A Differential Probe (100 MHz, 7000V)
Description
The Siglent DPB5700A is a high-voltage differential probe designed for floating voltage measurements in power electronics and other high-voltage applications. It has a maximum input voltage of 7000V and a bandwidth of 100MHz. This probe features selectable attenuation rates of 100X and 1000X, making it suitable for a wide range of testing environments, including switching power supplies, inverters, and motor drive designs. With USB-powered functionality, the DPB5700A is compatible with most oscilloscopes via its standard BNC connector, offering flexible use in laboratory or field settings.
Siglent DPB5700A Specifications
| Model | DPB5700A |
| Bandwidth | 100 MHz |
| Max. Input Differential Voltage | 7000 V (DC + AC) |
| Range Selection (Attenuation Ratio) | X100 / X1000 |
| Accuracy | ± 2% |
| Power | Standard DC power adapter (9V/1A) |
| Dimensions | 32 x 26 x 9 cm (packing) |
| Shipping weight: | 0.40 Kg |
Datasheet (EN)
