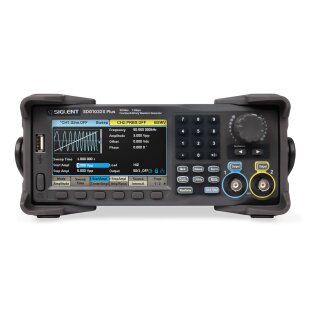

Siglent SDG1032X Plus Waveform Generator

Siglent SDG1032X Plus Waveform Generator

Artno.: SL3-110320
GTIN: 726634158923
Manufacturers: Siglent

Arbitrary waveform generator, 2 Channels,30 MHz Bandwidth, 1 GSa/s (4X Interpolation) Sample Rate, 16-bit Resolution, 4.3" Screen Display,USB Host / USB Device / LAN / GPIB (optional) Interface, Web Interface

439,00 €

incl. 19% VAT

(368,91 € excl. VAT)

On stock

Description
Product Reviews

SIGLENT's SDG1000X Plus series dual-channel function/arbitrary waveform generator, with a maximum bandwidth of 60MHz, has excellent sampling system indicators of 1GSa/s sampling rate and 16-bit vertical resolution. Based on the traditional DDS technology, the innovative TrueArb and EasyPulse technologies are used to overcome the inherent defects of DDS technology in outputting arbitrary waves and square waves/pulses. It can provide users withhigh-fidelity, low-jitter signals. In addition, SDG1000X Plus also provides PRBS pattern generation, sequence wave output, and dual pulse output functions to meet a wider range of application needs.SDG1062X PlusSDG1032X Plus

Key Features

Dual channel, maximum output frequency 60 MHz, maximum output amplitude 20 Vpp
1 GSa/s digital-to-analog converter sampling rate, 16-bit vertical resolution
Innovative TrueArb technology, based on a point-by-point architecture, supports any 24pts ~ 8Mpts Arb waveform with a sampling rate in range of 1 μSa/s ~ 250 MSa/s
Supports sequence wave playback function, maximum storage depth per channel 8 Mpts
Innovative EasyPulse technology, capable of generating lower jitter Square or Pulse waveforms, brings a wide range and extremely high precision in pulse width and rise/fall times adjustment
Multi-pulse output function can be used to measure the switching parameters of power equipment and evaluate its dynamic characteristics
Supports PRBS up to 40 Mbps
Plenty of analog and digital modulation types: AM, DSB-AM, FM, PM, FSK, ASK, PSK and PWM
Sweep and Burst function
Harmonic function
Waveform Combining function
High precision Frequency Counter
196 built-in arbitrary waveforms
Built-in WebServer supports instrument control via web browser
Standard interfaces: USB Host, USB Device (USBTMC), LAN (VXI-11)
4.3" LCD display

Model Overview

	SDG1062X Plus	SDG1062X	SDG1032X Plus	SDG1032X	SDG1022X Plus
Bandwidth	60 MHz		30 MHz		25 MHz
Channels	2
Sample Rate	1 GSa/s (4X Interpolation)	150 MSa/s	1 GSa/s (4X Interpolation)	150 MSa/s	1 GSa/s (4X Interpolation)
Vertical Resolution	16-bit	14-bit	16-bit	14-bit	16-bit
Arbitrary waveform length	8 Mpts/CH	16 Kpts	8 Mpts/CH	16 Kpts	8 Mpts/CH
Max. amplitude	±10 V
Display	4.3" display, 480 x 272 x RGB
Interfaces	Standard: USB Host, USB Device, LAN Optional: GPIB (USB-GPIB adaptor)	Standard: USB Host, USB Device, LAN	Standard: USB Host, USB Device, LAN Optional: GPIB (USB-GPIB adaptor)	Standard: USB Host, USB Device, LAN	Standard: USB Host, USB Device, LAN Optional: GPIB (USB-GPIB adaptor)

Package Contents

Device
Power Cord
USB Cable
Quick Start Guide
Calibration Certificate

Features

High-performance Sampling System

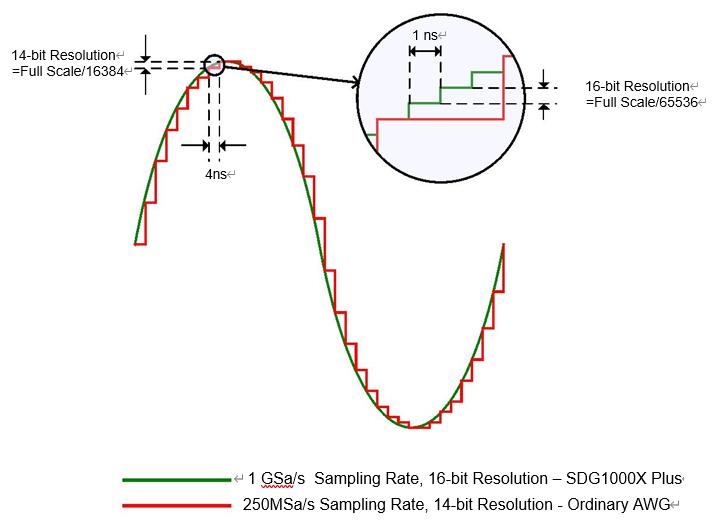

Benefiting from a 1GSa/s and 16-bit sampling system, SDG1000X Plus achieves extremely high accuracy performance in both time domain and amplitude, which resultsin more accurately reconstructed waveforms and lower distortion

Innovative EasyPulse Technology

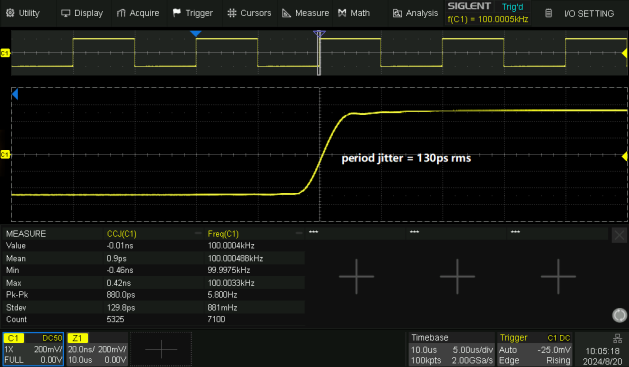

When a Square/Pulse waveform is generated by DDS, there will be a one-clock-jitter if the sampling rate is not an integer-related multiple of the output frequency. SDG1000X Plus EasyPulse technology successfully overcomes this weakness in DDS designs and helps to produce low jitter Square/Pulse waveforms

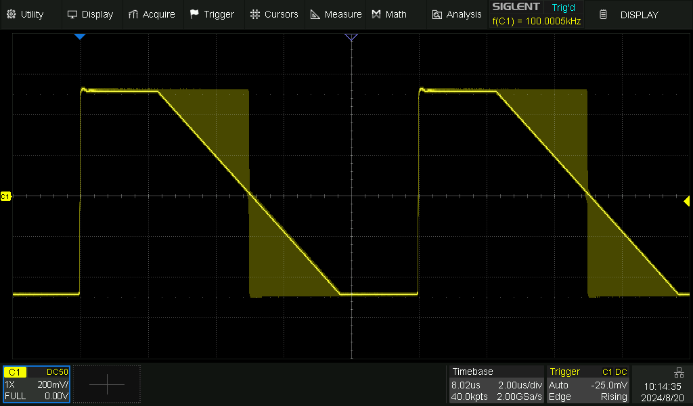

Independent Rise/Fall Time Adjustment

The rise/fall times can be set independently to the minimum of 10ns at any frequency and to the maximum of 22.4s. The adjustment step is as small as 100 ps

Pulse Width Adjustment

The Pulse width can be fine-tuned to the minimum of 19.4ns with the adjustment step as small as 100ps

Innovative TrueArb Technology

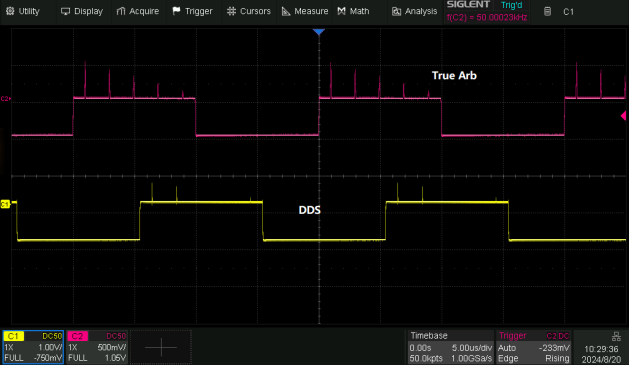

For arbitrary waveforms, TrueArb not only has all the advantages of traditional DDS, but also eliminates the probability that DDS may cause serious jitter and distortion. TrueArb generates arbitrary waveforms point by point, never skips any point so that it can reconstruct all the details of the waveform as defined

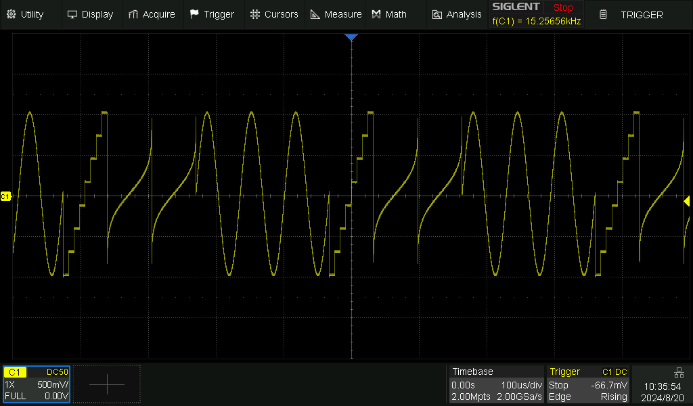

Powerful arbitrary wave generation capability and sequence playback function

Provides sequence playback function to easily meet various testing needs. Maximum waveform storage depth reaches 8 Mpts/ch. Easily set the number of cycle times for each waveform and the order of waveform playback. Three operating modes: continuous, burst and single. Three trigger sources are available: "internal", "external" and "manual"

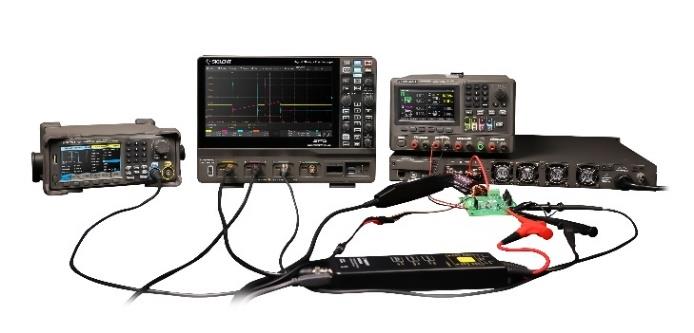

Built-in multi-pulse output function

Built-in dual pulse output function, combined with siglent's scilloscope, can quickly measure the switching parameters and dynamic characteristics of power devices without the need for host computer software. Supports up to 30 pulses, each pulse can be independently set with pulse edge and positive and negative pulse width

PRBS pattern output

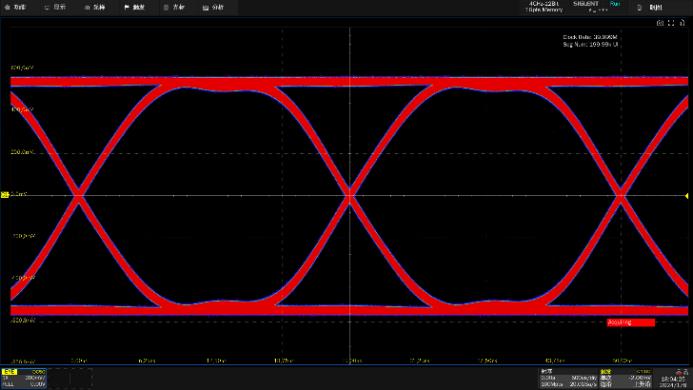

Provides PRBS3 ~ PRBS32 multiple pattern outputs, the rate is arbitrarily adjustable between 10-6 bps ~ 40 Mbps, and the edge is arbitrarily adjustable between 10 ns ~ 1us. Quickly select preset level logic such as TTL, LVCMOS, LVPECL and LVDS. Differential mode allows you to easily set up two channels as a differential pair output

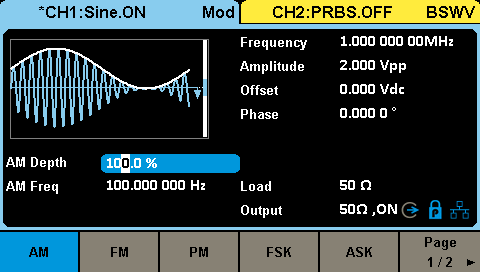

Modulation

Rich modulation functions, supporting commonly used AM/DSB-AM/ FM/ PM/ ASK/ FSK/ PSK/ PWM modulation methods. Optional internal and external modulation sources

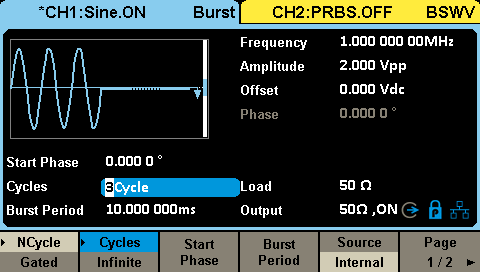

Burst

Supports two Burst modes: N cycle and Gating. Three trigger sources are available: internal, external and manual

Sweep

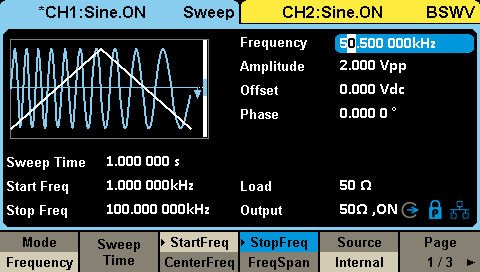

Supports two sweep modes, frequency and amplitude, to easily implement frequency sweep and amplitude sweep tests. Supports two sweep type: linear and log, and three sweep directions of up, down and up_down. Three trigger sources are available: internal, external and manual

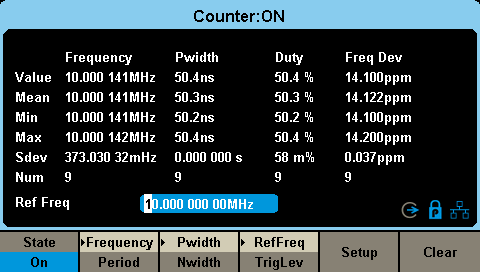

Frequency Counterm

High-precision frequency counter, capable of testing the frequency range of 0.1Hz~200MHz

Built-in WebServer

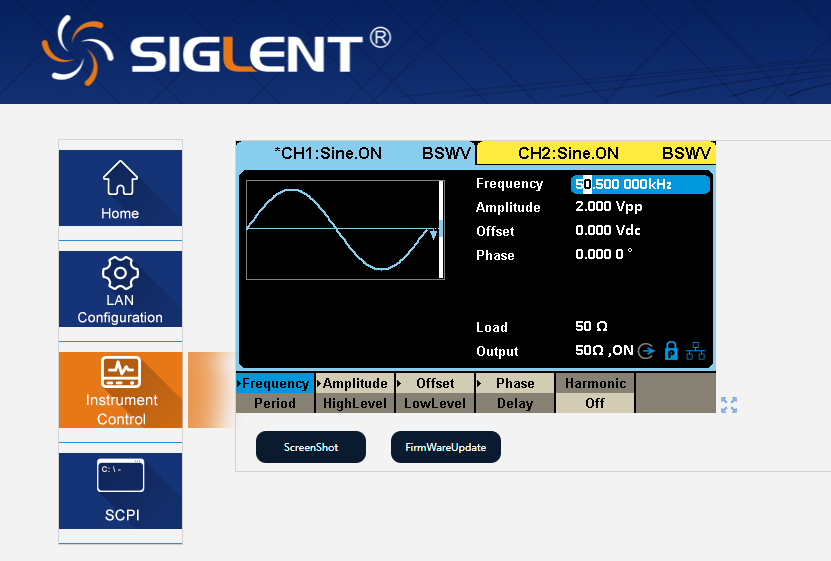

Supports instrument control through a web browser, allowing testing tasks to be completed remotely

More Features
