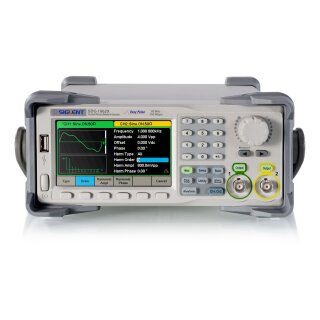

Siglent SDG1032X Waveform Generator

(1 Reviews)

Artno.: 105012-001
GTIN: 4251459241339
Manufacturers: Siglent

Arbitrary waveform generator, 2 channels, 30 MHz Bandwidth, 150 MSa/s Sample Rate, 14-bit Resolution, 4,3" Display

from

335,00 €

incl. 19% VAT

(281,51 € excl. VAT)

Special Price!: 343,00 €

On stock
Delivery status: EOL

Configure + Buy

Accessories

Siglent SDG-RMK Rack Mount Kit: Bracket for 19" rack mount for Siglent signal generator series SDG800, SDG1000, SDG1000X, SDG2000X, SDG6000X
148,00 € Item details

Quantity: 1

Siglent SPA1010 Signal Amplifier - Item currently out of stock: Signal amplifier for Siglent SDG signal generators, output power up to 10W
427,00 € Item details

Quantity: 1

Breve-Tufvassons PFS160/230/230V Isolation Transformer...

Breve-Tufvassons Isolation Transformer 230V, 160VA: Portable safety and isolation transformer with European plug and outlet, 230 VAC, IP44, insulation class II, for galvanic isolation
84,90 € Item details

Quantity: 1

Galvanic Isolation

Breve-Tufvassons Isolation Transformer 230V, 160VA: Portable safety and isolation transformer with European plug and outlet, 230 VAC, IP44, insulation class II, for galvanic isolation
84,90 € Item details

Quantity: 1

Breve-Tufvassons PFS250/230/230V Isolation Transformer...

Breve-Tufvassons Isolation Transformer 230V, 250VA: Portable safety and isolation transformer with European plug and outlet, 230 VAC, IP44, insulation class II, for galvanic isolation
99,00 € Item details

Quantity: 1

Your configuration

incl. 19% VAT

(281,51 € excl. VAT)

SIGLENT's SDG1000X is a series of dual-channel function and arbitrary waveform generators designed to offer both high performance and versatility. With specifications including a maximum bandwidth of up to 60 MHz, a sampling rate of 150 MSa/s, and 14-bit vertical resolution, the SDG1000X delivers exceptional signal quality for a wide range of applications.

The proprietary EasyPulse™ technology addresses the limitations of traditional DDS generators in generating pulse waveforms. Additionally, the dedicated square wave generator produces high-frequency square waveforms up to 60 MHz with minimal jitter. These advanced features enable the SDG1000X to provide users with a diverse array of high-fidelity, low-jitter signals to meet the evolving demands of complex and varied applications.

Key Features

Dual-channel, with bandwidth up to 60 MHz, and amplitude up to 20 Vpp
150 MSa/s sampling rate, 14-bit vertical resolution, and 16 kpts waveform length
Innovative EasyPulse™ technology, capable of generating lower-jitter pulse waveforms with a wide range and extremely high precision in pulse width and rise/fall times adjustment
Special circuit for Square wave function, generating square waves up to 60 MHz with jitter less than 300 ps + 0.05 ppm of period
Various analog and digital modulation types: AM, DSB-AM, FM, PM, FSK, ASK, PSK, and PWM
Sweep and Burst functions
Harmonics Generator function
Waveform Combining function
High precision Frequency Counter
Standard interfaces: USB Host, USB Device (USBTMC), LAN (VXI-11)
4.3'' TFT-LCD display

Shipping weight:	4,44 kg

Average item rating

All reviews:

How do reviews work?

Total entries: 1

Good arbitrary waveform generator
Excellent build quality: Solid chassis, good quality of plastics and rubbers. Precise keys, return stable feedback, fonts and characters are clearly legible, adequately large and defined screen. The compact form factor and the possibility of stacking multiple Siglent instruments are interesting.

Well structured user interface, intuitive to use, with the right amount of settings. In the menus there is already a great variety of periodic signals and not to be used immediately.

Also convenient is the possibility of setting the output impedance to 50 Ohm or high, so as to avoid problems with reflectometry in the cables. The instrument can be controlled remotely via USB and LAN. With the included software you can draw any kind of arbitrary signal.

The vertical resolution is 14 bits or 16384 points. The sampling frequency is equal to 150 Ms / s that is 150 million samples every second, the maximum settable frequency is equal to 30Mhz with an offset equal to 20Vpp. For the price range they are great features.

The tool also includes a precision frequency meter which comes in handy in many cases.

Coupled with the Siglent oscilloscope, it can also be used to create Bode diagrams that are excellent for seeing the frequency response of filters or other signal processing circuits.

I have been using it for a long time and it is very stable, not too loud fan.

The only negative note:
I would have liked to have also found a pair of BNC cables and maybe a pair of T.

Rick

, 08.12.2020
