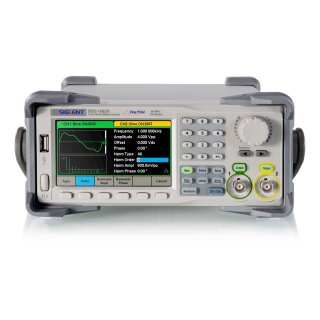

Siglent SDG1062X Waveform Generator

SIGLENT's SDG1000X is a series of dual-channel function and arbitrary waveform generators designed to offer both high performance and versatility. With specifications including a maximum bandwidth of up to 60 MHz, a sampling rate of 150 MSa/s, and 14-bit vertical resolution, the SDG1000X delivers exceptional signal quality for a wide range of applications.

The proprietary EasyPulse™ technology addresses the limitations of traditional DDS generators in generating pulse waveforms. Additionally, the dedicated square wave generator produces high-frequency square waveforms up to 60 MHz with minimal jitter. These advanced features enable the SDG1000X to provide users with a diverse array of high-fidelity, low-jitter signals to meet the evolving demands of complex and varied applications.

Key Features

• Dual-channel, with bandwidth up to 60 MHz, and amplitude up to 20 Vpp
• 150 MSa/s sampling rate, 14-bit vertical resolution, and 16 kpts waveform length
• Innovative EasyPulse? technology, capable of generating lower-jitter pulse waveforms with a wide range and extremely high precision in pulse width and rise/fall times adjustment
• Special circuit for Square wave function, generating square waves up to 60 MHz with jitter less than 300 ps + 0.05 ppm of period
• Various analog and digital modulation types: AM, DSB-AM, FM, PM, FSK, ASK, PSK, and PWM
• Sweep and Burst functions
• Harmonics Generator function
• Waveform Combining function
• High precision Frequency Counter
• Standard interfaces: USB Host, USB Device (USBTMC), LAN (VXI-11)
• 4.3'' TFT-LCD display
