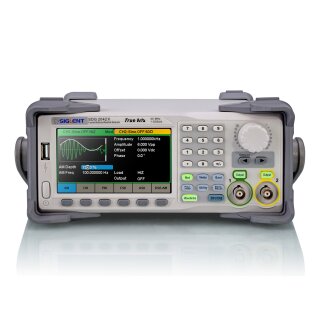

Siglent SDG2122X Waveform Generator

The SIGLENT SDG2000X series comprises dual-channel function/arbitrary waveform generators, boasting specifications of up to 120MHz maximum bandwidth, 1.2GSa/s sampling rate, and 16-bit vertical resolution. Utilizing proprietary TrueArb & EasyPulse techniques, these generators overcome the limitations inherent in traditional DDS generators when generating arbitrary, square, and pulse waveforms. With these advancements, the SDG2000X delivers high-fidelity, low-jitter signals, meeting the evolving demands of complex and extensive applications.

Key Features

• Dual-channel, 120MHz maximum bandwidth, 20Vpp maximum output amplitude, high fidelity output with 80dB dynamic range
• High-performance sampling system with 1.2GSa/s sampling rate and 16-bit vertical resolution. No detail in your waveforms will be lost
• Innovative TrueArb technology, based on a point-by-point architecture, supports any 8pts~8Mpts Arb waveform with a sampling rate in range of 1µSa/s~75MSa/s
• Innovative EasyPulse technology, capable of generating lower jitter Square or Pulse waveforms, brings a wide range and extremely high precision in pulse width and rise/fall times adjustment
• Plenty of analog and digital modulation types: AM, DSB-AM, FM, PM, FSK,ASK?PSK and PWM
• Sweep and Burst function
• Harmonic function
• 196 built-in arbitrary waveforms
• High precision Frequency Counter
• Standard interfaces: USB Host, USB Device(USBTMC), LAN(VXI-11)
• Optional interface: GPIB
• 4.3'' touch screen display for easier operation

Package Contents

• Device
• Power Cordl
• USB-Kabel
• Quick Start Guide
• BNC Coaxial Cable
