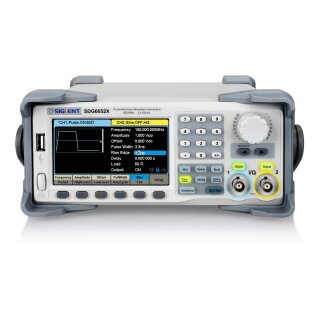

Siglent SDG6022X Function Generator

SIGLENT's SDG6000X series presents dual-channel Pulse/Arbitrary Waveform Generators boasting up to 500 MHz bandwidth, 2.4 GSa/s sample rate, and 16-bit resolution. With proprietary TrueArb & EasyPulse technology, it surpasses the limitations of traditional DDS generators. The SDG6000X can generate Noise, IQ signals, and PRBS patterns, catering to a wide range of applications with high fidelity and low jitter signals.

Key Features

• Dual-Channel, 500 MHz maximum bandwidth, 20 Vpp maximum output amplitude, high fidelity output with 80 dB dynamic range
• High-performance sampling system with 2.4 GSa/s sampling rate and 16-bit vertical resolution
• Multi-function signal generator, meeting requirements in wide range
• Sweep and Burst function
• Harmonics function
• Waveform Combining function
• Channel Coupling, Copy and Tracking function
• 196 built-in arbitrary waveforms
• High precision Frequency Counter
• Standard interfaces include:
  • USB Host
  • USB Device (USBTMC)
  • LAN (VXI-11, Socket, Telnet)
• Optional Interface: GPIB
• 4.3'' touch screen display for easier operation

Package Contents

• Device
• Power Cordl
• USB-Kabel
• Quick Start Guide
• BNC Coaxial Cable
