Description

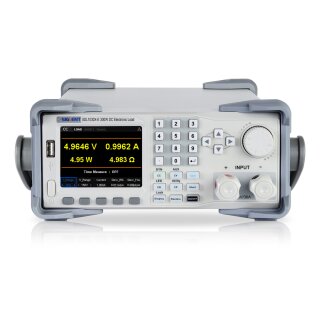

SDL1000X/SDL1000X-E series Programmable DC Electronic Load has a 3.5 inch TFT-LCD display, a user-friendly interface and superb performance specifications. The SDL1020X/SDL1020X-E models feature an input range of 150 V/30 A 200 W while the SDL1030X/SDL1030X-E have an input range of 150 V/30 A 300 W. The SDL1000X series leads with measurement resolution of 0.1 mV/0.1 mA and the base SDL1000X-E series resolution is 1 mV/1 mA and adjustable current rise times from 0.001 A/µs to 2.5 A/µs. For remote communication and control, the SDL series includes RS232/USB/LAN interface types. The SDL1000X series delivers stability over a wide range of applications and can meet all kinds of testing requirements. including: Power, battery/handheld device design, industry, LED lighting, automotive electronics, and aerospace.
Model Overview
| SDL1020X | SDL1020X-E | SDL1030X | SDL1030X-E | ||
|---|---|---|---|---|---|
| Input | 150 V/30 A 200 W | 150 V/30 A 300 W | |||
| Mode | CC/CV/CR/CP | ||||
| CC Dynamic mode frequency | 25 kHz | ||||
| Measuring speed | up to 500 kHz | ||||
| Current Slew Rate | 0.001 A/us .. 2.5 A/us | ||||
| Min. readback resolution | 0.1 mV, 0.1 mA | 1 mV, 1 mA | 0.1 mV, 0.1 mA | 1 mV, 1 mA | |
Box Contents
- Power Supply
- Power Cord
- USB Cable
- Quick Start Guide
| Shipping weight: | 4.75 Kg |
Datasheet (EN)
