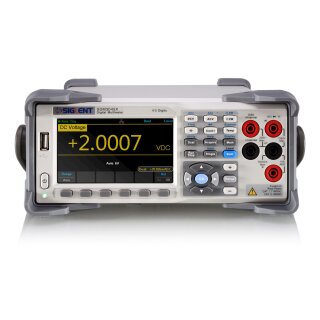

Siglent SDM3045X Benchtop Multimeter
Description
SDM3045X is a 4½ digit digital (60000 count) multimeter incorporating a dual-display and is especially well suited for the needs of high-precision, multifunction and automatic measurement.
| Basic Measurement Functions | |
|---|---|
| DC Voltage | 600 mV - 1000 V |
| DC Current | 600 μA - 10 A |
| AC Voltage | True-RMS, 600 mV - 750 V |
| AC Current | True-RMS, 60 mA - 10 A |
| 2/4-Wire Resistance | 600 Ω - 100 MΩ |
| Capacitance | 2 nF - 10000 μF |
| Continuity Test | Range is fixed at 2 kΩ |
| Diode Test | Adjustable range is 0-4 V |
| Frequency Measurement | 20 Hz - 500 KHz |
| Period Measurement | 2 μs - 0.05 s |
| Temperature | Support for TC and RTD sensor |
| Math Functions | Max, Min, Average, Standard Deviation, dBm/dB, Relative Measurement, Pass/Fail Histogram, Trend Chart |
User-friendly Design
- 4.3" TFT-LCD, 480*272
- Support dual display, Chinese and English Menu
- Built-in front panel accessible help system
- File management (support for U-disc and local storage)
Main Features
- Real 4½ digit (66000 count) readings resolution
- Up to 150 rdgs/s measurement speed
- True-RMS AC Voltage and AC Current measuring
- 1 Gb NAND flash size, Mass storage configuration files and data files
- Built-in cold terminal compensation for thermocouple
- With easy, convenient and flexible PC software: EasyDMM
- Standard interface: USB Device, USB Host, LAN (Optional Accessories: USB-GPIB Adapter)
- USB & LAN remote interfaces support common SCPI command set
- Compatible with other popular DMMs on the market
Application Fields
- Research Laboratory
- Development Laboratory
- Detection and Maintenance
- Calibration Laboratory
- Automatic Production Test
Package Contents
- Device
- Power Cord
- USB Cable
- Quick Start Guide
- Calibration Certificate
- Test Leads and Alligator Clips
| Shipping weight: | 4.86 Kg |
Datasheet (EN)
