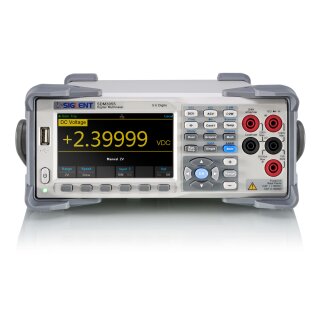

Siglent SDM3055 Benchtop Multimeter

Digital benchtop multimeter (DMM), 5 1/2 digits (240.000 counts), 0,015% basic precision, 150 Sa/s sample rate

Variant

558 €SDM3055830 €SDM3055-SC (incl. SC1016 12 Channel Multiplexer)

from 534.00 € incl. 19% VAT

448.74 € excl. VAT

Free shipping within Germany

On stock

Please select a model.

Description

The SDM3055/SDM3055-SC is a digital multimeter designed with 5½ digits readings resolution and dual-display, especially fitting to the needs of high-precision, multifunction and automatic measurement.

User-Friendly Design

4.3" TFT-LCD, 480*272 display
Supports dual-display, Chinese and English Menu
Built-in front panel accessible help system
File management (support for U-disc and local storage)

Basic Measurement Functions
DC Voltage	200 mV - 1000 V
DC Current	200 μA - 10 A
AC Voltage	True-RMS, 200 mV - 750 V
AC Current	True-RMS, 20 mA - 10 A
2/4-Wire Resistance	200 Ω - 100 MΩ
Capacitance	2 nF - 10000 μF
Continuity Test	Range is fixed at 2 kΩ
Diode Test	Adjustable range is 0 - 4V
Frequency Measurement	20 Hz - 1 MHz
Period Measurement	1 μs - 0.05 s
Temperature	Support for TC and RTD sensor
Math Functions	Max, Min, Average, Standard Deviation, dBm/dB, Relative Measurement, Pass/Fail Histogram, TrendChat

Main Features

Real 5½ digits readings resolution (240,000 counts)
Up to 150 rdgs/s measurement speed
True-RMS AC Voltage and AC Current measuring
1 Gb Nand flash size, Mass storage configuration files and data files
Built-in cold terminal compensation for thermocouple temperature measurements
With easy, convenient and flexible PC software: EasyDMM
Standard interfaces: USB Host, LAN (Optional Accessories USB-GPIB Adapter)
Support remote control operation via SCPI commands. Compatible with commands of main stream multimeters
Scanner Card SC1016 (Only for SDM3055-SC)
