Siglent SDS1052DL+ Oscilloscope

Artno.: 103011-001
GTIN: 4251459240400
Manufacturers: Siglent

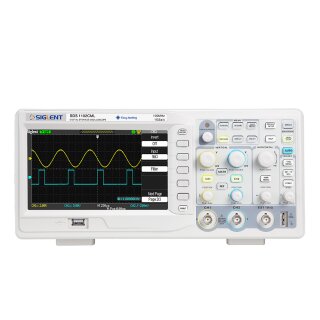

Digital storage oscilloscope (DSO), 2 channels, bandwidth 50 MHz, memory depth 32 Kpts, 7" WVGA display

from

308,00 €

incl. 19% VAT

(258,82 € excl. VAT)

On stock

Configure + Buy

Accessories

Siglent SDS1000X-E-RMK Rack Mount Kit: Bracket for 19" rack mount for Siglent oscilloscope series SDS1000X-E, SDS2000X-E
148,00 € Item details

Quantity: 1

Siglent BAG-S1 Carry Bag for Siglent SDS1000 Oscilloscopes

Bolstered Carry Pouch (SDS1000-SC2): Bolstered carry bag for SDS1000, SDS1000X(+) and SDS1000X-E oscilloscope series
70,00 € Item details

Quantity: 1

Galvanic Isolation

Breve-Tufvassons PFS160/230/230V Isolation Transformer...

Breve-Tufvassons Isolation Transformer 230V, 160VA: Portable safety and isolation transformer with European plug and outlet, 230 VAC, IP44, insulation class II, for galvanic isolation
84,90 € Item details

Quantity: 1

Breve-Tufvassons PFS250/230/230V Isolation Transformer...

Breve-Tufvassons Isolation Transformer 230V, 250VA: Portable safety and isolation transformer with European plug and outlet, 230 VAC, IP44, insulation class II, for galvanic isolation
99,00 € Item details

Quantity: 1

Calibration

ISO Calibration: 125,00 € Item details

Quantity: 1

Your configuration

incl. 19% VAT

(258,82 € excl. VAT)

The SDS1000+ series comprises dual-channel universal digital oscilloscopes with bandwidths of 50 MHz, 100 MHz, and 150 MHz. Up to 2 million points of memory depth guarantee high waveform resolution on the time axis and still allow for the capture of longer signals.

With its 7-inch TFT screen, it provides ample space for signal display at 800 x 480 pixels. Together with a sampling rate of up to 1 GSa/s, the SDS1000+ series supports 32 parameter measurements and common mathematical operations to accelerate complex or repetitive measurements.

Model Overview

Model	SDS1052DL+	SDS1102CML+	SDS1152CML+
Bandwidth	50 MHz	100 MHz	150 MHz
Sampling Rate (max.)	500 MSa/s	1 GSa/s
Channels	2+EXT
Memory Depth (max.)	32 Kpts	2 Mpts
Trigger Types	Edge, Pulse, Video, Slope, Alternate
Interfaces	USB Host, USB Device, LAN, Pass/Fail
Probes	2 pieces PB470	2 pieces PP510	2 pieces PP215
Display	7-inch TFT LCD (800x480 pixels)

Features

Memory Depth up to 2 Mpts

With the Long Memory mode, you can use a higher sampling rate to capture the signal in detail and then zoom in on the interesting signal range.

Automatic Measurements

The SDS1000+ series supports measurement types for voltage, time, and delay with a total of 32 different parameters. Up to five measurements and all measurement parameters can be displayed simultaneously on the screen.

Zoom Function

The zoom function can expand a segment of the waveform, allowing the user to not only have an overview of the entire signal but also a detailed view of the enlarged segment. The zoom function is a convenient way to find and analyze a specific signal segment in detail.

Pass/Fail Function

With easy-to-set-up user-defined test templates, the oscilloscope compares the currently measured signal with the template mask, making it suitable for long-term signal monitoring or automated production testing.

Mathematical Functions

The SDS1000+ series offers 5 mathematical functions: +, -, *, /, FFT. It is also possible to display the signal and FFT diagram separately or together.

Digital Recording

The SDS1000+ series can record signals in real-time and without dead time. It provides 7 MB of integrated memory or an externally connected USB memory for data recording. Recorded data can be displayed and analyzed on the screen.
