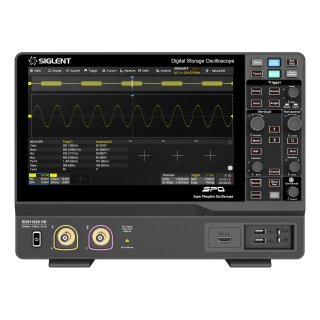

Siglent SDS1102X HD Oscilloscope
Artno.: SL2-511020
Digital storage oscilloscope, 2 Channels, Bandwidth 100 MHz, Sample Rate 2 GS/s, Memory Depth 100 MPts, Resolution 12-bit / 15-bit (ERES), Waveform Update Rate 100 000 wfrm/s / 500 000 wfrm/s (Sequence Mode), Display 10.1" Touch Screen, Interface USB Host / USB Device / LAN, Serial Trigger/Decoder I2C / SPI / UART / CAN / LIN, SPO Technology, Web Interface, Touch Screen, 50 MHz Signal Generator (optional), 16-Channel Logic Analyzer (optional)

from 1,141.00 € incl. 19% VAT
958.82 € excl. VAT
On stock

Shipping time: 1 - 3 business days

Your configuration
  • Demo board with various test signals including sine/square wave, AM, burst and serial bus signals
    On stock
    Shipping time: 1 - 3 business days
    Demo board with various test signals including sine/square wave, AM, burst and serial bus signals
  • Single channel USB signal generator module with isolated output, 25 MHz bandwidth, 125 MHz sample rate, 16 KPts max. wave length. For Siglent oscilloscope series SDS800X HD, SDS1004X-E, SDS1000X HD, SDS2000X-E, SDS3000X HD, SDS5000X, SDS6000A, incl. license unlock
    On stock
    Shipping time: 1 - 3 business days
    Single channel USB signal generator module with isolated output, 25 MHz bandwidth, 125 MHz sample rate, 16 KPts max. wave length. For Siglent oscilloscope series SDS800X HD, SDS1004X-E, SDS1000X HD, SDS2000X-E, SDS3000X HD, SDS5000X, SDS6000A, incl. license unlock
  • Logic probe, 16 channels, 500 MSa/s max. waveform capture rate, 14 Mpts/ch max. record length, for Siglent SDS1004X-E and SDS2000X-E series oscilloscopes, incl. license unlock
    On stock
    Shipping time: 1 - 3 business days
    Logic probe, 16 channels, 500 MSa/s max. waveform capture rate, 14 Mpts/ch max. record length, for Siglent SDS1004X-E and SDS2000X-E series oscilloscopes, incl. license unlock
  • For use with voltage and current probes and the Power Analysis option available on the 4 channel units of the SDS2000X, SDS2000X Plus, SDS5000X, and SDS6000A series oscilloscopes.
    On stock
    Shipping time: 1 - 3 business days
    For use with voltage and current probes and the Power Analysis option available on the 4 channel units of the SDS2000X, SDS2000X Plus, SDS5000X, and SDS6000A series oscilloscopes.
1,141.00 € incl. 19% VAT *

Description

The Siglent SDS1000X HD series high resolution digital storage oscilloscopes are based on 2 GSa/s, 12-bit Analog-Digital Converters and front ends with excellent noise floor performance. They are available in bandwidths from 70 to 200 MHz, have maximum record length of 100 Mpts, and display 2/4 analog channels + 16 digital channels mixed signal analysis ability.

The SDS1000X HD series employs Siglent SPO technology with a maximum waveform capture rate of up to 120,000 wfm/ s (normal mode, up to 500,000 wfm/s in Sequence mode), 256-level intensity grading display function plus a color temperature display mode. It also employs an innovative digital trigger system with high sensitivity and low jitter. The trigger system supports multiple powerful triggering modes including serial bus triggering. Tools such as History waveform recording, Search and Navigate functions, Mask Test, Bode Plot, Power Analysis and allow for extended waveform records to be captured, stored, and analyzed. An impressive array of measurement and math capabilities, options for a 25 MHz arbitrary waveform generator, as well as serial decoding are also features of the SDS1000X HD.

The large 10.1" display capacitive touch screen supports multi-touch gestures, with the addition of user-friendly UI design, can greatly improve the operation efficiency. It also supports mouse control, and remote web control over LAN.

Model Overview

SDS1104X HD SDS1102X HD SDS1204X HD SDS1202X HD
Channels 4 + EXT 2 + EXT 4 + EXT 2 + EXT
Bandwidth 100 MHz 200 MHz
Vertical Resolution 12-bit
Sample Rate(Max.) One channel mode:2 GSa/s
Two channel mode:1 GSa/s
Four channel mode:500 MSa/s
Memory Depth(Max.) One channel mode: 100 Mpts/ch
Two channel mode: 50 Mpts/ch
Four channel mode: 25 Mpts/ch
Waveform Capture Rate(Max.) Normal mode: 120 000 wfm/s
Sequence mode:500 000 wfm/s
Trigger Types Edge, Slope, Pulse width, Window, Runt, Interval, Dropout, Pattern, Video, Qualified, Nth edge, Delay, Setup/Hold time, Serial
Serial Trigger/Decoder Standard: I2C, SPI, UART, CAN, LIN, CAN FD(Decode Only), FlexRay(Decode Only)
SDS1104X HD SDS1102X HD SDS1204X HD SDS1202X HD
Measurement Functions More than 50 parameters, supports statistics with histogram, trend, and tracking
Math Functions 4 Traces
2 MPts FFT, Filter, +, -, ×, ÷, ∫dt, d/dt, √, Identity, Negation, Absolute, Sign, ex, 10x, ln, lg, Interpolation, MaxHold, MinHold, ERES, Average, Formula Editor
Data Processing Search, Navigate, History, Mask Test, Counter, Bode plot, and Power Analysis
Logic Analyzer (optional) Channels: 16; Sample Rate: up to 1 GSa/s; Record Length per Channel: 10 MPts
USB-AWG-Modul(Option) One channel, 25 MHz, sample rate of 125 MHz, wave length of 16 kpts, isolated output
Interfaces USB 2.0 Host x3, USB 2.0 Device, 10 M / 100 M LAN, External trigger, Auxiliary output (TRIG OUT, PASS/FAIL), SBUS (Siglent MSO)
Supplied Probes (Standard) Passive probe PP510 for each channel Passive probe PP215 for each channel
Display 10.1" TFT-LCD with capacitive touch screen (1024x600)

Package Contents

  • Device
  • Probes
  • Power Cord
  • USB Cable
  • Quick Start Guide
  • Calibration Certificate

Features

12-bit High Resolution
Vertical and horizontal zoom, coupled with a substantial memory depth, fully leverage the 12-bit ADC resolution. Engineers can simultaneously observe the overall waveform and its detailed aspects.
Reduced Noise Floor
Merely 70 μVrms at a bandwidth of 200 MHz
High Precision in DC Gain
0.5% Accuracy
Excellent User Interface and User Experience
The device features a 10.1" display with a resolution of 1024x600, enhancing visual clarity and detail. It is equipped with a capacitive touch screen that supports multitouch gestures. Users can move or scale waveform traces swiftly with finger-touch movements, significantly improving operational efficiency. Additionally, a built-in WebServer enables remote control functionality via a web page over LAN. The device also supports the use of an external mouse and keyboard, offering versatile control options.
High Waveform Update Rate
With a waveform update rate of up to 120,000 wfm/s, the oscilloscope can easily capture unusual or low-probability events. In Sequence mode, the waveform capture rate can reach 500,000 wfm/s.
Deep Record Length
Using hardware-based Zoom technique and record length of up to 100 Mpts, users can select a slower timebase without compromising the sample rate, and then quickly zoom in to focus on the area of interest.
Multiple Trigger Functions
Edge, Slope, Pulse width, Video, Windows, Runt, Interval, Dropout, Pattern, Qualified, Nth edge, Delay, Setup/Hold time, and Serial trigger.
Advanced Math Function
The device supports basic operations (addition, subtraction, multiplication, division), as well as FFT, integration, differentiation, square root, and more. A Formula Editor is available for complex calculations, with four math traces provided. It features hardware-accelerated FFT for up to 2 Mpts, ensuring high-frequency resolution and quick refresh rates. The FFT function offers various window functions to meet diverse spectrum measurement needs and includes three modes (Normal, Average, Max hold) for different power spectrum observations. It also supports auto peak detection and markers.
Measurements of a Variety of Parameters
Parameter measurements include 4 categories: horizontal, vertical, miscellaneous, and CH delay providing a total of 50+ different types of measurements. Measurements can be performed within a specified gate period. Measurements on Math, Reference, and History frames are supported.
Parameter Statistics Function
Statistics display current, maximum, minimum values, standard deviation, and mean. A histogram shows parameter probability distributions. Trend and Track illustrate parameter values over time. For horizontal parameters like period, all results from a frame are analyzed, enhancing statistics speed and enabling frame-wise distribution observation with Histogram and Track.
History Mode
History function can record up to 80,000 frames of waveforms. The recording is executed automatically so that the customer can playback the history waveforms at any time to observe unusual events and quickly locate the area of interest using the cursors or measurements.
Sequence Mode
Segmented memory collection will store the waveform into multiple memory segments (up to 80,000) and each segment will store a triggered waveform as well the dead time information. The interval between segments can be as small as 2 μs. All of the segments can be played back using the History function.
Search and Navigate
The oscilloscope can search events specified by the user in a frame. Events flagged by the Search can be recalled automatically using Navigate. It can also navigate by time (delay position) and history frames.
Serial Bus Decode
Display the decoded characters through the events list. Bus protocol information can be quickly and intuitively displayed in tabular form. I2C, SPI, UART, CAN, LIN are supported.
Hardware-based High-Speed Mask Test Function
The oscilloscope utilizes a hardware-based Mask Test function, performing up to 80,000 Pass / Fail decisions each second. It is easy to generate user-defined test templates to provide trace mask comparisons, making it suitable for long-term signal monitoring or automated production line testing. Built-in Mask Editor application helps to create custom masks.
Bode Plot
SDS800X HD can control the USB AWG module or control an independent Siglent SDG instrument, scan a devices amplitude and phase frequency response, and display the data as a Bode Plot. There is also a Vari-level Mode for accurately measuring Power Supply Control Loop Response (PSRR).
