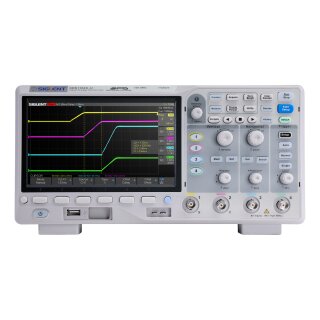

Siglent SDS1104X-U Oscilloscope

Artno.: SL2-411040
Manufacturers: Siglent

Digital storage oscilloscope (DSO), 4 Channels, Bandwidth 100 MHz, Sample Rate 1 GS/s, Memory Depth 14 MPts, Resolution 8-bit / 11-bit (ERES), Waveform Update Rate 100 000 wfrm/s / 400 000 wfrm/s (Sequence Mode), Display 7", Interface USB Host / USB Device / LAN, Serial Trigger/Decoder I2C / SPI / UART / CAN / LIN, SPO-Technologie

from

427,00 €

incl. 19% VAT

(358,82 € excl. VAT)

On stock (short supply)

Configure + Buy

SIGLENT's SDS1000X-U Series Super Phosphor Oscilloscope is available in a bandwidth of 100 MHz. It has a maximum sample rate of 1 GSa/s and a maximum record length of 14 Mpts. For ease-of-use, the most commonly used functions can be accessed with its user-friendly front panel design. The SDS1000X-U series employs a new generation of SPO (Super -Phosphor Oscilloscope) technology that provides excellent signal fidelity and performance. It comes with an innovative digital trigger system with high sensitivity and low jitter, and a waveform capture rate of 400,000 frames/sec (sequence mode).

The SDS1000X-U also employs a 256-level intensity grading display function and a color temperature display mode not found in other models in this class. SIGLENT's latest oscilloscope offering supports multiple powerful triggering modes including serial bus triggering. Serial bus decoding for IIC, SPI, UART, CAN, and LIN bus types are included.

The X-U models also include History waveform recording and sequential triggering that enable extended waveform recording and analysis. Another powerful addition is the new 128k point FFT math function that gives the SDS1000X-U very high frequency resolution when observing signal spectra. The new digital design includes a hardware co-processor that delivers measurements quickly and accurately without slowing acquisition and front-panel response. SDS1000X-U also supports searching and navigating. The features and performance of SIGLENT’s new SDS1000X-U cannot be matched anywhere else in this price class.

Model Overview

	SDS1104X-U	SDS1104X-E
Channels	4
Bandwidth	100 MHz
Sample Rate	1 GSa/s (1 Channel) 500 MSa/s (2 Channels) 250 MSa/s (4 Channels)	1 GSa/s (1/2 Channels) 500 MSa/s (4 Channels)
Memory Depth	14 MPts/CH (1 Channel) 7 MPts/CH (2 Channels) 3.5 MPts/CH (4 Channels)	14 MPts/CH (1/2 Channels) 7 MPts/CH (4 Channels)
Waveform Capture Rate	100 000 wfm/s (Normal Mode) 400 000 wfm/s (Sequence Mode)
Vertical Resolution	8-bit up to 11-bit in ERES Mode
Serial Trigger/Decoder	I2C, SPI, UART, CAN, LIN (Standard)
Bode Plot
Web Browser Remote Control

	SDS1104X-U	SDS1104X-E
Trigger Types	Edge, Slope, Pulse, Window, Runt, Interval, Dropout, Pattern, Video, Serial
Data Processing	Search&Navigate, History, Mask Test, Counter
Measurement Functions	More than 38 parameters, supports statistics with histogram
Math Functions	FFT, +, -, ×, ÷, d/dt, ∫dt, √, Average, ERES
FFT	128 KPts	1 MPts
Logic Analyzer (optional)		16 Channels, 500 MSa/s Sample Rate, 14 MPts Record Length per Channel
Signal Generator (optional)		1 Channel, 25 MHz Bandwidth, 125 MSa/s Sample Rate, 16 KPts Memory Depth
USB WLAN Adapter (optional)

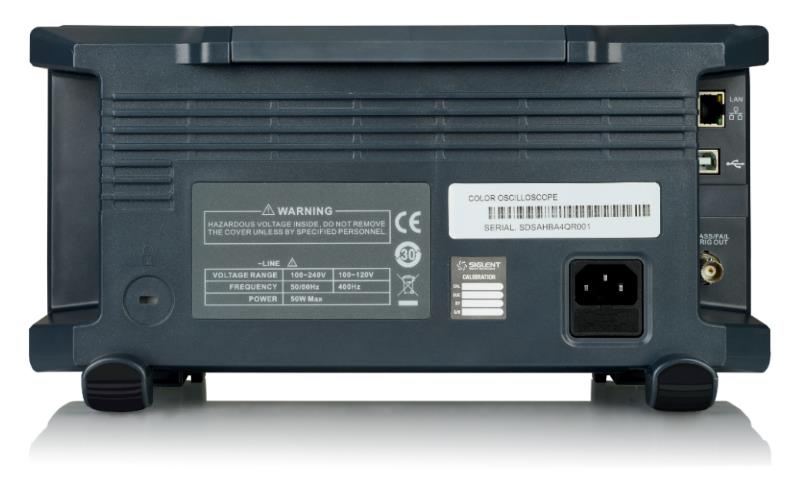

Interfaces	USB Host, USB Device, LAN, Auxiliary Output (TRIG OUT, PASS/FAIL)	USB Host, USB Device, LAN, External Trigger, Auxiliary Output (TRIG OUT, PASS/FAIL), SBUS
Display	7" TFT-LCD (800x480 Pixel)
Supplied Probes	4x PP510 (100 MHz)

Extended Specifications

Package Contents

Device
Power Cord
USB Cable
Quick Start Guide
Probes

Features

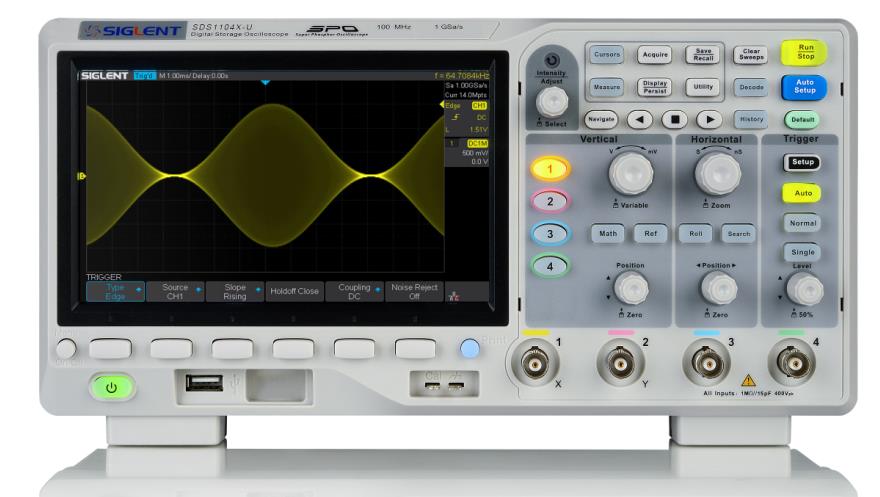

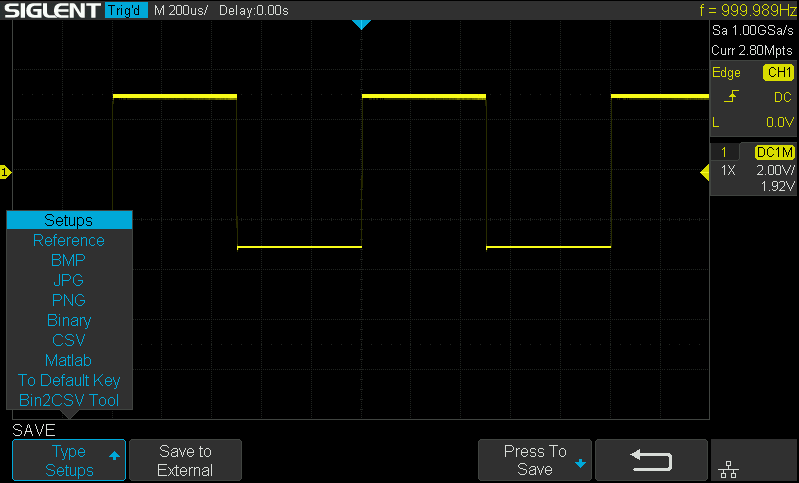

7" Display and 10 One-Button Menus

The 7" display offers a resolution of 800x480 Pixels. Most commonly used functions are accessible using 10 different one-button operation keys: Auto Setup, Default, Cursor, Measure, Roll, History, Persist, Clear Sweep, Zoom, Print.

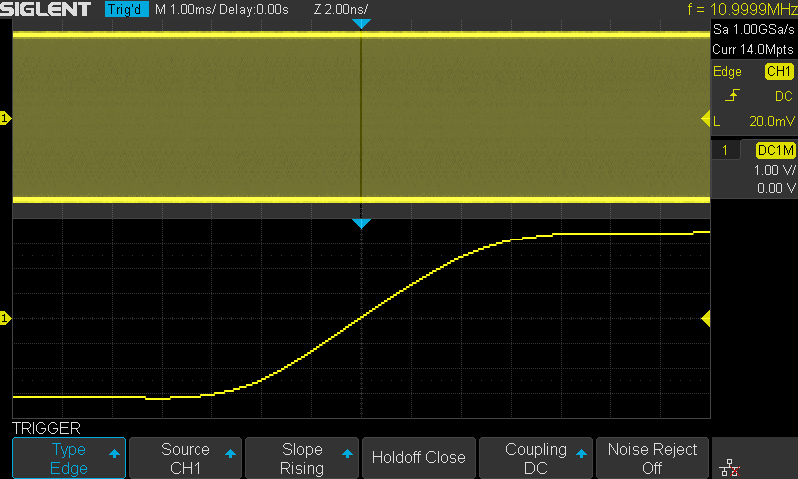

14 MPts Record Length

Using hardware-based Zoom technologies and max record length of up to 14 Mpts, users are able to oversample to capture for longer time periods at higher resolution and use the zoom feature to see more details within each signal.

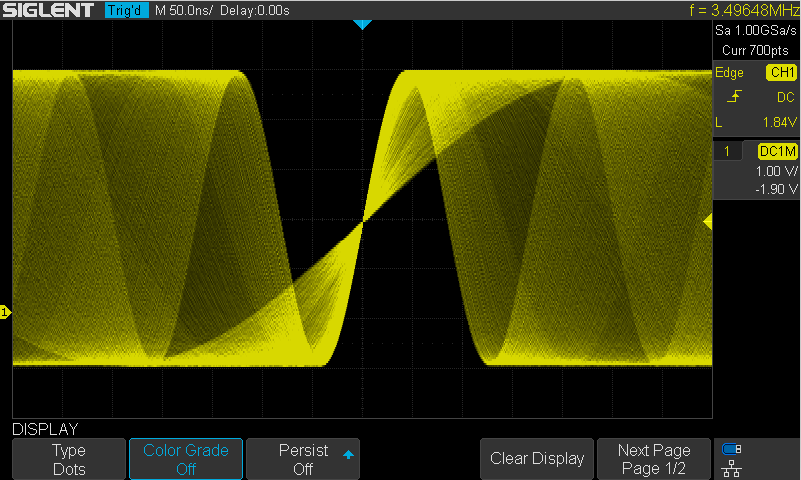

Waveform Capture Rate up to 400,000 wfrm/s

With a waveform capture rate of up to 400,000 wfm/s in sequence mode, the oscilloscope can easily capture unusual or low-probability events.

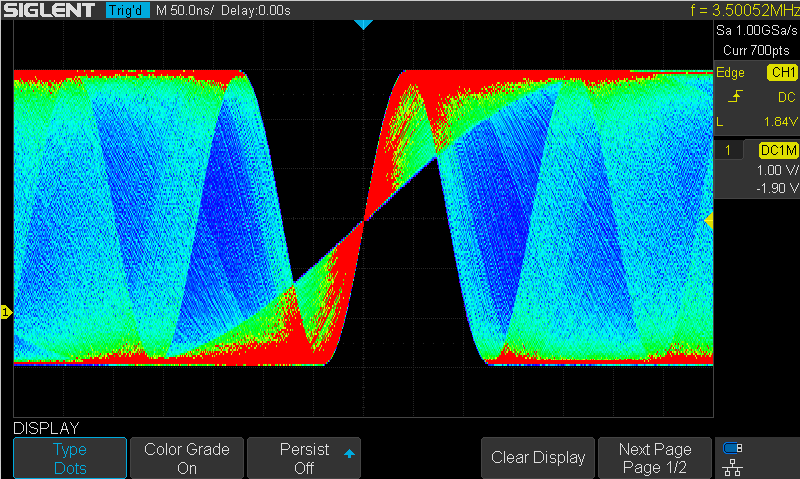

256-Level Intensity Grading and Color Temperature Display

SPO display technology provides fast refresh rates. The resulting intensity-graded trace is brighter for events that occur with more frequency and dims when the events occur with less frequency. The color temperature display uses red colors for events that occur more frequently, while blue is used to mark points that occur less frequently.

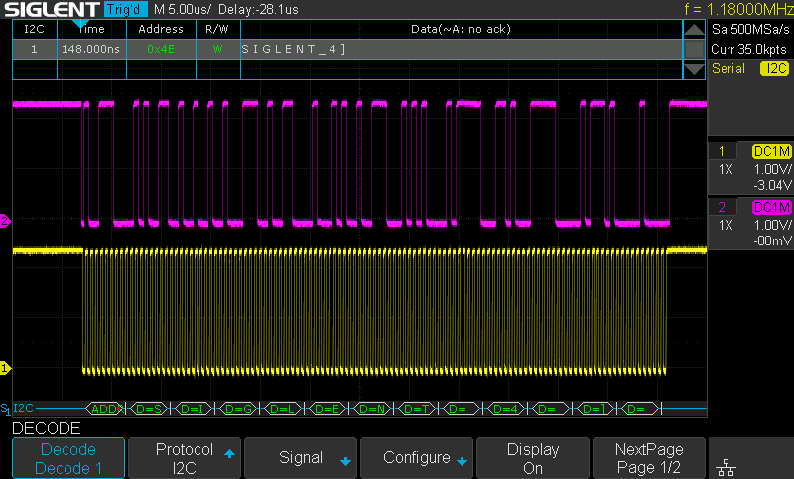

Serial Bus Decoding as Standard

The SDS1000X-U displays the decoding through the events list. Bus protocol information can be quickly and intuitively displayed in a tabular format.

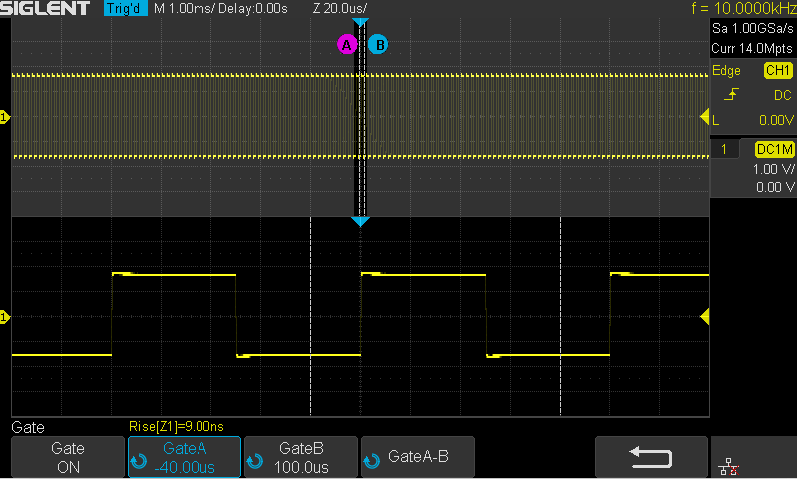

Gate and Zoom Measurement

Through Gate and Zoom measurement, the user can specify an arbitrary interval of waveform data analysis and statistics. This helps avoid measurement errors that can be caused by invalid or extraneous data, greatly enhancing measurement validity and flexibility.

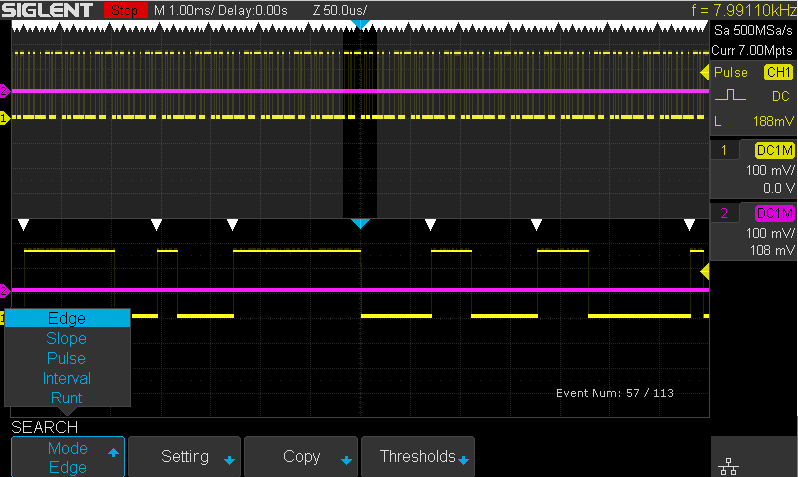

Search and Navigate

The SDS1000X-U can search events specified by the user in a frame. It can also navigate by time (delay position) and historical frames.

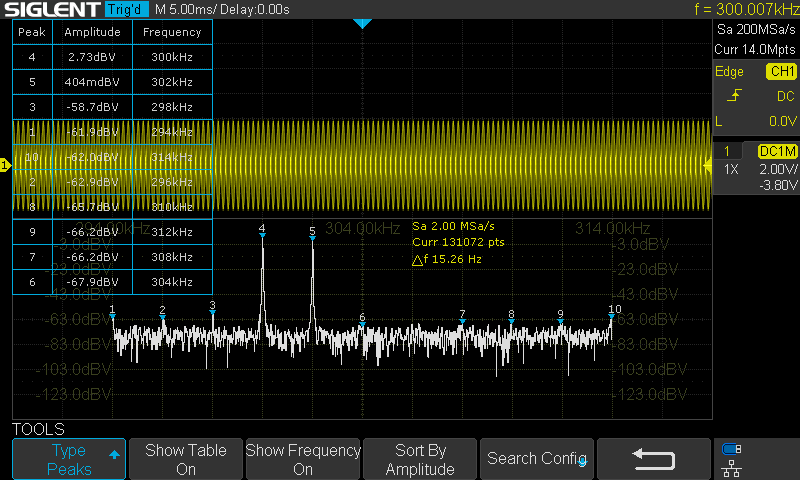

128kPts FFT Processing

The new math co-processor enables FFT analysis of incoming signals using up to 128k samples per waveform. This provides high frequency resolution with a fast refresh rate. The FFT function also supports a variety of window functions so that it can adapt to different spectrum measurement needs.

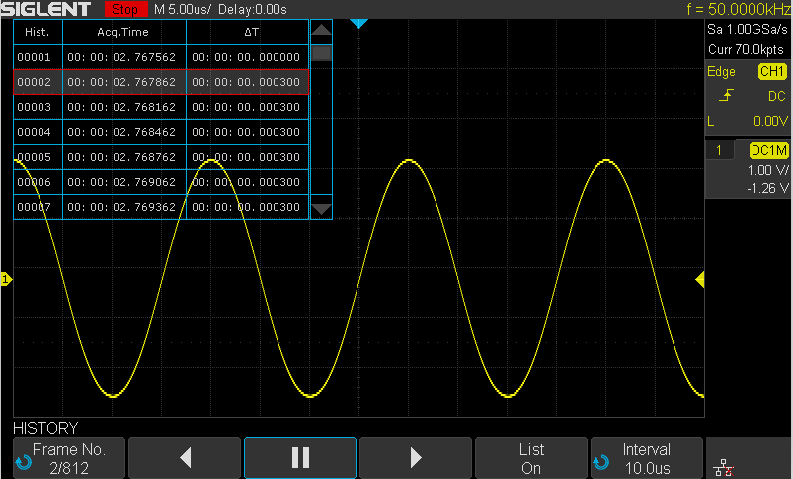

History Waveforms and Segmented Acquisition

Playback the latest triggered events using the history function. Segmented memory collection will store trigger events in up to 80,000 memory segments, each segment will store triggered waveforms and timestamp of each frame.

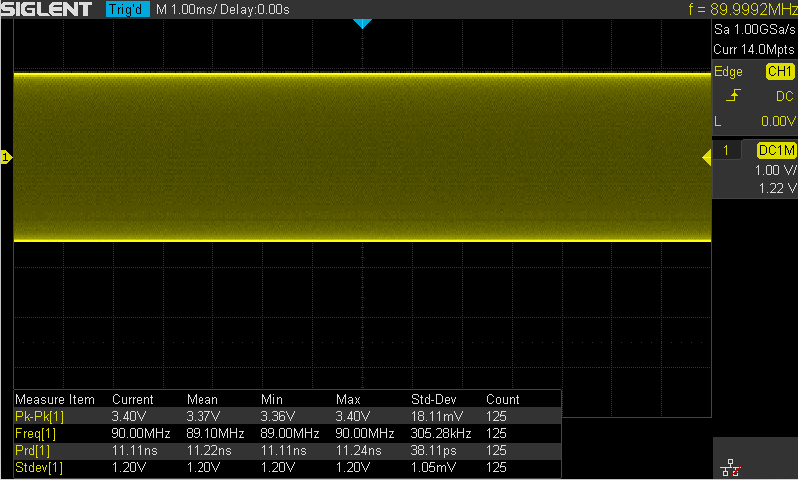

Powerful Measurement Functions

The SDS1004X-U can measure all sampled data points up to 14 MPts. This ensures the accuracy of measurements while the math co-processor decreases measurement time and increases ease-of-use.

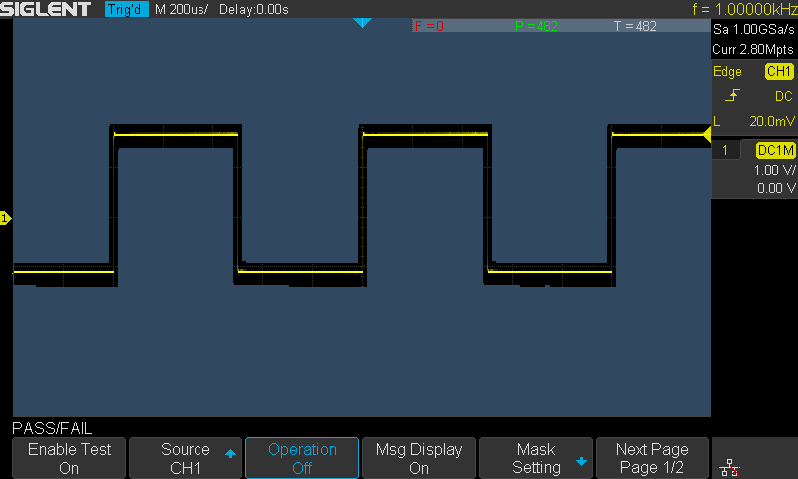

Fast Hardware-Based Pass/Fail Mask Test

The SDS1000X-U utilizes a hardware-based Pass/Fail function, performing up to 40,000 Pass/Fail decisions each second. Easily generate user defined test templates provide trace mask comparison making it suitable for longterm signal monitoring or automated production line testing.
