Siglent SDS6000Pro-I2S Trigger/Decoding License
Description
The SDS6000Pro-I2S option for the SDS6000A series digital oscilloscopes adds support for I2S (Inter-IC Sound) protocol decoding and analysis, commonly used in digital audio systems. Key features include:

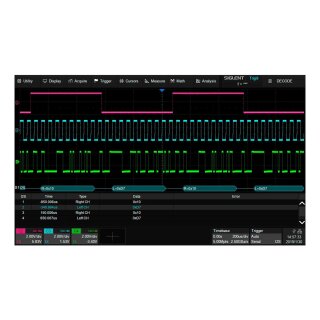

- I2S Protocol Decoding: Decodes I2S signals, displaying audio data, word select, and clock signals in a human-readable format.
- Advanced Triggering: Provides triggering on specific I2S events, such as frame start, data, or clock transitions, for accurate signal capture and analysis.
- Real-Time Audio Data Analysis: Enables real-time monitoring and analysis of audio data transmission between digital audio components.
- Time-Correlated Analysis: Allows the correlation of I2S audio signals with other analog or digital signals for comprehensive system debugging.
This option is ideal for engineers working on digital audio applications, such as audio processors, DACs, and other sound-related systems.
