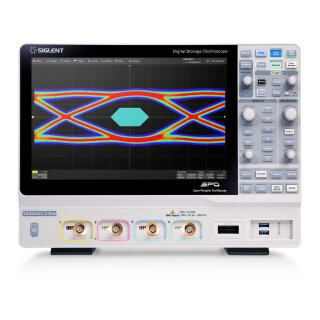

Siglent SDS6104A Oscilloscope

Introducing the SDS6000A series Digital Storage Oscilloscopes by SIGLENT. These high-performance oscilloscopes are available in three bandwidth options: 2 GHz, 1 GHz, and 500 MHz. With a sample rate of 5 GSa/s (10 GSa/s ESR Enhanced Sample Rate) per channel and a maximum record length of 500 Mpts/ch, the SDS6000A series offers powerful performance for various applications.

Utilizing Siglent's SPO technology, these oscilloscopes provide exceptional waveform capture capabilities with a maximum capture rate of up to 170,000 wfm/s (normal mode) and an impressive 750,000 wfm/s in Sequence mode. The series features a 256-level intensity grading display function and a color temperature display mode, enhancing visual clarity and accuracy.

The SDS6000A series incorporates an innovative digital trigger system with high sensitivity and low jitter. It supports multiple triggering modes, including serial bus triggering, ensuring precise and reliable measurements.

These oscilloscopes come equipped with a range of useful tools, such as History waveform recording, Search and Navigate functions, Mask Test, Bode Plot, Power Analysis, and Eye/Jitter Analysis, allowing users to capture, store, and analyze waveform data efficiently.

Additionally, the SDS6000A series offers impressive measurement and math capabilities, including options for a 25 MHz arbitrary waveform generator and serial decoding, enhancing versatility and utility.

Featuring a large 12.1" capacitive touch screen display, the SDS6000A series ensures a user-friendly experience. The display supports multi-touch gestures, providing an intuitive operation. It also supports mouse control and remote web control over LAN, offering convenience and flexibility.

Choose the SDS6000A series Digital Storage Oscilloscopes for unparalleled performance, advanced features, and ease of use in your measurement and analysis tasks.

Model Overview

Package Contents

• Device
• Probes
• Power Cord
• USB Cable
• Quick Start Guide
• Calibration Certificate

Features

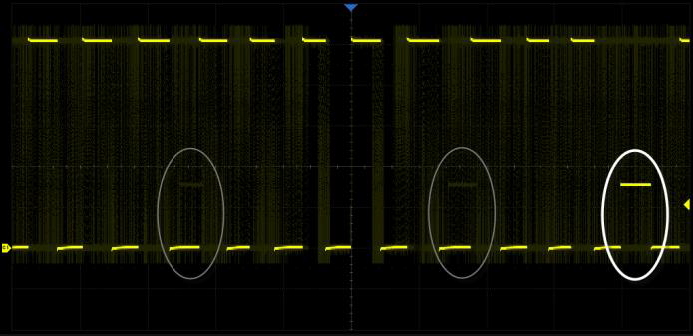

High Waveform Update Rate

With a waveform update rate of up to 170,000 wfm/s, the oscilloscope can easily capture unusual or low low-probability events. In Sequence mode mode, the waveform capture rate can reach 750,000 wfm/s.

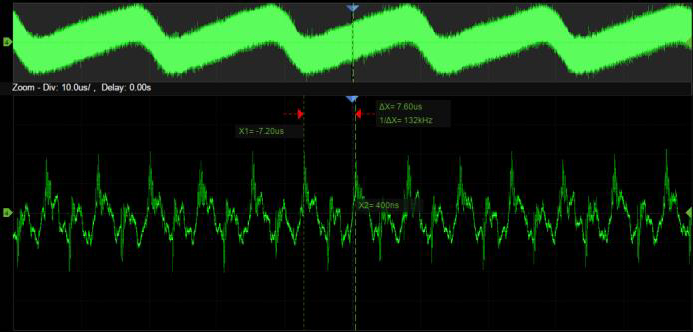

Deep Record Length

Using hardware-based Zoom technique and record length of up to 500 Mpts, users can select a slower timebase without compromising the sample rate, and then quickly zoom in to focus on the area of interest.

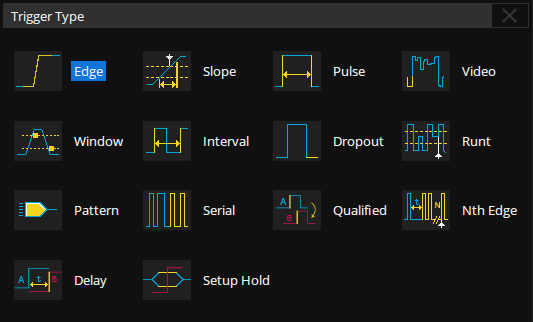

Multiple Trigger Functions

Edge, Slope, Pulse, Video, Windows, Runt, Interval, Dropout, Pattern, Qualified, Nth edge, Setup/hold, Delay and serial trigger.

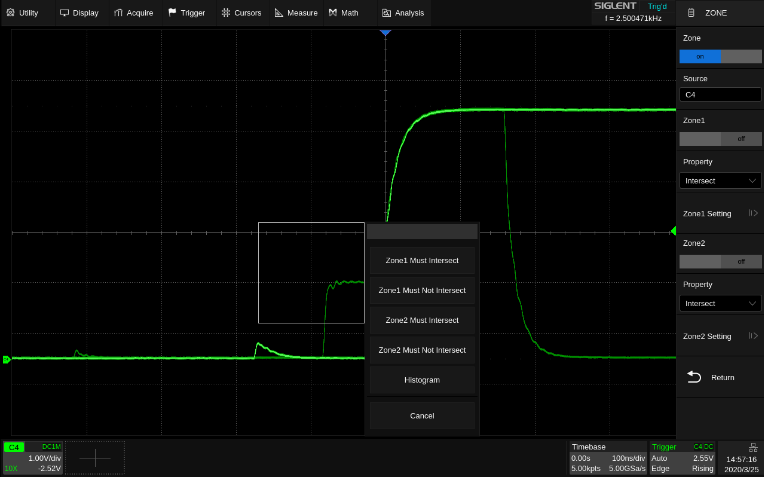

Trigger Zone

Trigger Zone is available for advanced triggering.

Advanced Math Function

In addition to the traditional (+, -, X, /) operations, FFT, integration, differential, square root, and more are supported. Formula Editor is available for more complex operations. 4 math traces are available.

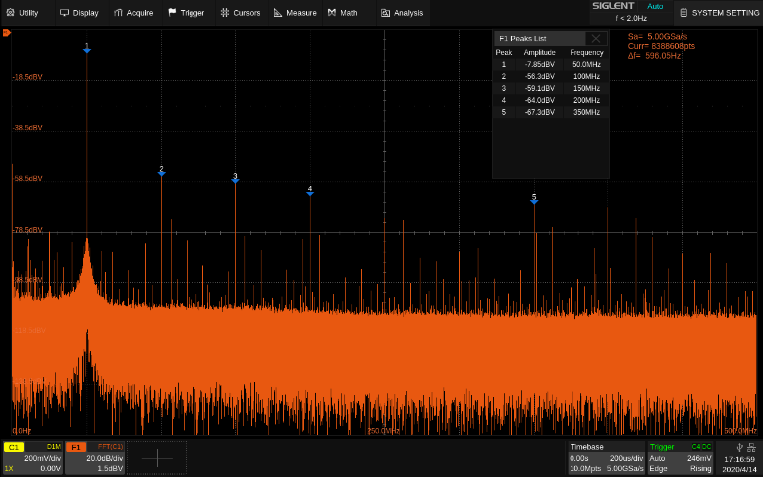

8 MPts FFT

Hardware-accelerated FFT supports up to 8 Mpts operation. This provides high-frequency resolution with a fast refresh rate. The FFT function also supports a variety of window functions so that it can adapt to different spectrum measurement needs. Three modes (Normal, Average, and Max hold) can satisfy different requirements for observing the power spectrum. Auto peak detection and markers are supported.

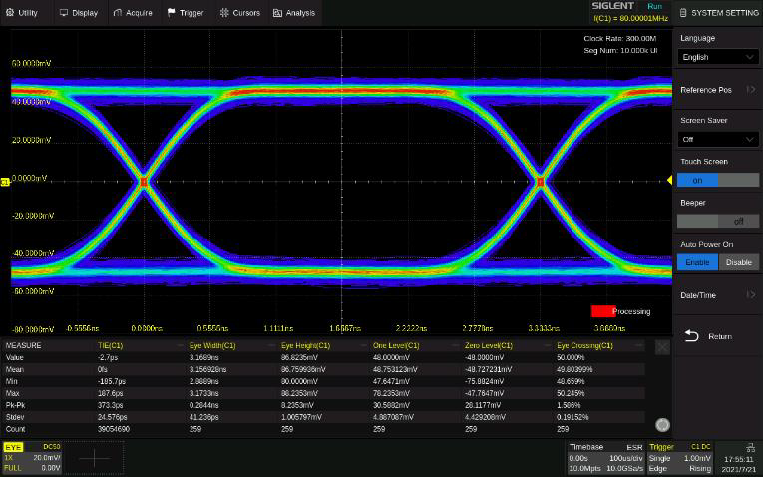

Eye/Jitter Analysis

Supports eye diagram and jitter analysis/measurement. It can automatically extract the embedded reference clock from serial data and create the eye diagram. Measurement on multiple eye/jitter parameters is provided. Mask test on eye diagrams is supported.

Measurements of a Variety of Parameters

Parameter measurements include 4 categories: horizontal, vertical, miscellaneous, and CH delay providing a total of 50+ different types of measurements. Measurements can be performed within a specified gate period. Measurements on Math, Reference, and History frames are supported.

Parameter Statistics Function

Statistics show the current value, maximum value, minimum value, standard deviation, and mean value of up to 12 parameters simultaneously. A histogram is available to show the probability distribution of a parameter. Trend and Track are available to show the parameter value vs. time.

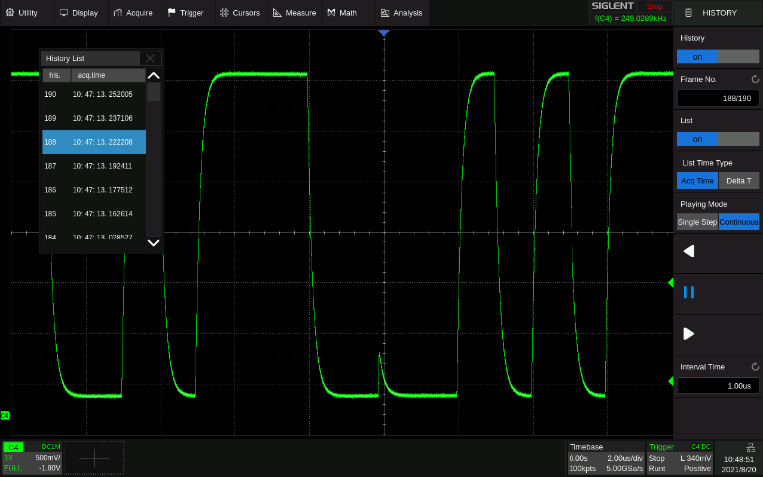

History Mode

History function can record up to 80,000 frames of waveforms. The recording is executed automatically so that the customer can playback the history waveforms at any time to observe unusual events and quickly locate the area of interest using the cursors or measurements. The failed frames of the Mask Test can be stored as history.

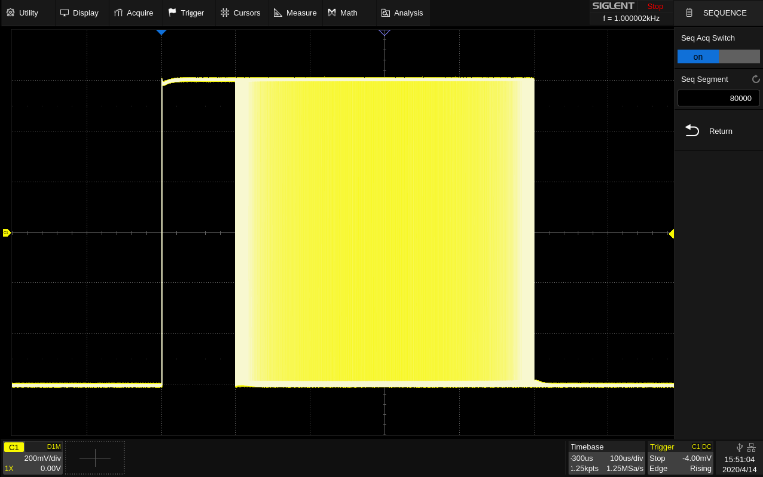

Sequence Mode

Segmented memory collection will store the waveform into multiple memory segments (up to 80,000) and each segment will store a triggered waveform as well the dead time information. The interval between segments can be as small as 1.3 ?s. All of the segments can be played back using the History function.

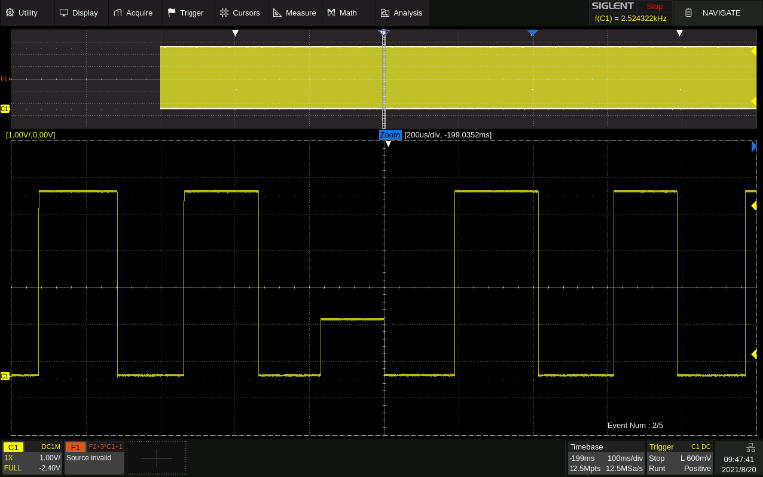

Search and Navigate

The oscilloscope can search events specified by the user in a frame. Events flagged by the Search can be recalled automatically using Navigate. It can also navigate by time (delay position) and history frames.

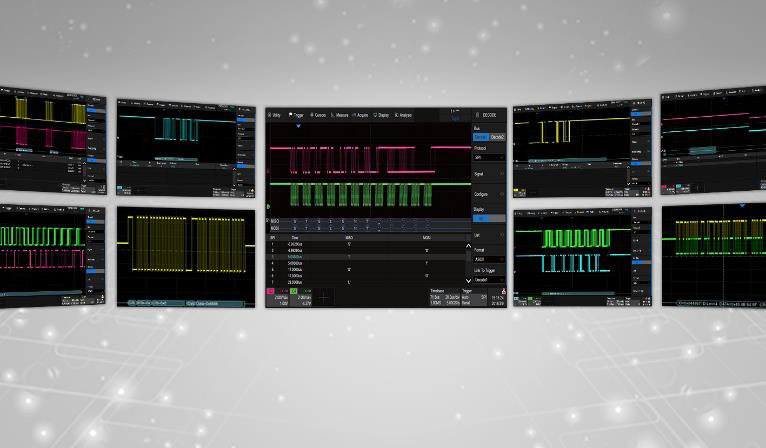

Serial Bus Decode

Display the decoded characters through the events list. Bus protocol information can be quickly and intuitively displayed in tabular form. I2C, SPI, UART, CAN, LIN, CAN FD, FlexRay, I2S, MIL-STD-1553B, SENT, and Manchester are supported.

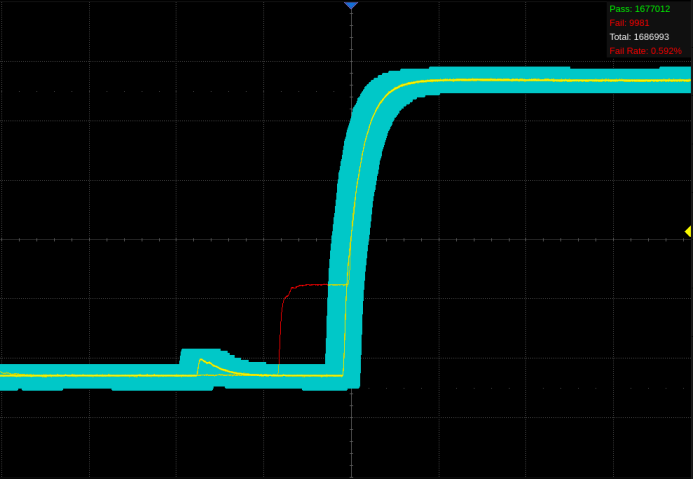

Hardware-based High Speed Mask Test Function

The oscilloscope utilizes a hardware-based Mask Test function, performing up to 18,000 Pass / Fail decisions each second. It is easy to generate user-defined test templates to provide trace mask comparisons, making it suitable for long-term signal monitoring or automated production line testing.

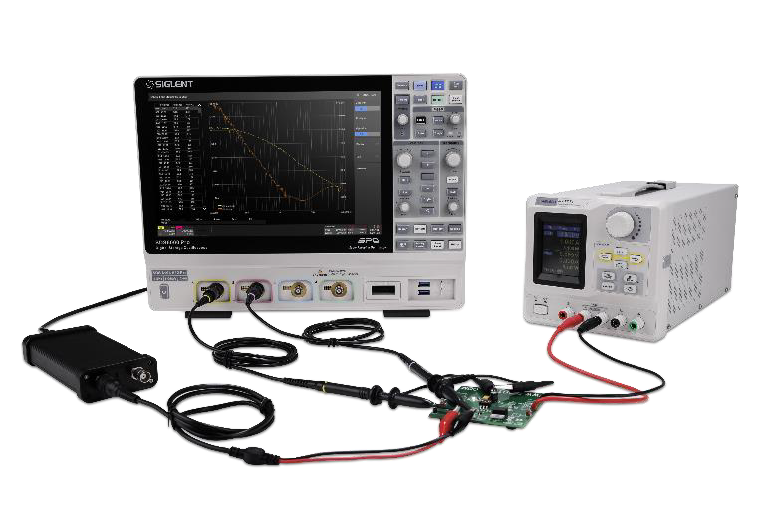

Bode Plot

The oscilloscope can control the isolated USB AWG module or a stand-alone SIGLENT SDG generator, to scan the amplitude and phase-frequency response of the DUT, and display the data as a Bode Plot. This makes it possible to replace expensive network analyzers in some applications.

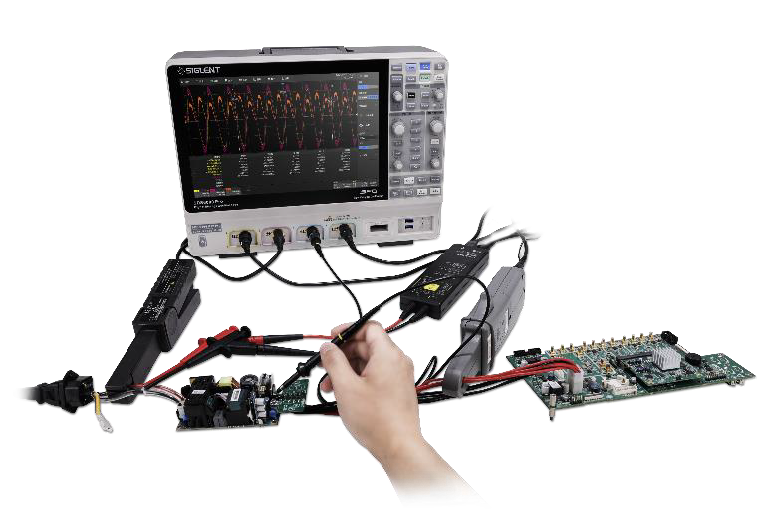

Power Analysis (Optional)

The Power Analysis option provides a full suite of power measurements and analysis, which greatly improve the measurement efficiency in switching power supplies and power devices design.

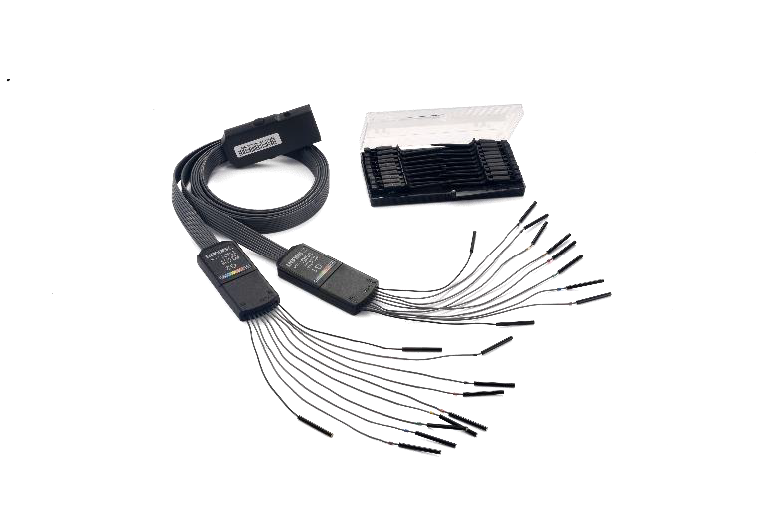

Digital Channels / MSO (Optional)

Four analog channels plus 16 digital channels enable users to acquire and trigger the waveforms then analyze the pattern, simultaneously with one instrument.

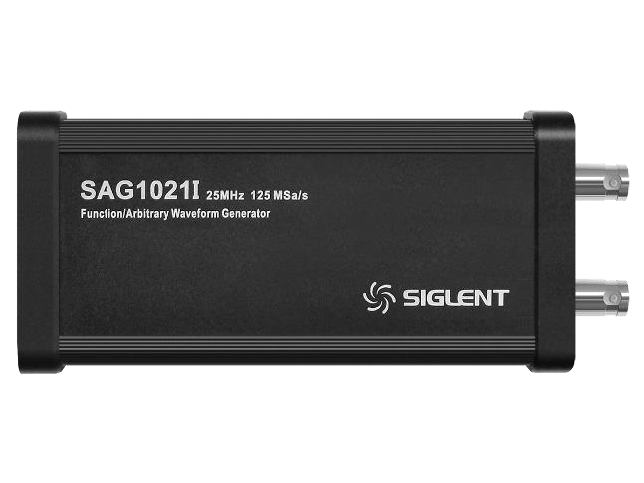

25 MHz Function/Arbitrary Waveform Generator (Optional)

The oscilloscope can control the SAG1021I isolated USB Function/Arbitrary waveform generator to output waveform with up to 25 MHz frequency and ±3 V amplitude. Six basic waveforms plus multiple types of arbitrary waveforms are built in.

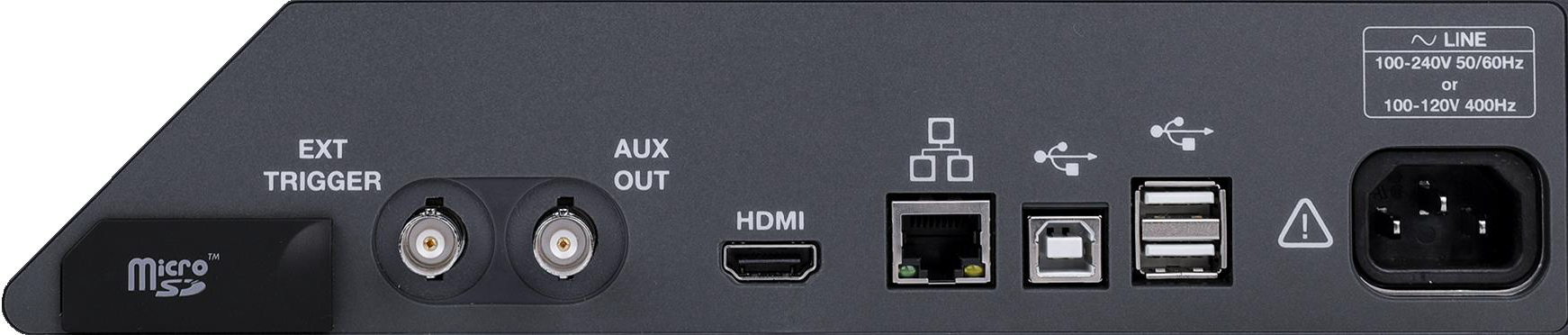

Complete Connectivity

USB Host 3.0 x2, USB Host 2.0 x2, USB Device 2.0 (USBTMC) x1, LAN (VXI-11/Telnet/Socket) x1, micro SD card x1, Auxiliary output (Pass/Fail, Trigger Out) x1 and HDMI x1
