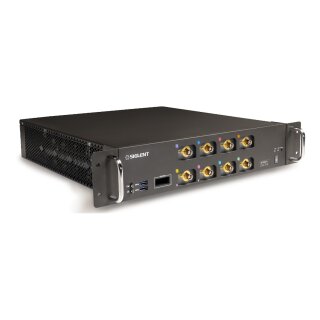

Siglent SDS6208L Rack Mount Oscilloscope

Artno.: SL2-062085
Manufacturers: Siglent

Rack Mount Digital Storage Oscilloscope (DSO), 8 Channels, Bandwidth 2 GHz, Sample Rate 5 GS/s, Memory Depth 500 MPts, Resolution 8-bit / 12-bit (ERES mode), Waveform Update Rate 170 000 wfrm/s / 750 000 wfrm/s (Sequence Mode), Display connection HDMI (1280 x 800), Interface USB Host / USB Device / LAN / micro SD card, Serial Trigger/Decoder I2C / SPI / UART / CAN / LIN, SPO-Technology, Web Interface, Rack Mount, 25 MHz arbitrary waveform generator (optional), 16-channel logic probe (optional)

34.843,00 €

incl. 19% VAT

(29.279,83 € excl. VAT)

Out of stock

Description
Product Reviews

SIGLENT's SDS6000L series Rack Mount Digital Storage Oscilloscopes provide up to 8 analog channels + 16 digital channels in a space-saving chassis size. This series is available in bandwidths of 2 GHz / 1 GHz / 500 MHz, feature a maximum sample rate of 5 GS/s (10 GS/s ESR) for each channel, and a maximum record length of 500 Mpts/ch.

The SDS6000L series employs Siglent's SPO technology with a maximum waveform capture rate of up to 170,000 wfm/ s (normal mode, up to 750,000 wfm/s in Sequence mode), 256-level intensity grading display function plus a color temperature display mode. It also employs an innovative digital trigger system with high sensitivity and low jitter. The trigger system supports multiple powerful triggering modes including serial bus triggering. Tools such as History waveform recording, Search and Navigate functions, Mask Test, Power Analysis and Eye/ Jitter Analysis allow for extended waveform records to be captured, stored and analyzed. An impressive array of measurement and math capabilities, options for a 25 MHz arbitrary waveform generator, and serial decoding are also features of the SDS6000L.

Combined with a 64-channel synchronization distributor (SYN64), multiple SDS6000L modules can be organized as a high-speed acquisition system with up to 512 channels.A complete SCPI command set over the standard 1000M LAN connection provides very fast data acquisition to speed automated test applications.

Model Overview

	SDS6208L SDS6204L	SDS6108L SDS6104L	SDS6058L SDS6054L
Channels	8+EXT (SDS6008L) 4+EXT (SDS6004L)
Bandwidth	2 GHz	1 GHz	500 MHz
Sample Rate	5 GS/s 10 GS/s (ESR)
Memory Depth	500 Mpts/ch (single-channel) 250 Mpts/ch (dual-channel) 125 Mpts/ch (3 or 4 channels)
Waveform Capture Rate	170 000 wfm/s (Normal Mode) 750 000 wfm/s (Sequence Mode)
Vertical Resolution	8-bit up to 12-bit in ERES Mode
Trigger Types	Edge, Slope, Pulse width, Window, Runt, Interval, Dropout, Pattern, Video, Qualified, Nth edge, Setup/hold, Delay, Serial

	SDS6208L SDS6204L	SDS6108L SDS6104L	SDS6058L SDS6054L
Measurement Functions	More than 50 parameters, supports statistics with histogram and trend
Math Functions	4 Traces 8 MPts FFT, +, -, ×, ÷, d/dt, ∫dt, √, Identity, Negation, Absolute, Sign, ex, 10x, ln, lg, Interpolation, MaxHold, Average, ERES, Formula Editor
Data Processing	Search&Navigate, History, Mask Test, Bode Plot, Power Analysis (optional), Counter
Serial Trigger/Decoder	I2C, SPI, UART, CAN, LIN (Standard) CAN FD, FlexRay, I2S, MIL-STD-1553B, SENT, Manchester (optional)
Logic Analyzer (optional)	16 Channels, 1.25 GS/s Sample Rate, 62.5 MPts Record Length per Channel
Signal Generator (optional)	1 Channel, 25 MHz Bandwidth, 125 MGS/s Sample Rate, 50 KPts Memory Depth
Interfaces	USB 3.0 Host x2, USB 2.0 Host x2, USB 2.0 Device (USBTMC), 1000M LAN (SCPI over VXI-11, SCPI over Telnet (port:5024), SCPI over Socket (port:5025), micro SD card, External trigger, Auxiliary output (TRIG OUT,PASS / FAIL), 10 MHz In, 10 MHz Out
Display	HDMI Display connection (1280x800 Pixel)
Supplied Probes	1x 500 MHz passive probe supplied for each channelIt can be used as a stand-alone oscilloscope by being connected to an external display and a mouse. It can also be remotely controlled over LAN thanks to the convenient built-in web server.

Extended Specifications

Package Contents

Device
Power Cord
USB Cable
Quick Start Guide
Probes
