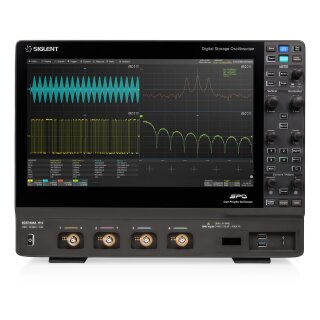

Siglent SDS7404A H12 Oscilloscope
Description
Siglent's SDS7000A series Digital Storage Oscilloscopes are available in bandwidths of 4 GHz and 3 GHz, have 12-bit ADCs with sample rate up to 20 GSa/s, maximum record length of 1Gpts/ch, and display up to 4 analog channels + 16 digital channels for hgh performance mixed signal analysis.
The SDS7000A series employs Siglent's SPO technology with a maximum waveform capture rate of up to 1,000,000 wfm/s, 256-level intensity grading display function plus a color temperature display mode. It also employs an innovative digital trigger system with high sensitivity and low jitter. The trigger system supports multiple powerful triggering modes including serial bus triggering. Tools such as History waveform recording, Search and Navigate functions, Signal Scan, Mask Test, Bode Plot, Power Analysis, Eye/Jitter Analysis and Compliance Test allow for extended waveform records to be captured, stored, and analyzed. An impressive array of measurement and math capabilities, options for a 50 MHz arbitrary waveform generator, as well as serial decoding are also features of the SDS7000A .
The large 15.6" HD display capacitive touch screen supports multi-touch gestures, with the addition of user-friendly UI design, can greatly improve the operational efficiency. It also supports mouse control, and remote web control over LAN.
Key Features
- 4 analog channels, up to 4 GHz bandwidth with up to 20GSa/s sample rate
- 12-bit ADC
- Low background noise: 220 µVrms @ 4 GHz bandwidth
- SPO technology
- Waveform capture rates up to 1,000,000 wfm/s
- Supports 256-level intensity grading and color temperature display modes
- 500 Mpts/ch standard, 1 Gpts/ch optional
- Digital trigger system
- Intelligent trigger: Edge, Slope, Pulse, Window, Runt, Interval, Dropout, Pattern, Qualified, Nth edge, Setup/hold, Delay and Video (HDTV supported). Zone Trigger simplifies advanced triggering
- Serial bus triggering and decoder, supports protocols I2C, SPI, UART, CAN, LIN, CAN FD, FlexRay, I2S, MIL-STD-1553B, SENT, Manchester, ARINC429 and USB 2.0
- Segmented acquisition (Sequence) mode, dividing the maximum record length into multiple segments (up to 124,000), according to trigger conditions set by the user, with a very small dead time between segments to capture the qualifying event
- History waveform record (History) function, the maximum recorded waveform length is 124,000 frames
- Automatic measurements on 50+ parameters, supports statistics with histogram, track, trend, Gating measurement, and measurements on Math, History and Memory traces
- 4 Math traces (32 Mpts FFT, Filter, addition, subtraction, multiplication, division, integration, differential, square root, etc.), supports formula editor
- Abundant data analysis functions such as Search, Navigate, SignalScan, Digital Voltmeter, Counter, Waveform Histogram, Bode plot, Power Analysis, Eye/Jitter Analysis and Compliance Test
- High Speed hardware-based Average, Hi-Res; High Speed hardware-based Mask Test function, with Mask Editor tool for creating user-defined masks
- 16 digital channels (optional)
- Built-in 50 MHz waveform generator
- Large 15.6? HD TFT-LCD display with 1920 * 1080 resolution; Capacitive touch screen supports multi-touch gestures
- Interfaces include: 4x USB Host 3.1 Gen 1,2x USB 3.0 Host,USB 2.0 Device,2x 1000M LAN,DVI-D,DP 1.2,HDMI 1.4,Audio, External Triger In, Aux Out (Pass/Fail, Trigger Out), 10 MHz In,10 MHz Out
- Built-in web server supports remote control over the LAN port using a web browser. Supports SCPI remote control commands. Supports external mouse and keyboard
Model Overview
| SDS7604A H12 | SDS7404A H12 | SDS7304A H12 | |
|---|---|---|---|
| Channels | 4 + EXT | ||
| Bandwidth | 6 GHz | 4 GHz | 3 GHz |
| Sample Rate(Max.) | 20 GSa/s (dual-channel) 10 GSa/s (3 or 4 channels) |
||
| Vertical Resolution | 12-bit up to 16-bit ERES |
||
| Memory Depth(Max.) | Standard: 500 Mpts/ch Optional: 1 Gpts/ch in dual-channel mode |
||
| Waveform Capture Rate(Max.) | 1,000,000 wfm/s | ||
| Trigger Types | Edge, Slope, Pulse width, Window, Runt, Interval, Dropout, Pattern, Video, Qualified, Nth edge, Setup/hold, Delay, Serial | ||
| Serial Trigger/Decoder | Standard: I2C, SPI, UART, CAN, LIN Optional: CAN FD, FlexRay, I2S, MIL-STD-1553B, SENT, Manchester (decode only), ARINC429, USB 2.0 (decode only) |
||
| SDS7604A H12 | SDS7404A H12 | SDS7304A H12 | |
|---|---|---|---|
| Measurement Functions | More than 50 parameters, supports statistics with histogram, trend, and tracking | ||
| Math Functions | 4 Traces 32 MPts FFT, +, -, ×, ÷, ∫dt, d/dt, √, Identity, Negation, Absolute, Sign, ex, 10x, ln, lg, Interpolation, MaxHold, MinHold, ERES, Average, Formula Editor |
||
| Data Processing | Search, Navigate, History, Mask Test, Digital Voltmeter, Counter, Waveform Histogram, Bode plot and Power Analysis, Eye/Jitter Analysis, SignalScan, Compliance Test (USB 2.0, 100Base-TX, 1000Base-T, 100Base-T1, 1000Base-T1) | ||
| Logic Analyzer (optional) | 16 Channels, 1 GSa/s Sample Rate, 50 MPts Record Length per Channel | ||
| Signal Generator (optional) | Builit-in,up to 50 MHz Bandwidth, 125 MSa/s Sample Rate, 16 KPts Memory Depth | ||
| Interfaces | USB 3.0 Host (2x), USB 2.0 Host (2x), USB 2.0 Device, LAN, microSD, External Trigger, Auxiliary Output (TRIG OUT, PASS/FAIL) Display: 1x DVI-D: up to 1920x1200 @ 60Hz; 1x DP 1.2: up to 4096x2304 @ 60Hz; 1x HDMI 1.4: up to 4096x2160 @ 60H Audio: Mic input, Audio Output Others: External Trigger In, Aux Out (TRIG OUT,PASS/FAIL),10 MHz In,10 MHz Out |
||
| Display | 15.6" HD TFT-LCD capacitive touch screen (1920x1080 Pixel) | ||
| Supplied Probes (Standard) | 500 MHz. 1 probe supplied for each channel | ||
Package Contents
- Device
- Probes
- Power Cord
- USB Cable
- Quick Start Guide
- Calibration Certificate Wireless Mouse Protective Cover
Features
12-bit High Resolution
12-bit resolution shows you more details and less noise on the waveform.
Upgraded processor system
Processor fully upgraded from the embedded ARM processor to the X86 processor, has greatly improved the system response speed and the speed of measurement, calculation, and analysis, presenting more possibilities for the expansion of software analysis functions in the future.
Excellent User Interface and User Experience
- 15.6" HD display with 1920x1080 resolution
- Capacitive touch screen, supporting multi-touch gestures, can move or scale the waveform traces quickly by finger-touch movements, which greatly improves the operational efficiency
- Built-in WebServer supports remote control on a web page over LAN
- Supports external mouse and keyboard
High Waveform Update Rate
With a waveform update rate of up to 1,000,000 wfm/s, the oscilloscope can easily capture unusual or low-probability events. In Sequence mode, the waveform capture rate can reach 1,100,000 wfm/s.
Deep Record Length
Using hardware-based Zoom technique and record length of up to 1 Gpts, users can select a slower timebase without compromising the sample rate, and then quickly zoom in to focus on the area of interest.
Multiple Trigger Functions
Edge, Slope, Pulse, Video, Windows, Runt, Interval, Dropout, Pattern, Qualified, Nth edge, Setup/hold, Delay and serial trigger.
Eye/Jitter Analysis
Supports eye diagram and jitter analysis//measurement. It measurement. It cancan automatically extract the embedded reference clock from serial data automatically extract the embedded reference clock from serial data and create the eye diagram. Measurement on multiple eye/jitter parameters and create the eye diagram. Measurement on multiple eye/jitter parameters isis providedprovided. . Mask test on eye diagramMask test on eye diagramss is supportedis supported.
Zone Trigger
Zone Trigger is available for advanced triggering. Combine spatial triggering with common trigger modes to isolate signals of interest.
Advanced Math Function
In addition to the traditional (+, -, X, /) operations, FFT, Filter, integration, differential, square root, and more are supported. Formula Editor is available for more complex operations. 4 math traces are available.
Deep Memory FFT
FFT supports up to 32 Mpts operation. This provides high-frequency resolution with a fast refresh rate. The FFT function also supports a variety of window functions so that it can adapt to different spectrum measurement needs. Three modes (Normal, Average, and Max hold) can satisfy different requirements for observing the power spectrum. Auto peak detection and markers are supported.
Measurements of a Variety of Parameters
Parameter measurements include 4 categories: horizontal, vertical, miscellaneous, and CH delay providing a total of 50+ different types of measurements. Measurements can be performed within a specified gate period. Measurements on Math, Reference, and History frames are supported.
History Mode
History function can record up to 124,000 frames of waveforms. The recording is executed automatically so that the customer can playback the history waveforms at any time to observe unusual events and quickly locate the area of interest using the cursors or measurements. The failed frames of the Mask Test can be stored as history.
Search and Navigate
The oscilloscope can search events specified by the user in a frame. Events flagged by the Search can be recalled automatically using Navigate. It can also navigate by time (delay position) and history frames.
Serial Bus Decode
Display the decoded characters through the events list. Bus protocol information can be quickly and intuitively displayed in tabular form. I2C, SPI, UART, CAN, LIN, CAN FD, FlexRay, I2S, MIL-STD-1553B, SENT, Manchester , ARINC429 and USB 2.0 are supported.
Hardware-based High Speed Mask Test Function
The oscilloscope utilizes a hardware--based Mask Test function, based Mask Test function, performing up to performing up to 8080,000 Pass / Fail decisions each second. It is ,000 Pass / Fail decisions each second. It is easy to generate usereasy to generate user--defined test templates to provide trace defined test templates to provide trace mask comparisons, making it suitable for longmask comparisons, making it suitable for long--term signal term signal monitoring or automated production line testingmonitoring or automated production line testing.
Built--in Mask Editor application helps to create custom masksin Mask Editor application helps to create custom masks.
Built--in Mask Editor application helps to create custom masksin Mask Editor application helps to create custom masks.
