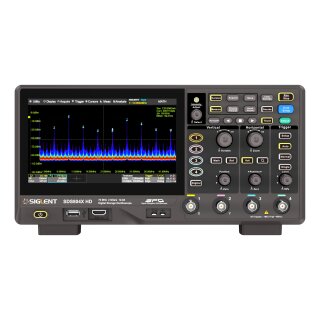

Siglent SDS804X HD Oscilloscope
Description
The Siglent SDS800X HD series digital storage oscilloscopes, featuring high-resolution based on 12-bit Analog-Digital Converters and low-noise front ends, offer sampling rates of 2 GSa/s. These oscilloscopes are offered with bandwidth options from 70 to 200 MHz, support a maximum record length of 100 Mpts, and provide the capability for mixed signal analysis with 2/4 analog channels and 16 digital channels.
Utilizing Siglent SPO technology, the SDS800X HD series achieves a waveform capture rate of up to 120,000 wfm/s in normal mode and up to 500,000 wfm/s in Sequence mode. It features a 256-level intensity grading and color temperature display for enhanced visual analysis. The series also introduces a highly sensitive and low-jitter digital trigger system, accommodating various advanced triggering modes, including serial bus triggering.
Extended waveform capture, storage, and analysis are facilitated by features such as waveform history recording, search and navigate functions, mask testing, Bode plotting, and power analysis. The oscilloscopes are equipped with comprehensive measurement and mathematical tools, the option for a 25 MHz arbitrary waveform generator, and serial decoding capabilities, enhancing their versatility.
The 7-inch capacitive touchscreen supports multi-touch gestures, offering a user-friendly interface that significantly boosts operational efficiency. Additionally, the oscilloscopes provide mouse control and remote web control via LAN, further extending their usability and convenience.
Model Overview
|
SDS804X HD SDS802X HD |
SDS814X HD SDS812X HD |
SDS824X HD SDS822X HD |
|
|---|---|---|---|
| Channels | 4 (4CH Series: SDS804X HD, SDS814X HD, SDS824X HD), 2 (2CH Series: SDS802X HD, SDS812X HD, SDS822X HD) |
||
| Bandwidth | 70 MHz | 100 MHz | 200 MHz |
| Vertical Resolution | 12-bit | ||
| Sample Rate(Max.) | One channel mode:2 GSa/s Two channel mode:1 GSa/s Four channel mode:500 MSa/s |
||
| Memory Depth(Max.) | One channel mode: 50 Mpts/ch Two channel mode: 25 Mpts/ch Four channel mode: 10 Mpts/ch |
One channel mode: 100 Mpts/ch Two channel mode: 50 Mpts/ch Four channel mode: 25 Mpts/ch |
|
| Waveform Capture Rate(Max.) | Normal mode:80.000 wfm/s Sequence mode:500.000 wfm/s |
Normal mode:120.000 wfm/s Sequence mode:500.000 wfm/s |
|
| Trigger Types | Edge, Slope, Pulse width, Window, Runt, Interval, Dropout, Pattern, Video, Qualified, Nth edge, Delay, Setup/Hold time, Serial | ||
| Serial Trigger/Decoder | Standard: I2C, SPI, UART, CAN, LIN | ||
|
SDS804X HD SDS802X HD |
SDS814X HD SDS812X HD |
SDS824X HD SDS822X HD |
|
|---|---|---|---|
| Measurement Functions | More than 50 parameters, supports statistics with histogram, trend, and tracking | ||
| Math Functions | 4 Traces 2 MPts FFT, +, -, ×, ÷, ∫dt, d/dt, √, Identity, Negation, Absolute, Sign, ex, 10x, ln, lg, Interpolation, MaxHold, MinHold, ERES, Average, Formula Editor |
||
| Data Processing | Search, Navigate, History, Mask Test, Counter, Bode plot, and Power Analysis | ||
| Logic Analyzer (optional) | 16 Channels, 1 GSa/s Sample Rate, 50 MPts Record Length per Channel | ||
| USB-AWG-Modul(Option) | One channel, 25 MHz, sample rate of 125 MHz, wave length of 16 kpts, isolated output | ||
| Interfaces | USB 2.0 Host x2, USB 2.0 Device, 10 M / 100 M LAN, Auxiliary output (TRIG OUT, PASS/FAIL), SBUS (Siglent MSO) | ||
| Supplied Probes (Standard) | Passive probe PB470 for each channel | Passive probe PP510 for each channel | Passive probe PP215 for each channel |
| Display | 7" TFT-LCD with capacitive touch screen (1024x600) | ||
Package Contents
- Device
- Probes
- Power Cord
- USB Cable
- Quick Start Guide
- Calibration Certificate
Features
12-bit High Resolution
Vertical and horizontal zoom, coupled with a substantial memory depth, fully leverage the 12-bit ADC resolution. Engineers can simultaneously observe the overall waveform and its detailed aspects.
Reduced Noise Floor
Merely 70 μVrms at a bandwidth of 200 MHz
High Precision in DC Gain
0.5% Accuracy
Excellent User Interface and User Experience
The device features a 7" display with a resolution of 1024x600, enhancing visual clarity and detail. It is equipped with a capacitive touch screen that supports multitouch gestures. Users can move or scale waveform traces swiftly with finger-touch movements, significantly improving operational efficiency. Additionally, a built-in WebServer enables remote control functionality via a web page over LAN. The device also supports the use of an external mouse and keyboard, offering versatile control options.
Optional Font Size to Meet Different Observation Needs
Large font size, suitable for use on devices, and small font size for an exquisite display, ideal for large screen display scenarios such as VNC.
High Waveform Update Rate
With a waveform update rate of up to 120,000 wfm/s, the oscilloscope can easily capture unusual or low-probability events. In Sequence mode, the waveform capture rate can reach 500,000 wfm/s.
Deep Record Length
Using hardware-based Zoom technique and record length of up to 100 Mpts, users can select a slower timebase without compromising the sample rate, and then quickly zoom in to focus on the area of interest.
Multiple Trigger Functions
Edge, Slope, Pulse width, Video, Windows, Runt, Interval, Dropout, Pattern, Qualified, Nth edge, Delay, Setup/Hold time, and Serial trigger.
Advanced Math Function
The device supports basic operations (addition, subtraction, multiplication, division), as well as FFT, integration, differentiation, square root, and more. A Formula Editor is available for complex calculations, with four math traces provided. It features hardware-accelerated FFT for up to 2 Mpts, ensuring high-frequency resolution and quick refresh rates. The FFT function offers various window functions to meet diverse spectrum measurement needs and includes three modes (Normal, Average, Max hold) for different power spectrum observations. It also supports auto peak detection and markers.
Measurements of a Variety of Parameters
Parameter measurements include 4 categories: horizontal, vertical, miscellaneous, and CH delay providing a total of 50+ different types of measurements. Measurements can be performed within a specified gate period. Measurements on Math, Reference, and History frames are supported.
Parameter Statistics Function
Statistics display current, maximum, minimum values, standard deviation, and mean. A histogram shows parameter probability distributions. Trend and Track illustrate parameter values over time. For horizontal parameters like period, all results from a frame are analyzed, enhancing statistics speed and enabling frame-wise distribution observation with Histogram and Track.
History Mode
History function can record up to 80,000 frames of waveforms. The recording is executed automatically so that the customer can playback the history waveforms at any time to observe unusual events and quickly locate the area of interest using the cursors or measurements.
Sequence Mode
Segmented memory collection will store the waveform into multiple memory segments (up to 80,000) and each segment will store a triggered waveform as well the dead time information. The interval between segments can be as small as 2 μs. All of the segments can be played back using the History function.
Search and Navigate
The oscilloscope can search events specified by the user in a frame. Events flagged by the Search can be recalled automatically using Navigate. It can also navigate by time (delay position) and history frames.
Serial Bus Decode
Display the decoded characters through the events list. Bus protocol information can be quickly and intuitively displayed in tabular form. I2C, SPI, UART, CAN, LIN are supported.
Hardware-based High-Speed Mask Test Function
The oscilloscope utilizes a hardware-based Mask Test function, performing up to 80,000 Pass / Fail decisions each second. It is easy to generate user-defined test templates to provide trace mask comparisons, making it suitable for long-term signal monitoring or automated production line testing. Built-in Mask Editor application helps to create custom masks.
Bode Plot
SDS800X HD can control the USB AWG module or control an independent Siglent SDG instrument, scan a devices amplitude and phase frequency response, and display the data as a Bode Plot. There is also a Vari-level Mode for accurately measuring Power Supply Control Loop Response (PSRR).
| Shipping weight: | 3.90 Kg |
