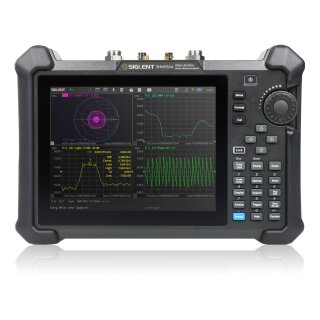

Siglent SHN920A Handheld Vector Network Analyzer
Artno.: SL6-709200
Vector network analyzer, 2 Ports, 30 kHz .. 20 GHz Frequency Range, Touch Screen

21,277.00 € incl. 19% VAT
17,879.83 € excl. VAT
Orderable

Shipping time: 5 - 7 business days

Description

The SIGLENT SHN900A series of Vector Network Analyzers boasts a wide frequency range spanning from 30 kHz to 26.5 GHz, accommodating 2-port scattering parameter, differential-parameter, and time-domain parameter measurements. These VNAs serve as essential tools for determining the Q-factor, bandwidth, and insertion loss of filters. Additionally, they offer a host of features including impedance conversion, measurement plane adjustment, limit testing, ripple testing, fixture simulation, and adapter removal/insertion adjustments.

With five sweep types available?Linear-Frequency mode, Log-Frequency mode, Power-Sweep mode, CW-Time mode, and Segment-Sweep mode?the SHN900A series VNAs cater to diverse testing needs. Furthermore, they support scattering-parameter correction methods such as SOLT, SOLR, TRL, Response, and Enhanced Response, providing enhanced flexibility for both research and manufacturing applications.

Model Overview

SHN914A SHN920A SHN926A
Frequency Range 30 kHz up to 14GHz 30 kHz up to 20GHz 30 kHz up to 26.5 GHz
Ports 2
Frequency Resolution 1 Hz
Level resolution 0.01 dB
Range of IFBW 10 Hz up to 3 MHz
Setting range of output level -45 dBm up to. +10 dBm
Dynamic range(Typ.) 110 dBm
SHN914A SHN920A SHN926A
Types of calibration Response calibration, Enhanced Response calibration, Full-one port calibration, Full-two port calibration, TRL calibration
Types of measuremen Scattering-parameter measurement, ifferential-parameter measurement, receiver measurement, time-domain parameter analysis, limit test, ripple test, impedance conversion, fixture simulation, adapter removal/insertion, enhanced time-domain parameter analysis (TDR), spectrum analysis, frequency offset, scalar mixer measurement, pulse measurement
Bias-Tees Support
Interfaces LAN, USB Device, USB Host(USB-GPIB)
Remote control SCPI/Labview/IVI based on USB-TMC/VXI11/Socket/Telnet/WebServer
Display 8.4-inch touch screen
GPS Support

Features

Multi-window display
Multi-format display
Display and compare memory and current data
Display data hold
Impedance conversion
Equation Editor
Port Extensions
Embedding and De-Embedding
CAT
Time-Domain analysis
Enhanced Time-Domain analysis(TDR)
Spectrum analysis
