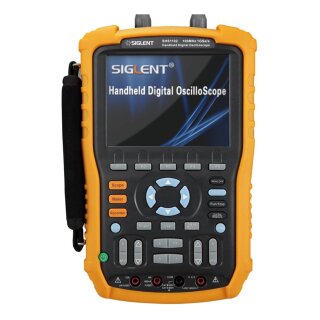

Siglent SHS1000 Handheld Oscilloscope Series
Description
The SHS1000 series handheld devices provide the user with an oscilloscope, multimeter, and recorder (including trends and waveform recorder) functions, all in one package.
It takes advantage of years of Siglent research and development, providing completely isolated oscilloscope input channels with a rating up to CAT II 1000V / CAT III 600V. Patented technology allows isolation both from ground and between channels, allowing you to safely take floating measurements without worrying about damaging circuitry.
Model Overview
| SHS1062 | SHS1102 | SHS806 | SHS810 | SHS820 | |
|---|---|---|---|---|---|
| Bandwidth | 60MHz | 100MHz | 60MHz | 100MHz | 200MHz |
| Sampling Rate | 1 GSa/s (single channel), 500 MSa/s (double channel) | 1 GSa/s (single channel), 500 MSa/s (double channel) | 500 MSa/s | ||
| Channels | 2 (isolated) | 2 | |||
| Memory Depth | 2 MPts | ||||
| Trigger Types | Edge, Pulse, Video, Slope, Alternative | ||||
| Math Functions | +, -, * , /, FFT | ||||
| Interfaces | USB Device, USB Host | ||||
| Standard Probes | 2 pcs 1X/10X oscilloscope probes | ||||
| Display | 5.7" TFT-LCD (320x234 pixel) | ||||
Features
High performance oscilloscope with isolated channels

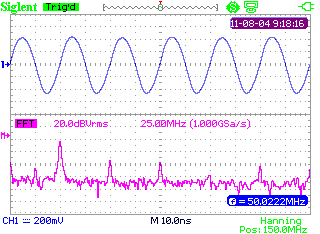

Fully featured digital oscilloscope with up to 1 GSa/s sampling rate, including math and FFT functions.

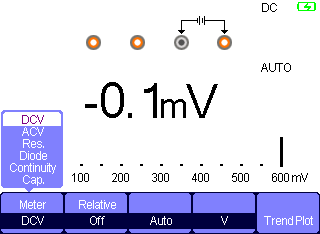

6000 Counts integrated multimeter
Providing measurement of DCV, ACV, DCA, ACA, Resistance, Diode, Capacitance and Continuity.

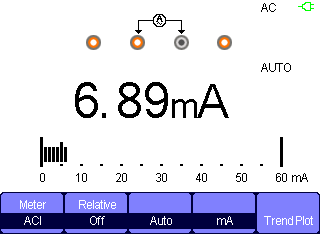

Current measurement
Measure DC and AC currents from 10µA up to 10A.

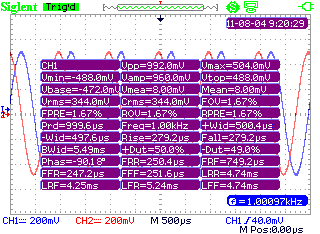

Automatic Measurements
32 types of automatic waveform measurements and 3 cursor measure modes.

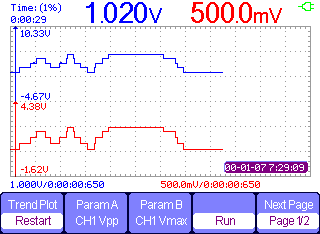

Measurement trend plot
Data logging functionality for multimeter and scope automatic measurement values with more than 9000h recording time capabilty.

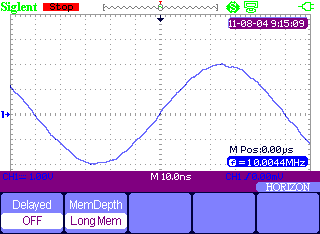

2 Mpts memory depth
Record the signal with a high sample rate and zoom into the area of interest.

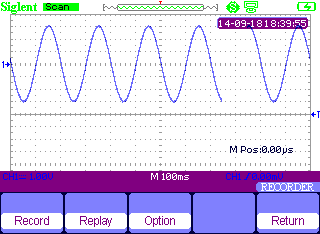

Scope data recorder
Record scope waveform continually in scan mode, supports replay and zoom functionality, 7 MPts memory depth.
Included in Delivery
- SHS800 series handheld scope
- Passive 1X/10X probes (2 pcs)
- Multimeter test leads
- USB cable
- Power supply 9V/4A
- User Manual
- CD-ROM with EasyScopeX software
- Warranty card
| Shipping weight: | 5.00 Kg |
