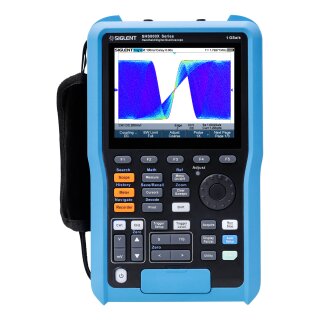

Siglent SHS810X Handheld Oscilloscope

The SHS800X series handheld devices provide the user with an oscilloscope, multimeter, and recorder (including trends and waveform recorder) functions, all in one package. It inherits the SHS1000X series stable and high performance along with the flexibility to use it on a workbench or in the field.

Model Overview

Box Contents

• 1x Oszilloscope
• 1x Quick Start
• 2x Passive Probe
• 1x Certification
• 1x Power Adapter
• 1x Battery
• 1x SCD600MA current measurement adapter
• 1x SCD10A current measurement adapter
• 1x Carrying Bag

Features

• 200 MHz, 100 MHz bandwidth models
• Sample rate of 1 GSa/s (single-channel), Sample rate of 500 MSa/s (two-channels)
• The Siglent SPO technology
• Waveform capture rates up to 100,000 wfm/s (normal mode) and 400,000 wfm/s (sequence mode)
• Supports 256-level intensity grading and color temperature display modes
• Record length up to 12 Mpts
• Digital trigger system
• Intelligent trigger: Edge, Slope, Pulse Width, Window, Runt, Interval, Time out (Dropout), Pattern
• Serial bus triggering and decoding (Standard) for IIC, SPI, UART, CAN, and LIN protocols
• Video trigger/HDTV
• Low background noise with voltage scales from 2 mV/div to 100 V/div
• 3 one-button shortcuts for Oscilloscope, Multimeter and Recorder functions
• 8 one-button shortcuts for: Run/Stop, Auto Setup, Default, Measure, Cursors, Display/Persist, Clear Sweep and Print. More function shortcuts available when combined with the shift button
• Segmented acquisition (Sequence) mode, divides the maximum record length into multiple segments (up to 80,000), according to trigger conditions set by the user, with a very small dead time segment to capture the qualifying event
• History waveform record (History) function (maximum recorded waveform length is 80,000 frames)
• Automatic measurement function for 38 parameters as well as Measurement Statistics, Zoom, Gating, Math, History and Reference functions
• 1 Mpts FFT. Support Peaks and Markers
• Math and measurement functions use all sampled data points (up to 12 Mpts)
• Math functions (FFT, addition, subtraction, multiplication, division, integration, differential, square root)
• Default key can be customized for user settings or factory ?defaults?
• Supports Multi-language display and embedded online help
• Security Erase mode
• Search and navigate function
• Includes Recorder mode, including Sample and Measurement Loggers
• 6000 counts Digital Multimeter, Support DCV, ACV, DCI, ACI, Resistance, Diode, Capacitance, Continuity test.
• True RMS AC Voltage/Current measurement multimeter
• 5.6-inch TFT-LCD display with 640 * 480 resolution
• Interface types: Isolated USB Host, USB Device (MicroUSB -TMC)
• Supports SCPI remote control commands
• UL2054 certified lithium battery pack, 6900 mAh capacity, external charger
• IP Rating: IP51
• Compliance with UL61010-1, UL61010-2-030, UL61010-2-033
