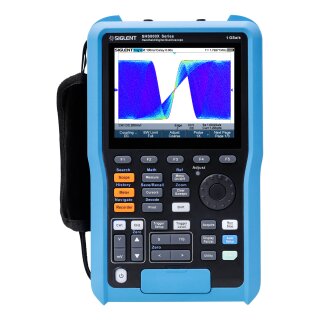

Siglent SHS820X Handheld Oscilloscope, 1.069,00 €

The SHS800X series handheld devices provide the user with an oscilloscope, multimeter, and recorder (including trends and waveform recorder) functions, all in one package. It inherits the SHS1000X series stable and high performance along with the flexibility to use it on a workbench or in the field.

Model Overview

Model	SHS810X	SHS820X	SHS1102X	SHS1202X
Bandwidth	100MHz	200MHz	100MHz	200MHz
Sampling Rate	1 GS/s (single channel), 500 MS/s (double channel)
Channels	2		2 (isolated)
Memory Depth	12 MPts
Trigger Types	Edge, Slope, Pulse Width, Window, Runt, Interval, Time out (Dropout), Pattern
Math Functions	+, -, ×, ÷, FFT, d/dt, ∫dt, √
Interfaces	USB Device, USB Host
Standard Probes	PP510	PP215	PB925
Display	5.6" TFT-LCD (640x480 pixel)

Box Contents

1x Oszilloscope
1x Quick Start
2x Passive Probe
1x Certification
1x Power Adapter
1x Battery
1x SCD600MA current measurement adapter
1x SCD10A current measurement adapter
1x Carrying Bag

Features

200 MHz, 100 MHz bandwidth models
Sample rate of 1 GSa/s (single-channel), Sample rate of 500 MSa/s (two-channels)
The Siglent SPO technology

Waveform capture rates up to 100,000 wfm/s (normal mode) and 400,000 wfm/s (sequence mode)
Supports 256-level intensity grading and color temperature display modes
Record length up to 12 Mpts
Digital trigger system

Intelligent trigger: Edge, Slope, Pulse Width, Window, Runt, Interval, Time out (Dropout), Pattern
Serial bus triggering and decoding (Standard) for IIC, SPI, UART, CAN, and LIN protocols
Video trigger/HDTV
Low background noise with voltage scales from 2 mV/div to 100 V/div
3 one-button shortcuts for Oscilloscope, Multimeter and Recorder functions
8 one-button shortcuts for: Run/Stop, Auto Setup, Default, Measure, Cursors, Display/Persist, Clear Sweep and Print. More function shortcuts available when combined with the shift button
Segmented acquisition (Sequence) mode, divides the maximum record length into multiple segments (up to 80,000), according to trigger conditions set by the user, with a very small dead time segment to capture the qualifying event
History waveform record (History) function (maximum recorded waveform length is 80,000 frames)
Automatic measurement function for 38 parameters as well as Measurement Statistics, Zoom, Gating, Math, History and Reference functions
1 Mpts FFT. Support Peaks and Markers
Math and measurement functions use all sampled data points (up to 12 Mpts)
Math functions (FFT, addition, subtraction, multiplication, division, integration, differential, square root)
Default key can be customized for user settings or factory “defaults”
Supports Multi-language display and embedded online help
Security Erase mode
Search and navigate function
Includes Recorder mode, including Sample and Measurement Loggers
6000 counts Digital Multimeter, Support DCV, ACV, DCI, ACI, Resistance, Diode, Capacitance, Continuity test.
True RMS AC Voltage/Current measurement multimeter
5.6-inch TFT-LCD display with 640 * 480 resolution
Interface types: Isolated USB Host, USB Device (MicroUSB -TMC)
Supports SCPI remote control commands
UL2054 certified lithium battery pack, 6900 mAh capacity, external charger
IP Rating: IP51
Compliance with UL61010-1, UL61010-2-030, UL61010-2-033
