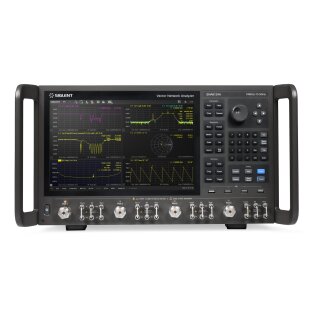

The SIGLENT SNA6000A series vector network analyzers have a frequency range of 100 kHz to 13.5 GHz and 100 kHz to 26.5 GHz, which support 2/4-port scattering parameter, differential-parameter, and time-domain parameter measurements. The SNA6000A series are effective instrumentation for determining the Q-factor, bandwidth, and insertion loss of a filter. It features impedance conversion, movement of measurement plane, limit testing, ripple test, fixture simulation and adapter removal/insertion adjustments. The VNAs have five sweep types: Linear-Frequency mode, Log-Frequency mode, Power-Sweep mode, CW-Time mode, and Segment-Sweep mode. The SNA6000A series VNAs also support scattering-parameter correction of SOLT, SOLR, TRL, Response, and Enhanced Response for increased flexibility in R&D and manufacturing applications.
SNA6000A Vector Network Analyzer Differences
When choosing between our SNA series Vector Network Analyzers, there are three key differences to consider. First, you can choose between two frequency ranges: 13.5 GHz or 26.5 GHz, depending on your measurement needs. Second, the analyzers come in either 2-port or 4-port configurations - opt for 4 ports if you need to test multiple signal paths simultaneously. Finally, some models include direct receiver access (indicated by a "1" after SNA6: SNA6122A,SNA6124A, SNA6132A, and SNA6134A), which allows for advanced external signal routing and custom test configurations. All models share the same high performance specifications including output level range, dynamic range, and touch screen interface.
Model Overview
| Model |
SNA6034A |
SNA6032A |
SNA6024A |
SNA6022A |
| SNA6134A |
SNA6132A |
SNA6124A |
SNA6122A |
| Frequency Range |
100 kHz .. 26.5 GHz |
100 kHz .. 13.5 GHz |
| Ports |
4 |
2 |
4 |
2 |
| Frequency Resolution |
1 Hz |
| Level resolution |
0.05 dB |
| Range of IFBW |
1 Hz 0.05 10 MHz |
| Number of points |
2 to 100,001 |
Setting range of
output level |
−55 dBm .. +10 dBm |
| Dynamic range |
135 dB |
| Model |
SNA6034A |
SNA6032A |
SNA6024A |
SNA6022A |
| SNA6134A |
SNA6132A |
SNA6124A |
SNA6122A |
| Types of measurement |
Scattering-parameter measurement, differential-parameter measurement, receiver measurement, time-domain parameter analysis, limit test, ripple test, impedance conversion, fixture simulation, adapter removal/insertion, enhanced time-domain parameter analysis (TDR), spectrum analysis, frequency offset, scalar mixer measurement, pulse measurement, material measurement
|
| Bias-Tees |
Support |
| Options |
SNA6000-HPR: High-performance Reference Source
SNA6000-TDA: Time-Domain Analysis
SNA6000-TDR: Enhanced Time-Domain Analysis
SNA6000-SMM: Scalar Mixer Measurement
SNA6000-SA: Spectrum Analysis
SNA6000-PM: Pulse Measurement
SNA6000-MT: Material Measurement
|
| Interfaces |
LAN, USB Device, USB Host(USB-GPIB) |
| Remote control |
SCPI/ Labview/ IVI based on USB-TMC/ VXI-11/ Socket/ Telnet/ WebServer |
| Display |
12.1-inch touch screen |
| Video output |
HDMI/DVI-D/DP |
Extended Specifications
Package Contents
- Device
- Power Cord
- USB Cable
- Calibration Certificate
- Wireless mouse
- Protective Cover
- Front Panel Jumper Interface (available with models SNA6122A, SNA6124A, SNA6132A)
Features
Display and compare memory and current data
Embedding and De-Embedding
Enhanced Time-Domain analysis(TDR)
Switch matrix measurement
More Features
