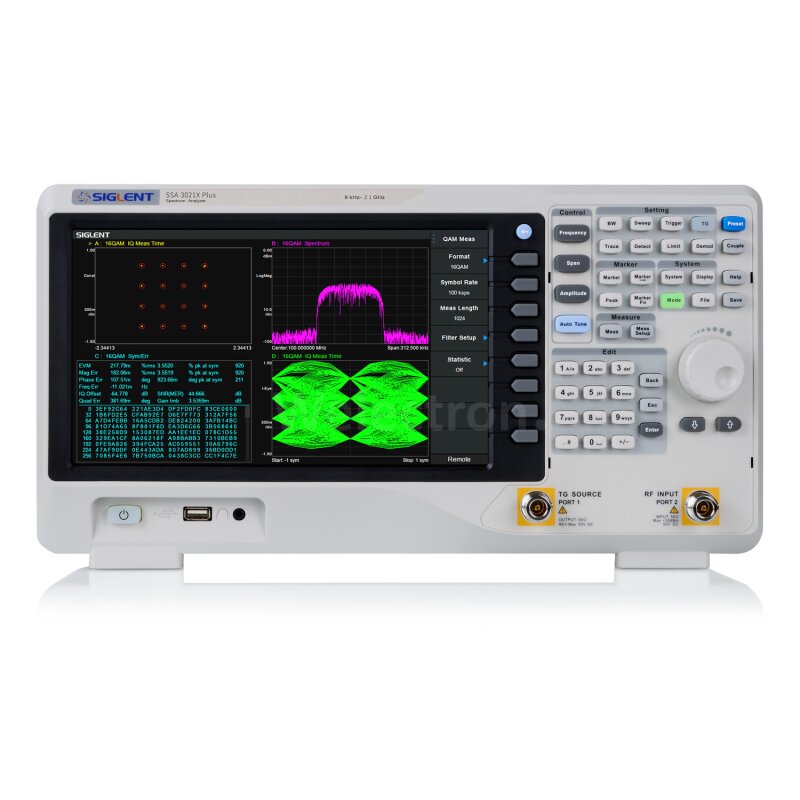

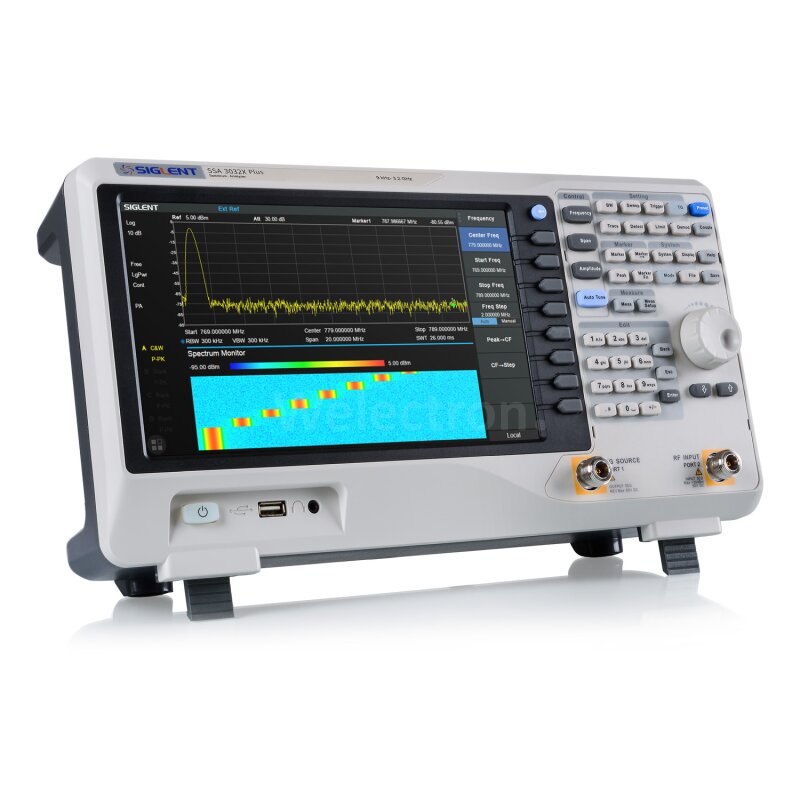

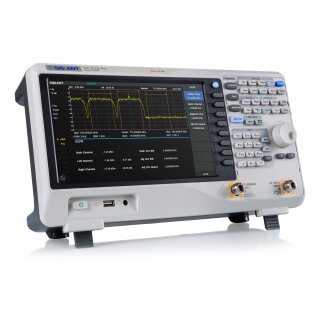

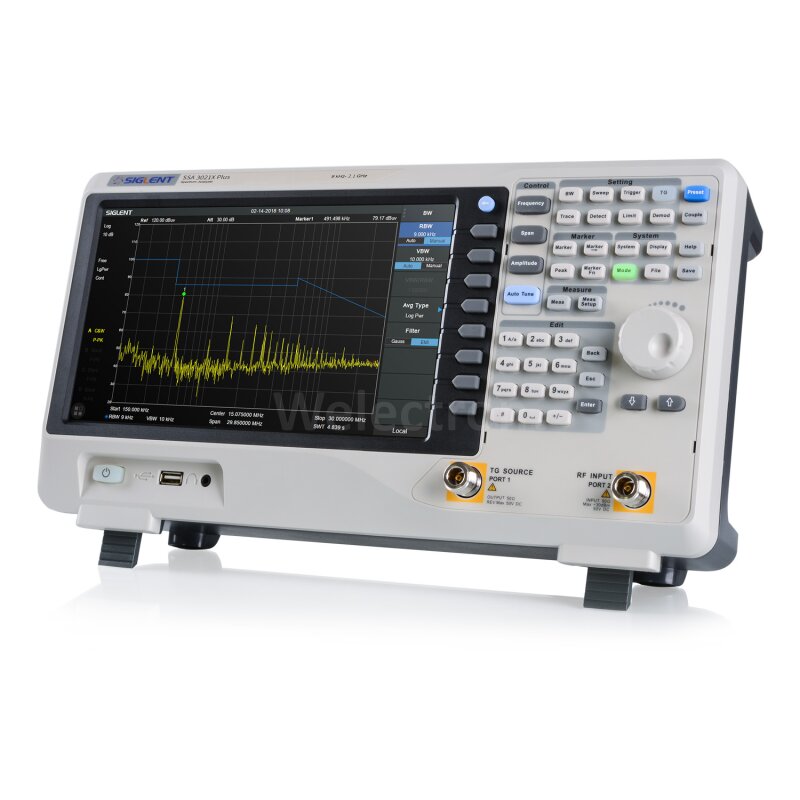

Siglent SSA3021X Plus Spectrum Analyzer

Artno.: SL6-230210
Spectrum analyzer, 9 kHz .. 2.1 GHz Frequency Range, 1 Hz .. 1 MHz Resolution Bandwidth, Tracking Generator, Touch Screen
1,748.00 € Special Price!
from 1,573.00 € incl. 19% VAT
1,321.85 € excl. VAT

Free shipping within Germany

Orderable

Shipping time: 5 - 7 business days

Your configuration
Promotion Bundles
  • Siglent SSA3000X Plus EMI Bundle
    EMI Bundle with promotion price, consists of SSA3000XP-EMI license and SRF5030T Near Field Probe Kit
    On stock
    Shipping time: 1 - 3 business days
    EMI Bundle with promotion price, consists of SSA3000XP-EMI license and SRF5030T Near Field Probe Kit
  • Siglent RBSSA3X25 Reflection Bundle
    VSWR bridge / directional coupler for measurement of reflection and return loss, 2.5 GHz bandwidth, incl. software license SSA3000-Refl
    On stock
    Shipping time: 1 - 3 business days
    VSWR bridge / directional coupler for measurement of reflection and return loss, 2.5 GHz bandwidth, incl. software license SSA3000-Refl
  • Siglent SSA-RMK Rack Mount Kit
    Bracket for 19" rack mount for Siglent spectrum/network analyzer series SVA1000X, SSA3000X
    On stock
    Shipping time: 1 - 3 business days
    Bracket for 19" rack mount for Siglent spectrum/network analyzer series SVA1000X, SSA3000X
  • Siglent UKitSSA3X Spectrum Analyzer Accessory Kit
    Accessory kit for spectrum analyzers consisting of two cables (N male - SMA male, N male - N male), four adaptors (2x N male - BNC female, 2x N male - SMA female) and a 10dB attenuator, frequency bandwidth up to 6 GHz
    On stock
    Shipping time: 1 - 3 business days
    Accessory kit for spectrum analyzers consisting of two cables (N male - SMA male, N male - N male), four adaptors (2x N male - BNC female, 2x N male - SMA female) and a 10dB attenuator, frequency bandwidth up to 6 GHz
  • Siglent SRF5030T Near-Field Probe Kit
    Near-field probe kit consisting of three H-field probes (20/10/5 mm resolution) and one E-field point probe (5mm resolution), bandwidth 300 kHz .. 3 GHz
    10+ On stock
    Shipping time: 1 - 3 business days
    Near-field probe kit consisting of three H-field probes (20/10/5 mm resolution) and one E-field point probe (5mm resolution), bandwidth 300 kHz .. 3 GHz
  • Siglent BAG-S2 Carry Bag for Siglent SDS2000X, SSA3000X
    Bolstered carry pouch for transportation and storage of a Siglent SDS2000X oscilloscope or SSA3000X spectrum analyzer
    On stock
    Shipping time: 1 - 3 business days
    Bolstered carry pouch for transportation and storage of a Siglent SDS2000X oscilloscope or SSA3000X spectrum analyzer
  • Breve-Tufvassons PFS160/230/230V Isolation Transformer 230V, 160VA
    Portable safety and isolation transformer with European plug and outlet, 230 VAC, IP44, insulation class II, for galvanic isolation
    Orderable
    Shipping time: 31 - 33 business days
    Portable safety and isolation transformer with European plug and outlet, 230 VAC, IP44, insulation class II, for galvanic isolation
1,573.00 € incl. 19% VAT *

Description

Siglent's SSA3000X Plus family of spectrum analyzers offer a frequency range of 9 KHz to a maximum of 7.5 GHz. With their light weight, small size, and friendly user interface, the SSA3000X Plus present a bright easy to read touch display, powerful and reliable automatic measurements, and plenty of impressive features. Applications are many, but include research and development, education, production, maintenance, and many more.

Model Overview

SSA3015X Plus SSA3021X Plus SSA3032X Plus SSA3075X Plus
Frequency Range 9 kHz .. 1.5 GHz 9 kHz .. 2.1 GHz 9 kHz .. 3.2 GHz 9 kHz .. 7.5 GHz
Preamplifier
Tracking Generator 5 MHz .. 1.5 GHz 100 kHz .. 2.1 GHz 100 kHz .. 3.2 GHz 100 kHz .. 7.5 GHz
Resolution Bandwidth (RBW) 1 Hz .. 1 MHz 1 Hz .. 3 MHz
Displayed Average Noise Level (DANL) -156 dBm/Hz -161 dBm/Hz -165 dBm/Hz
Phase Noise < -99 dBc/Hz < -98 dBc/Hz
Amplitude Precision < 1.2 dB < 0.7 dB
Multi-Touchscreen
Web Interface
SSA3015X Plus SSA3021X Plus SSA3032X Plus SSA3075X Plus
Screen 10.1" TFT, 1024x600 Pixel
Input Device Support Maus, Tastatur
Interfaces LAN, USB Device, USB-Host, USB-GPIB optional
Advanced Measurement
(AMK Option)		 CHP, ACPR, OBW, CNR, Harmonic, TOI, Monitor
Analog Modulation Analysis
(AMA Option)		 AM, FM
Digital Modulation Analysis
(DMA Option)		 ASK, FSK, MSK, PSK, QAM
Reflection Measurement
(Refl Option)		 VSWR measurement using reflection bridge
EMI Measurement
(EMI Option)		 EMI Filter and Quasi-Peak Detector, Log Scale and Limit Line

Features

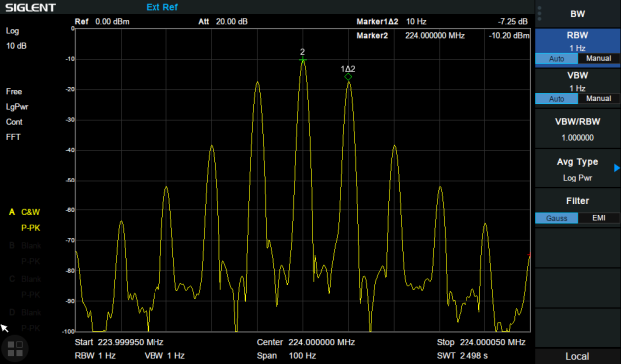

1 Hz Minimum Resolution Bandwidth
The minimal resolution bandwidth (RBW) of 1 Hz makes it easy to clearly observe and separate signals with minimal frequency differences.
Super-Low Displayed Average Noise Level
The SSA3000X Plus series is designed around a low noise, high-performance RF front-end which offers low background noise (DANL) and a standard built-in preamplifier. The device's high sensitivity improves weak signal monitoring.

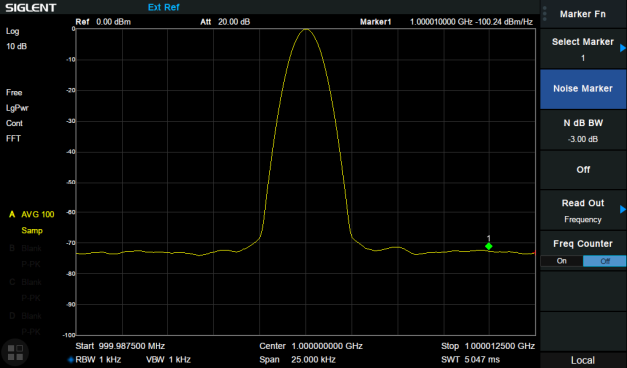

Outstanding Phase Noise Performance
The excellent phase noise of < -98 dBc/Hz (fc = 1 GHz, @10 kHz) enables users to evaluate most synthesizers and signal generators.

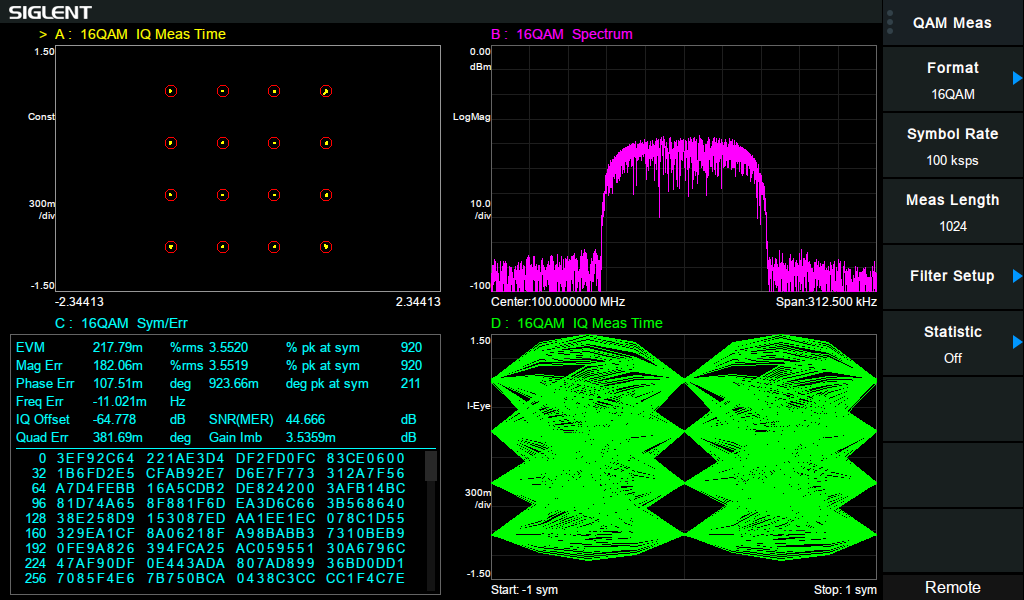

Modulation Analysis Mode (AMA/DMA Option)
Vector signal modulation analysis for analog (AM/FM) and digital (ASK/FSK/PSK/MSK/QAM) signals. Supports Error Vector Magnitude (EVM) evaluation as well as data recording to the computer and recorded data playback together with a Siglent SSG5000X HF signal generator.

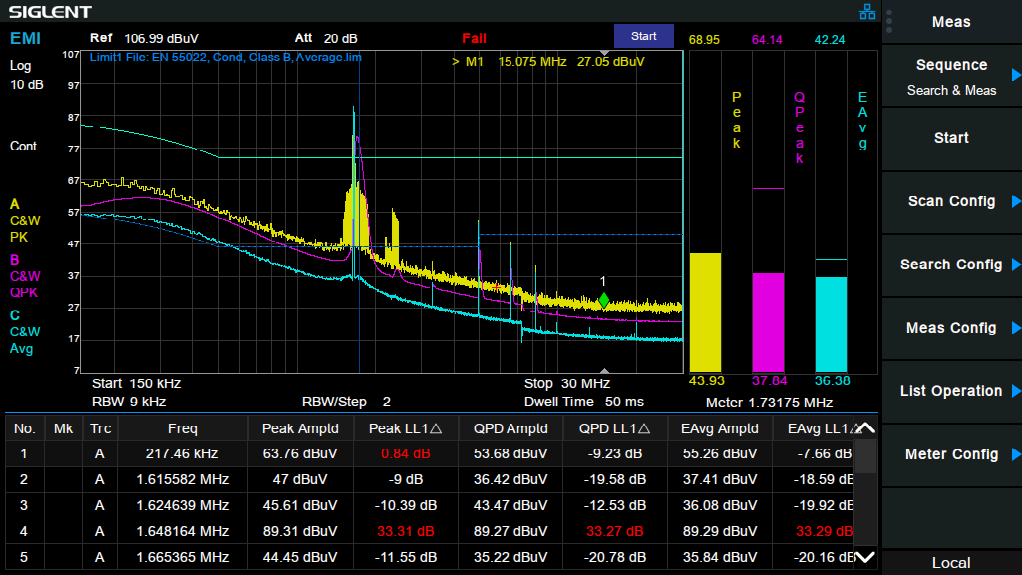

EMI Measurement Mode (EMI Option)
Extensive EMI pre-compliance measurements with CISPR 16-1-1 EMI filter and built-in CISPR band A/B/C/D presets for easy comparison with regulatory emission limits. Supports Peak, Quasi-Peak and EMI Average detectors and multiple pre-stored standards. Bar graphs and continuous signal monitoring allow for quick detection of the maximum amplitude.

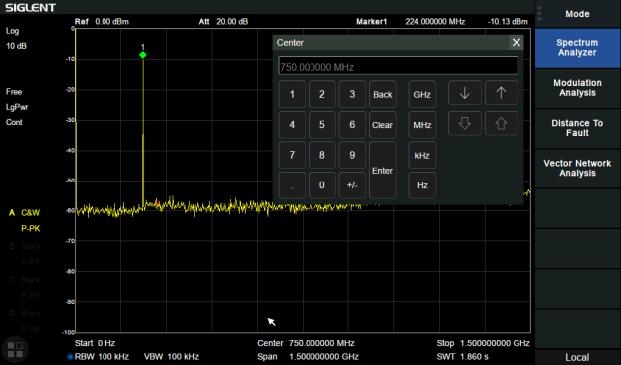

Large Multi-Touch Screen
A 10.1" high-resolution screen with multi-touch functionality ensures easy and efficient operation. Mouse and keyboard connection is possible via USB.

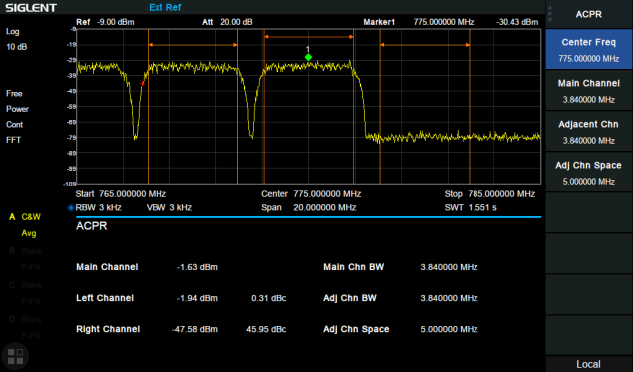

Advanced Power Measurement (AMK Option)
Directly display ACPR, Channel Power, Occupied Bandwidth and Time-Domain Power.

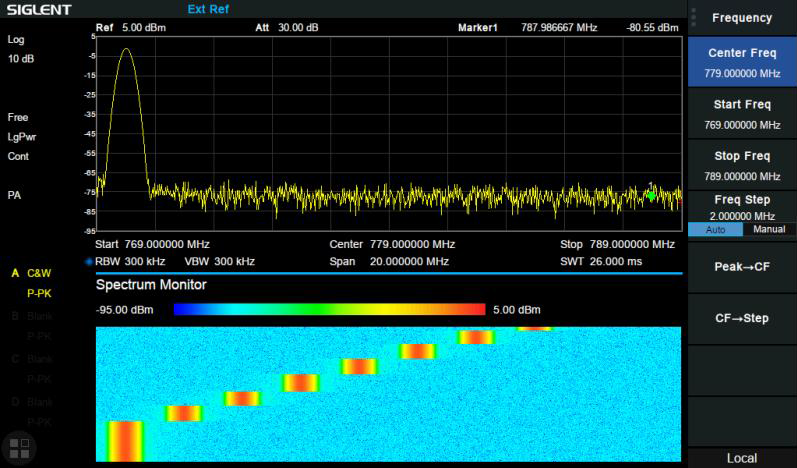

Spectrum Monitor (AMK Option)
Observe the power distribution of the signal through the color temperature of the spectrogram. The color temperature indicates the power of the distributed frequency.

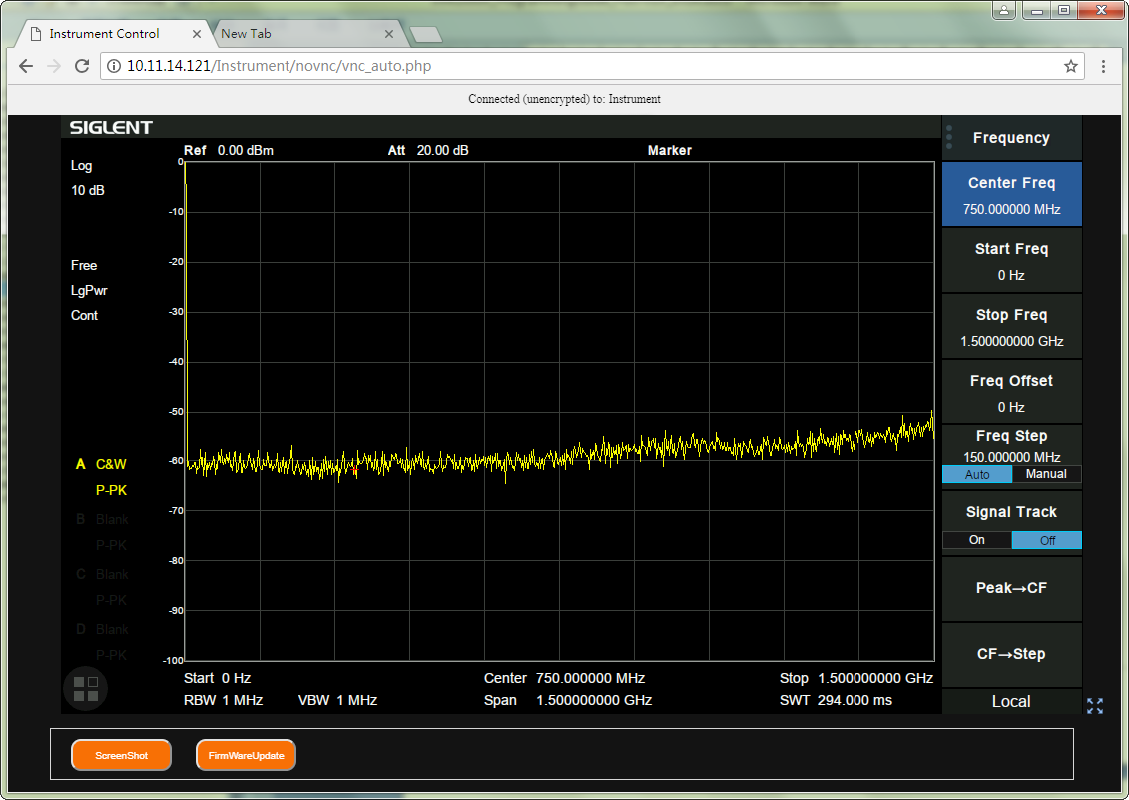

Browser Remote Control
Remotely monitor and control your SSA3000X Plus over the network with a web browser.

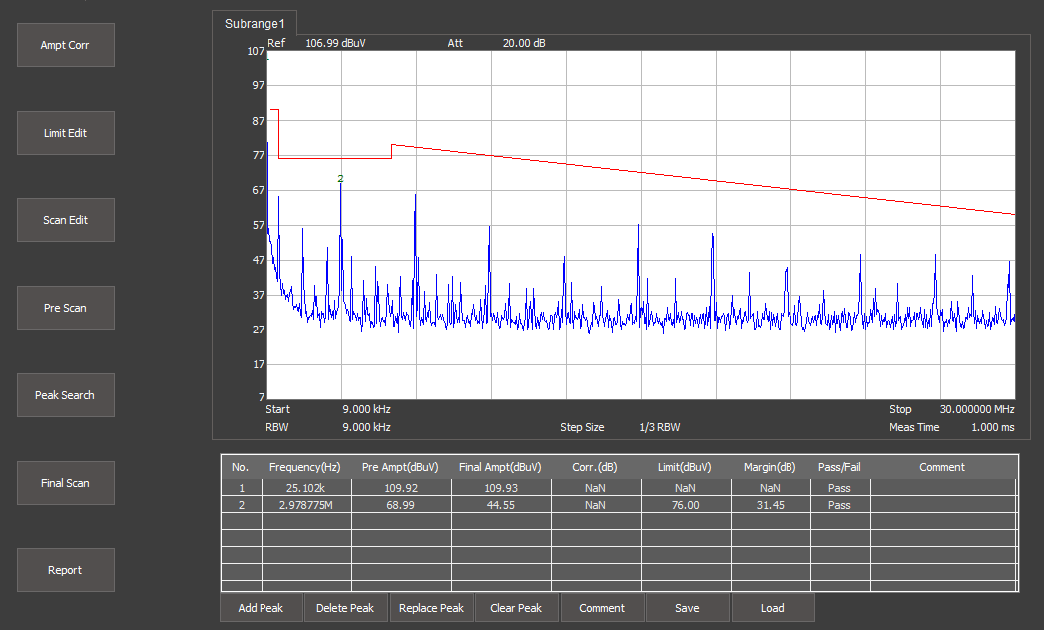

EasySpectrum PC Software
Pre-program multiple scan events into one report. Easily configure limit lines, correction tables and quickly find peaks.

Shipping weight: 5.86 Kg
