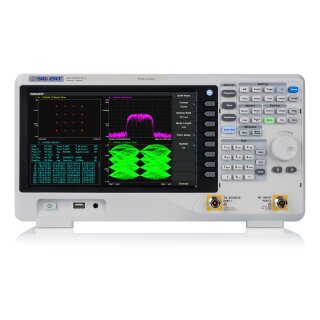

Siglent's SSA3000X Plus family of spectrum analyzers offer a frequency range of 9 KHz to a maximum of 7.5 GHz. With their light weight, small size, and friendly user interface, the SSA3000X Plus present a bright easy to read touch display, powerful and reliable automatic measurements, and plenty of impressive features. Applications are many, but include research and development, education, production, maintenance, and many more.
Model Overview
|
SSA3015X Plus |
SSA3021X Plus |
SSA3032X Plus |
SSA3075X Plus |
| Frequency Range |
9 kHz .. 1.5 GHz |
9 kHz .. 2.1 GHz |
9 kHz .. 3.2 GHz |
9 kHz .. 7.5 GHz |
| Preamplifier |
|
| Tracking Generator |
5 MHz .. 1.5 GHz |
100 kHz .. 2.1 GHz |
100 kHz .. 3.2 GHz |
100 kHz .. 7.5 GHz |
| Resolution Bandwidth (RBW) |
1 Hz .. 1 MHz |
1 Hz .. 3 MHz |
| Displayed Average Noise Level (DANL) |
-156 dBm/Hz |
-161 dBm/Hz |
-165 dBm/Hz |
| Phase Noise |
< -99 dBc/Hz |
< -98 dBc/Hz |
| Amplitude Precision |
< 1.2 dB |
< 0.7 dB |
| Multi-Touchscreen |
|
| Web Interface |
|
|
SSA3015X Plus |
SSA3021X Plus |
SSA3032X Plus |
SSA3075X Plus |
| Screen |
10.1" TFT, 1024x600 Pixel |
| Input Device Support |
Maus, Tastatur |
| Interfaces |
LAN, USB Device, USB-Host, USB-GPIB optional |
Advanced Measurement
(AMK Option) |
CHP, ACPR, OBW, CNR, Harmonic, TOI, Monitor |
Analog Modulation Analysis
(AMA Option) |
AM, FM |
Digital Modulation Analysis
(DMA Option) |
ASK, FSK, MSK, PSK, QAM |
Reflection Measurement
(Refl Option) |
VSWR measurement using reflection bridge |
EMI Measurement
(EMI Option) |
EMI Filter and Quasi-Peak Detector, Log Scale and Limit Line |
Extended Specifications
Features
1 Hz Minimum Resolution Bandwidth
The minimal resolution bandwidth (RBW) of 1 Hz makes it easy to clearly observe and separate signals with minimal frequency differences.
Super-Low Displayed Average Noise Level
The SSA3000X Plus series is designed around a low noise, high-performance RF front-end which offers low background noise (DANL) and a standard built-in preamplifier. The device's high sensitivity improves weak signal monitoring.
Outstanding Phase Noise Performance
The excellent phase noise of < -98 dBc/Hz (fc = 1 GHz, @10 kHz) enables users to evaluate most synthesizers and signal generators.
Modulation Analysis Mode (AMA/DMA Option)
Vector signal modulation analysis for analog (AM/FM) and digital (ASK/FSK/PSK/MSK/QAM) signals. Supports Error Vector Magnitude (EVM) evaluation as well as data recording to the computer and recorded data playback together with a Siglent SSG5000X HF signal generator.
EMI Measurement Mode (EMI Option)
Extensive EMI pre-compliance measurements with CISPR 16-1-1 EMI filter and built-in CISPR band A/B/C/D presets for easy comparison with regulatory emission limits. Supports Peak, Quasi-Peak and EMI Average detectors and multiple pre-stored standards. Bar graphs and continuous signal monitoring allow for quick detection of the maximum amplitude.
Large Multi-Touch Screen
A 10.1" high-resolution screen with multi-touch functionality ensures easy and efficient operation. Mouse and keyboard connection is possible via USB.
Advanced Power Measurement (AMK Option)
Directly display ACPR, Channel Power, Occupied Bandwidth and Time-Domain Power.
Spectrum Monitor (AMK Option)
Observe the power distribution of the signal through the color temperature of the spectrogram. The color temperature indicates the power of the distributed frequency.
Browser Remote Control
Remotely monitor and control your SSA3000X Plus over the network with a web browser.
EasySpectrum PC Software
Pre-program multiple scan events into one report. Easily configure limit lines, correction tables and quickly find peaks.
More Features
