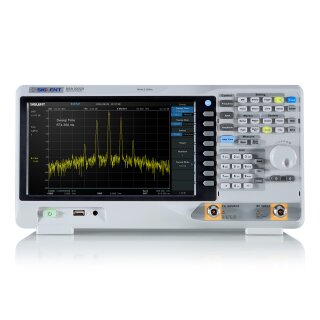

Siglent SSA3032X Spectrum Analyzer (Demo Unit)
Description
Promotion: Free Tracking Generator option!
Siglent's SSA3000X family of spectrum analyzers offer a frequency range of 9 KHz to 2.1 GHz / 3.2 GHz. With their light weight, small size, and friendly user interface, the SSA3000X present a bright easy to read display, powerful and reliable automatic measurements, and plenty of impressive features. Applications are many, but include research and development, education, production, maintenance, and many more.
Model Overview
| SSA3021X | SSA3032X | |
|---|---|---|
| Frequency Range | 9 kHz .. 2.1 GHz | 9 kHz .. 3.2 GHz |
| Preamplifier | ||
| Tracking Generator | 100 kHz .. 2.1 GHz | 100 kHz .. 3.2 GHz |
| Resolution Bandwidth (RBW) | 1 Hz .. 1 MHz | |
| Displayed Average Noise Level (DANL) | -161 dBm/Hz | |
| Phase Noise | < -98 dBc/Hz@1 GHz, 10 kHz offset | |
| Amplitude Precision | < 0.7 dB | |
Features

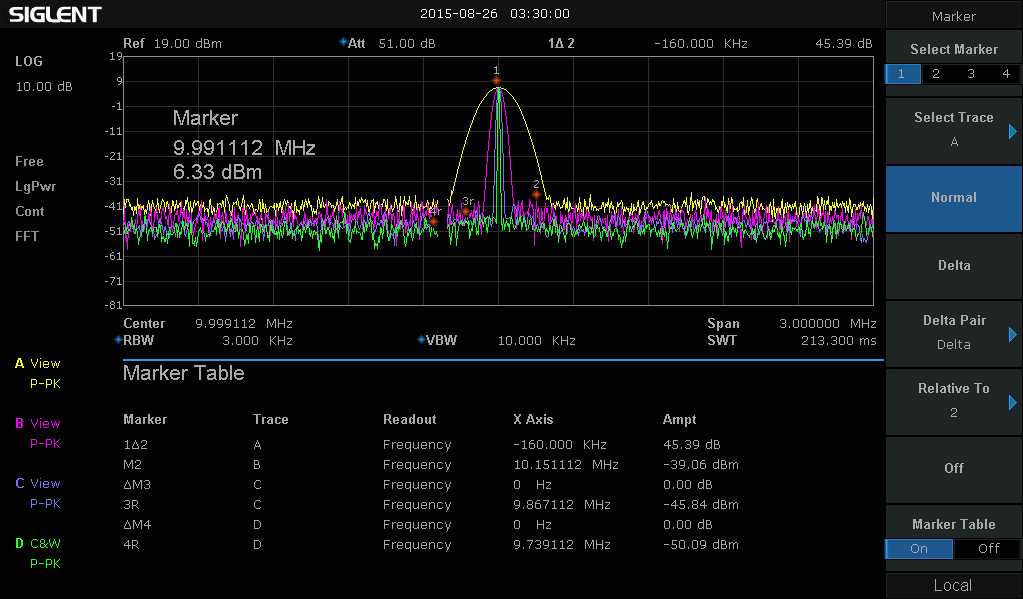

Easy to operate, supports four independent traces and cursors

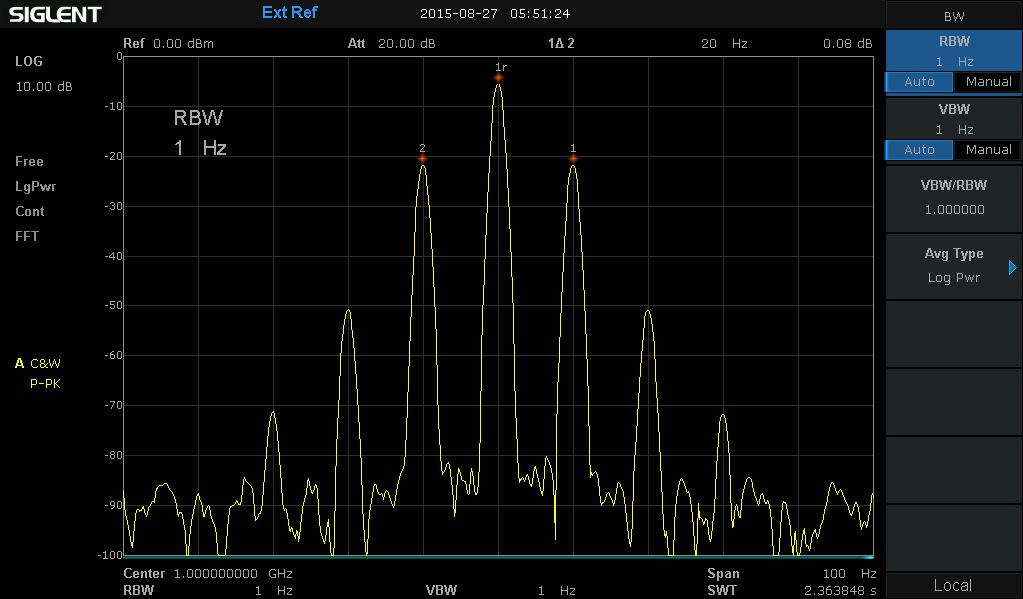

1 Hz Minimum Resolution Bandwidth (RBW)

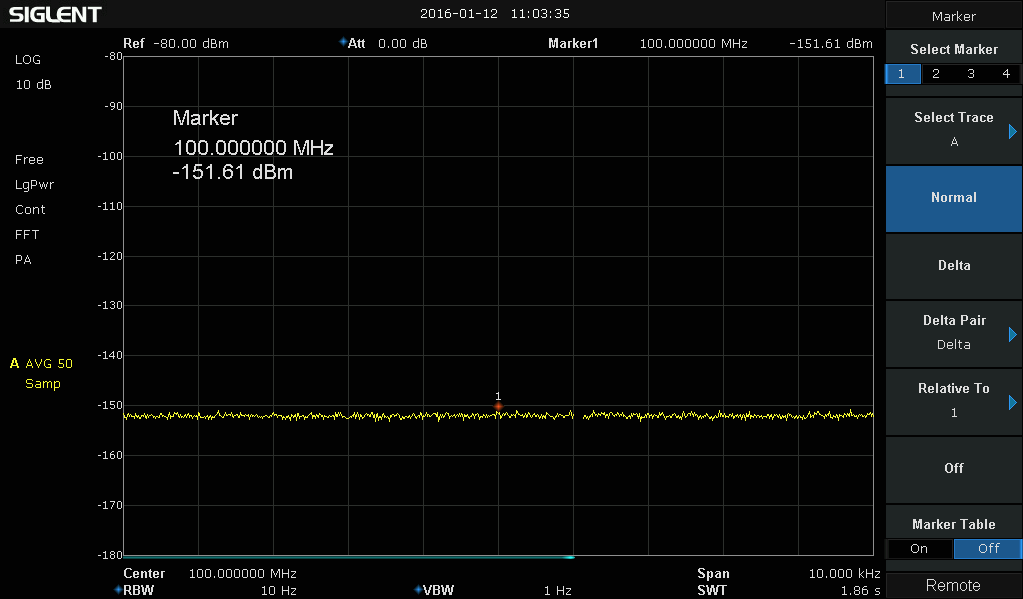

-151 dBm Displayed Average Noise Level
(RBW=10 Hz)

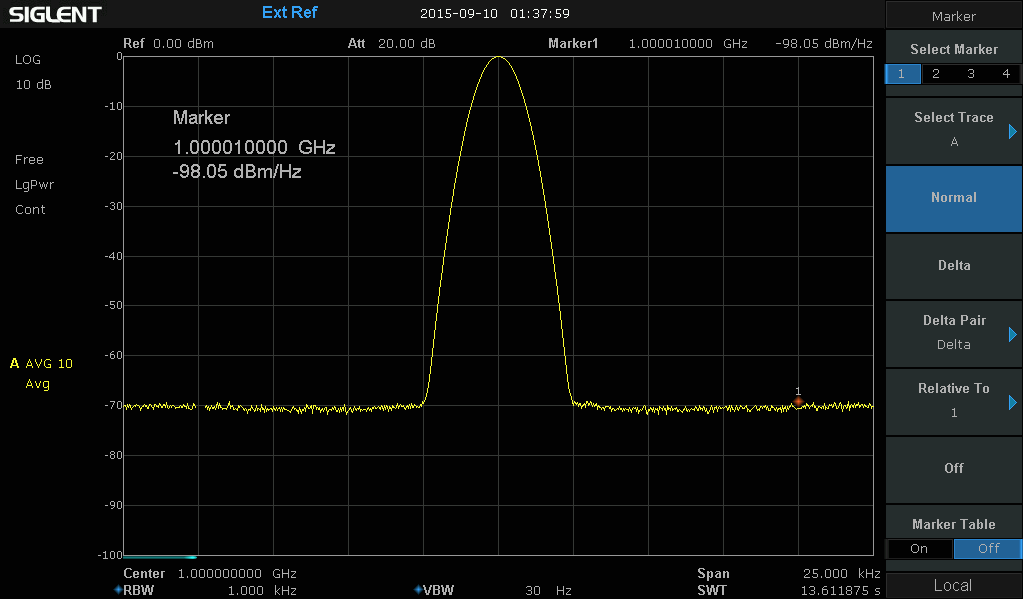

Phase noise -98 dBc/Hz@ 1 GHz, offset 10 kHz

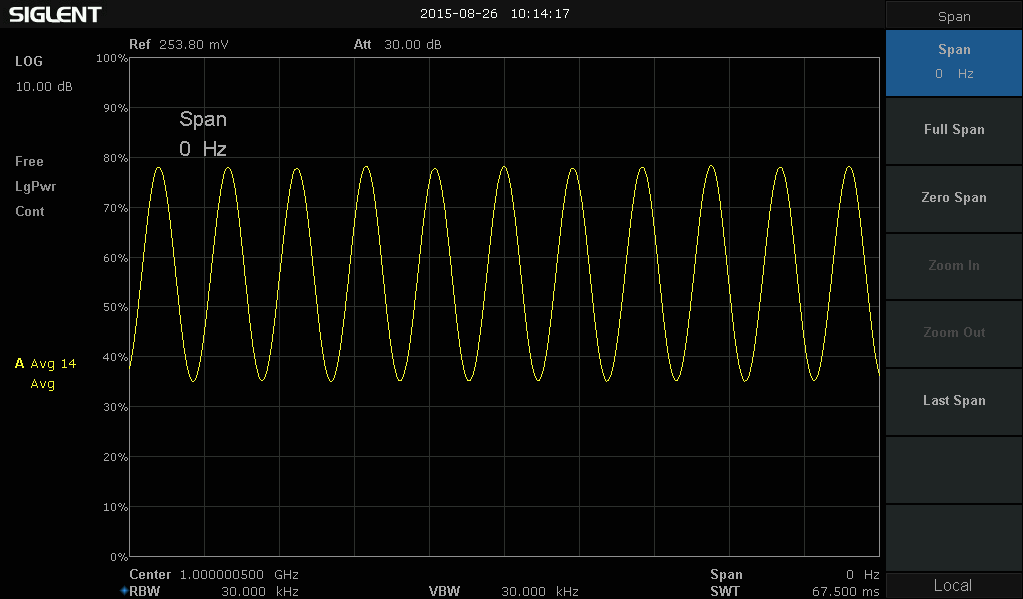

Zero span and demodulation capabilities

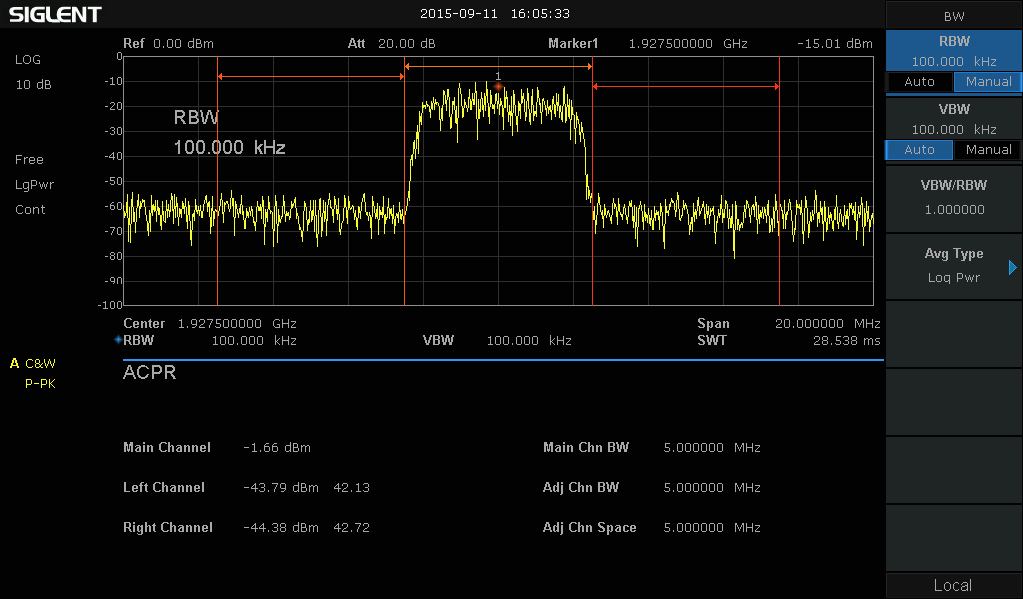

Advanced measurement kit
includes on-screen ACPR measurements (option AMK-SSA3000X)

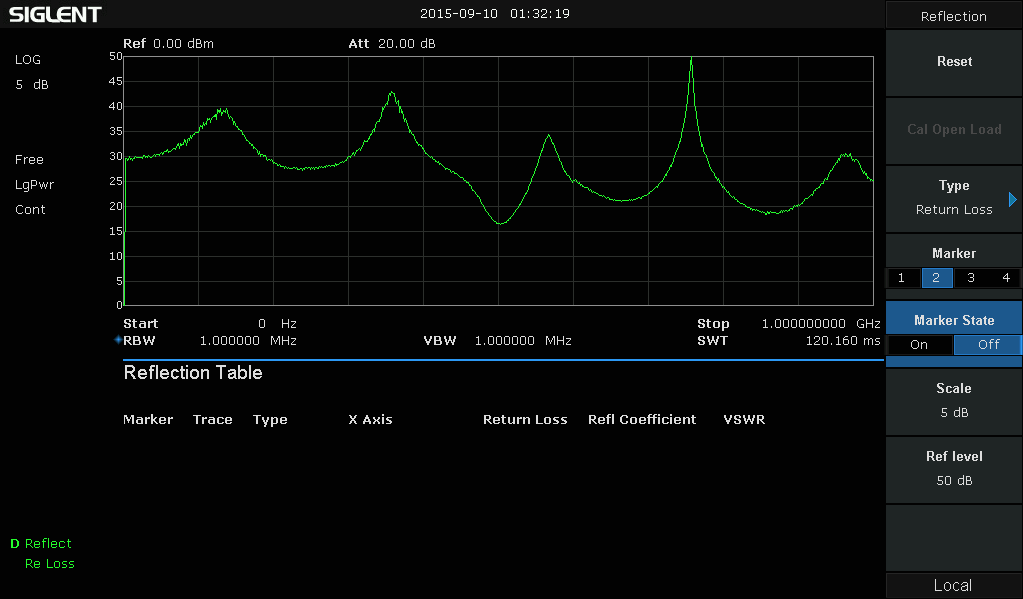

On-screen VSWR/Return Loss measurements
with the reflection measurement option (option REFL-SSA3000X
EMI filter and Quasi-Peak detector
following CISPR 16 (option EMI-SSA3000X)
| Shipping weight: | 5.86 Kg |
Siglent UKitSSA3X Spectrum Analyzer Accessory Kit
279.00 €
incl. 19% VAT
*
234.45 €
excl. VAT
On stock
