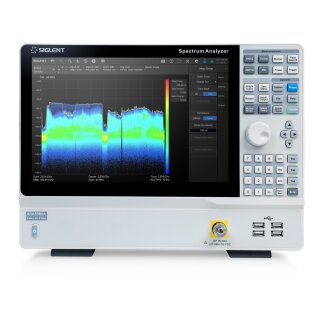

Siglent SSA5083A Spectrum Analyzer

The SIGLENT SSA5000A spectrum analyzers are powerful and flexible tools for complex RF spectrum and signal analysis. With a capability of real-time spectrum analysis, the analyzer can provide multi-dimensions data displays, advanced triggering to solve modern RF spectrum challenges, like channel power measurement, hopping frequency, conflict channel, spectrum interference.

Applications include broadcast monitoring/evaluation, cellular site, IoT, wlan and bluetooth surveying, research and development, education, production, and maintenance.

Features and Benefits

• Spectrum Analyzer Frequency Range from 9 kHz up to 13.6 GHz/26.5 GHz
• -165 dBm/Hz Displayed Average Noise Level (Typ.)
• -105 dBc/Hz@1 GHz,10 kHz offset SSB Phase Noise (Typ.)
• 25 MHz/40 MHz Analysis Bandwidth
• 100% POI 7.20 µs, Dynamic Range 60 dB, Multi-view for Density, Spectrogram and PvT
• Channel power, ACPR, OBW, Harmonic, TOI measurement etc.
• Analog Modulation Analysis and Vector Digital Modulation Analysis
• 12.1 inch Multi-Touch Screen, HDMI output
• Web Browser Remote Control on PC and Mobile Terminals and File Operation

Model Overview

Features

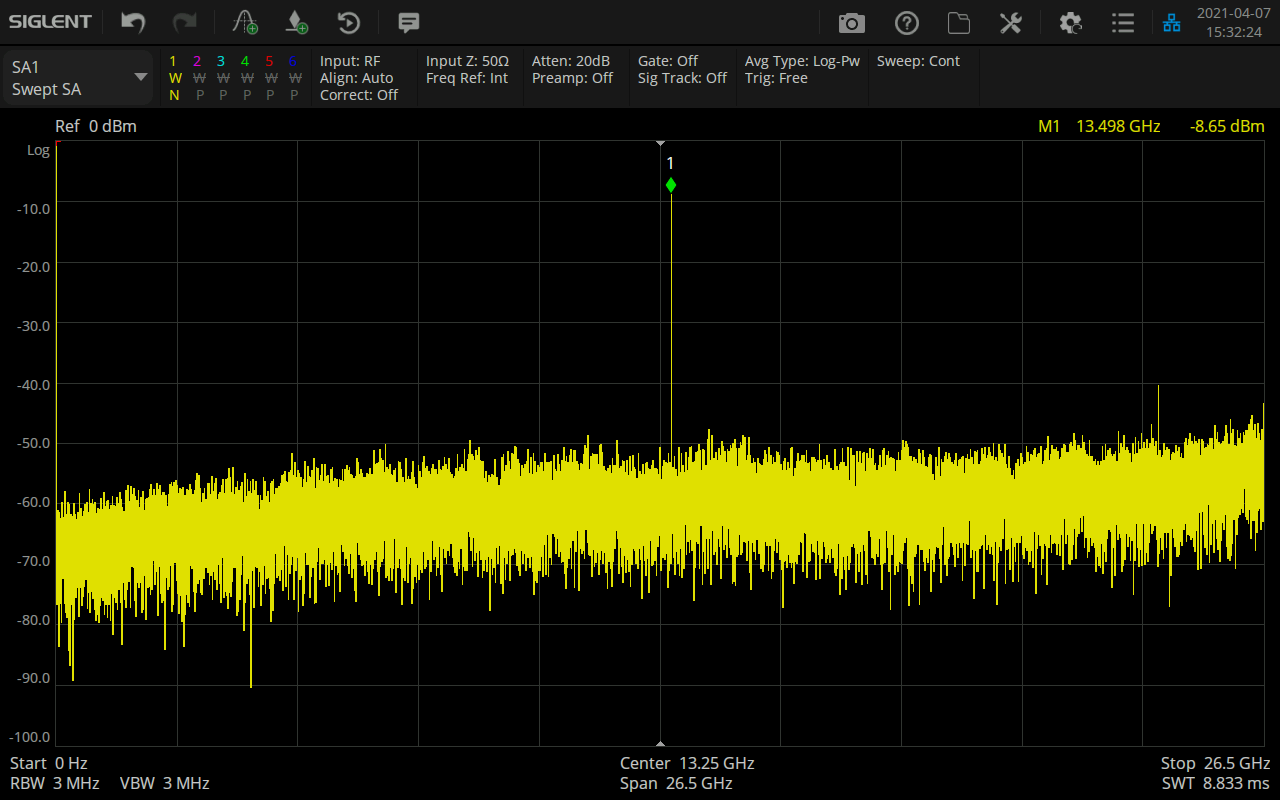

Spectrum Analyzer Mode

Various RF spectrum measurement and analysis

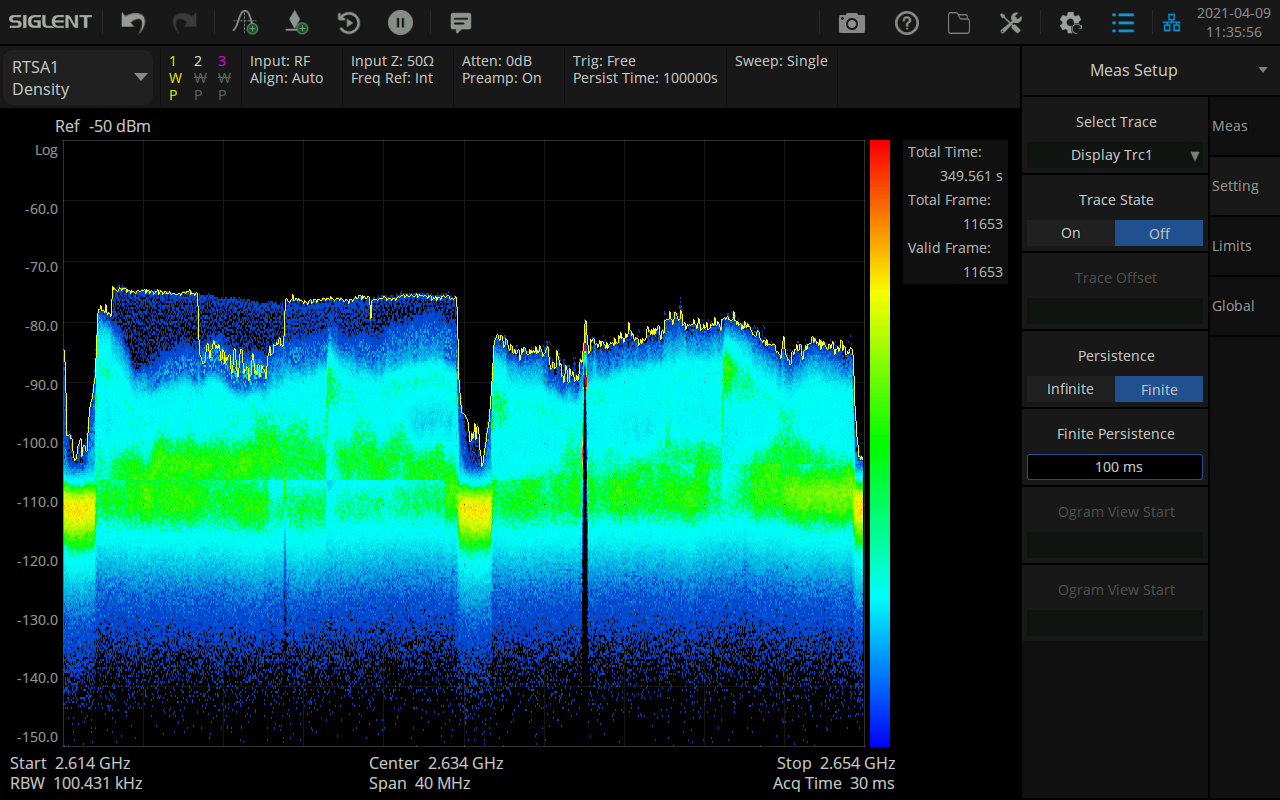

Real Time Analysis Mode

Multi-view and dimensions to monitor complex signals

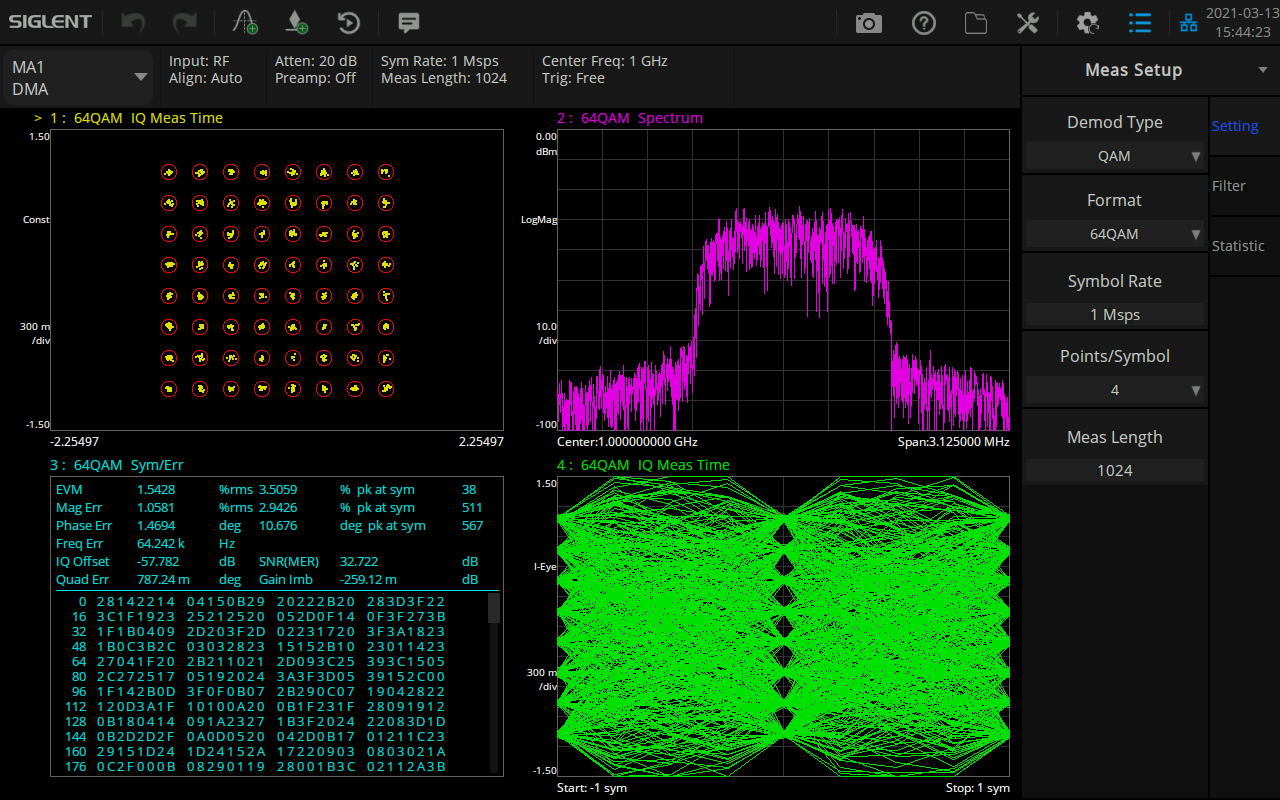

Modulation Analysis Mode

AM/FM/PM analog modulation, and ASK/FSK/PSK/MSK/QAM digital modulation analysis
