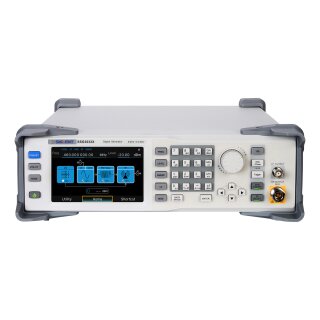

Siglents SSG3000X series of signal generators have a frequency range of 9 kHz to 2.1 GHz/3.2 GHz. They provide normal analog modulation such as AM, FM, and PM. Also pulse modulation and pulse train generator are provided. In addition, when used with baseband generator such as SDG6000X, they can generate IQ modulated signals. With their high accuracy and pure outputs the SSG3000X series are the right choice for research and developement, education, and manufacturing.
Model Overview
Extended Specifications
|
|
SSG3021X |
SSG3032X |
SSG3021X-IQE |
SSG3032X-IQE |
| Frequency Range |
CW Mode |
9 kHz . . 2.1 GHz |
9 kHz . . 3.2 GHz |
9 kHz . . 2.1 GHz |
9 kHz . . 3.2 GHz |
| IQ Mode |
|
10 MHz . . 2.1 GHz |
10 MHz . . 3.2 GHz |
| Frequency Resolution |
|
0.01 Hz |
| Amplitude Resolution |
|
0.01 dB |
| Level accuracy |
|
0.7 dB (typ.) |
| Phase noise |
|
-110 dBc/Hz @1 GHz ,offset 20 kHz (typ.) |
|
|
SSG3021X |
SSG3032X |
SSG3021X-IQE |
SSG3032X-IQE |
| Display |
|
5" TFT LCD capacitance touch screen, RGB (800*480) |
| Setting Time |
ALC On |
<5 ms (typ.) |
| ALC Off (S&H) |
<10 ms (typ.) |
| Reference Frequency |
|
10.000000 MHz |
| Initial Calibration Accuracy |
|
<0.2 ppm |
| Temperature Stability |
|
<1 ppm/year, 0° . . 50° |
| Frequency aging rate |
|
<0.5 ppm/first year, 3.0 ppm/20 years |
| Level setting range |
9 kHz ≤f< 100 kHz |
-110 dBm . . +9 dBm |
| 100 kHz ≤f< 1 MHz |
-110 dBm . . +15 dBm |
| 1 MHz ≤f≤3.2 GHz |
-110 dBm . . +20 dBm |
| VSWR |
1 MHz ≤f≤ 3.2 GHz |
≤1.8 (nom.) |
| Maximum permissible DC voltage |
|
50 V |
| Maximum reverse input power |
1 MHz ≤f≤ 3.2 GHz |
+30 dBm |
| Dimensions |
WxHxD |
338 x 113 x 369 mm |
| Weight |
|
4.84 kg |
Box Contents
- Power Supply
- Power Cord
- USB Cable
- Quick Start Guide
