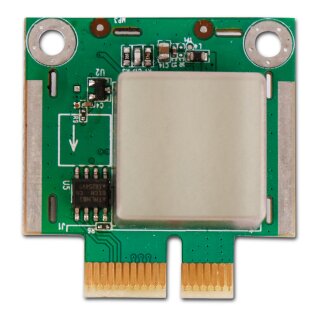

Siglent SSG5000X_OCXO High Accuracy OCXO Clock Source

Artno.: SL3-650002
Manufacturers: Siglent

HF signal generator, ,

1.236,00 €

incl. 19% VAT

(1.038,66 € excl. VAT)

Out of stock

Siglent's SSG5000X series of HF signal generators can generate analog and vector signals, and have a frequency range of 9 kHz to 4 GHz/6 GHz.

They feature the industry-leading performance in phase noise, spectral purity, bandwidth, EVM and output power. The internal IQ modulation generator and waveform playback function make it easy to create even the most complex signal types. They also cover the most important RF bands for digital wireless communication and include standard waveform files.

The Siglent SSG5000X are powerful and cost effective signal sources that are ideal for R&D, education, and manufacturing.

Model Overview

Extended Specifications

		SSG5040X	SSG5060X	SSG5040X-V	SSG5060X-V
Frequency Range	CW Mode	9 kHz .. 4 GHz	9 kHz .. 6 GHz	9 kHz .. 4 GHz	9 kHz .. 6 GHz
Frequency Range	IQ Mode			10 MHz .. 4 GHz	10 MHz .. 6 GHz
Frequency Resolution		0.001 Hz
Amplitude Resolution		0.01 dB
Total Amplitude Accuracy		<0.7 dB
Phase Noise		-120 dBc/Hz @1 GHz, 20 kHz Offset (typ.)
Level Setting Range		-140 dBm .. +26 dBm

		SSG5040X	SSG5040X-V
Level Of Performance Range		-130 dBm .. +20 dBm
Frequency Switching Speed		< 10 ms
Harmonics	1 MHz .. 6 GHz	< -30 dBc
Non-Harmonics	1 MHz .. 4 GHz	< -65 dBc
Pulse On/Off Ratio		> -70 dB
Modulation	AM/FM/PM
	Pulse
	IQ		QAM/FSK/ASK/PSK/Multitone
Pulse Train Generator		optional
Power meter measurement and control
Bandwidth	Internal I or Q		37.5 MHz (75 MHz optional)
Bandwidth	RF (I+Q)		75 MHz (150 MHz optional)
File Playback	Protocols	5G_NR/LTE/WLAN/WCDMA/GSM/Bluetooth
File Playback	Capacity	200 MSa
Internal Storage Space		4 GB
Integrated Web Server
Interfaces	USB Device
	USB Host
	LAN
	GPIB
Display		5" Color LCD (800 x 480 Pixel)
Touch Screen
Mouse/Keyboard Support

Package Contents

Device
Power Cord
USB Cable
Calibration Certificate
Quick Start Guide

Features

Double Pulse Modulation

Flexible generation of single or double pulses.

Pulse Train Generator

Generation of pulse trains with an on/off ratio of >70 dB.

Cable Loss Compensation

Use an optional external USB power sensor (R&S Z series, Keysight U series) to easily compensate cable losses.

Powerful Custom Mode

Create waveforms that meet desired requirements quickly. The SSG5000X-V can directly output common IQ modulation signals like QAM, PSK, ASK, FSK with up to 120 Msps symbol rate.

Multi-Tone Mode

Multi-tone signals consist of several sine wave of different frequencies. The SSG5000X supports up to 20 tones. This is useful for audio measurements, amplifier and receiver non-linear distortion tests and ground and satellite communications.

Extensive ARB Mode

Rapid development in consumer electronics require a variety of communication protocols to verify wireless products.

Built-in Protocol Files

The SSG5000X has built-in common protocol files for 5G NR, LTE, WLAN, WCDMA, GSM and Bluetooth.

Real-Time AWGN Generation

Add real-time AWGN (Additive White Gaussian Noise) to the test signal when testing receiver performance to simulate various environments. AWGN is used to mimic the effect of many random influences like thermal noise.

Real-Time AWGN Generation

Clip the peak power of your signal and display the CCDF curve (Complementary Cumulative Distribution Function).
