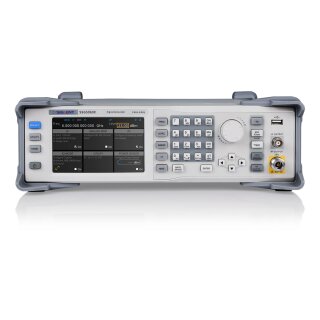

Siglent SSG5060X RF Signal Generator
Description
Siglent's SSG5000X series of HF signal generators can generate analog and vector signals, and have a frequency range of 9 kHz to 4 GHz/6 GHz.
They feature the industry-leading performance in phase noise, spectral purity, bandwidth, EVM and output power. The internal IQ modulation generator and waveform playback function make it easy to create even the most complex signal types. They also cover the most important RF bands for digital wireless communication and include standard waveform files.
The Siglent SSG5000X are powerful and cost effective signal sources that are ideal for R&D, education, and manufacturing.
Model Overview
Extended Specifications
| SSG5040X | SSG5060X | SSG5040X-V | SSG5060X-V | ||
|---|---|---|---|---|---|
| Frequency Range | CW Mode | 9 kHz .. 4 GHz | 9 kHz .. 6 GHz | 9 kHz .. 4 GHz | 9 kHz .. 6 GHz |
| IQ Mode | 10 MHz .. 4 GHz | 10 MHz .. 6 GHz | |||
| Frequency Resolution | 0.001 Hz | ||||
| Amplitude Resolution | 0.01 dB | ||||
| Total Amplitude Accuracy | <0.7 dB | ||||
| Phase Noise | -120 dBc/Hz @1 GHz, 20 kHz Offset (typ.) | ||||
| Level Setting Range | -140 dBm .. +26 dBm | ||||
| SSG5040X | SSG5060X | SSG5040X-V | SSG5060X-V | ||
|---|---|---|---|---|---|
| Level Of Performance Range | -130 dBm .. +20 dBm | ||||
| Frequency Switching Speed | < 10 ms | ||||
| Harmonics | < -30 dBc (1 MHz .. 6 GHz) | ||||
| Non-Harmonics | < -65 dBc (1 MHz .. 4 GHz) | ||||
| Pulse On/Off Ratio | > -70 dB | ||||
| Modulation | AM/FM/PM | ||||
| Pulse | |||||
| IQ | QAM/FSK/ASK/PSK/Multitone | ||||
| Pulse Train Generator | optional | ||||
| Power meter measurement and control | |||||
| Bandwidth | Internal I or Q | 37.5 MHz (75 MHz optional) | |||
| RF (I+Q) | 75 MHz (150 MHz optional) | ||||
| File Playback | 5G_NR/LTE/WLAN/WCDMA/GSM/Bluetooth | ||||
| Internal Storage Space | 4 GB | ||||
| Interfaces | USB Host, USB Device, LAN, GPIB (optional) | ||||
| Integrated Web Server | |||||
| Display | 5" Color LCD (800 x 480 Pixel) | ||||
| Touch Screen | |||||
| Mouse/Keyboard Support | |||||
Package Contents
- Device
- Power Cord
- USB Cable
- Calibration Certificate
- Quick Start Guide
Features
Double Pulse Modulation
Flexible generation of single or double pulses.
Pulse Train Generator
Generation of pulse trains with an on/off ratio of >70 dB.
Cable Loss Compensation
Use an optional external USB power sensor (R&S Z series, Keysight U series) to easily compensate cable losses.
Powerful Custom Mode
Create waveforms that meet desired requirements quickly. The SSG5000X-V can directly output common IQ modulation signals like QAM, PSK, ASK, FSK with up to 120 Msps symbol rate.
Multi-Tone Mode
Multi-tone signals consist of several sine wave of different frequencies. The SSG5000X supports up to 20 tones. This is useful for audio measurements, amplifier and receiver non-linear distortion tests and ground and satellite communications.
Extensive ARB Mode
Rapid development in consumer electronics require a variety of communication protocols to verify wireless products.
Built-in Protocol Files
The SSG5000X has built-in common protocol files for 5G NR, LTE, WLAN, WCDMA, GSM and Bluetooth.
Real-Time AWGN Generation
Add real-time AWGN (Additive White Gaussian Noise) to the test signal when testing receiver performance to simulate various environments. AWGN is used to mimic the effect of many random influences like thermal noise.
CCDF Curve Display
Clip the peak power of your signal and display the CCDF curve (Complementary Cumulative Distribution Function).
