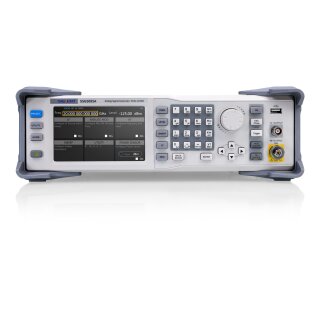

Siglent SSG5085A RF Signal Generator

The SSG5083A/SSG5085A microwave signal generator boasts an impressive output frequency range spanning from 9 kHz to 13.6/20 GHz, offering versatile functionality that includes support for AM, FM, and PM modulation, pulse modulation, pulse sequence generation, power meter control, and more. The inclusion of a standard OCXO reference hardware module ensures the delivery of high-precision and stable signal output. This instrument is meticulously crafted to cater to the needs of communication, aerospace, national defense, and various other industries. Its adaptability makes it suitable for a wide array of applications, including both research and development as well as production environments.

Key Features and Benefits

• Frequency Capability: Up to 13.6 GHz / 20 GHz
• Frequency Setting Resolution: 0.001 Hz
• Level Setting Range: -130 dBm to 25 dBm
• Low Phase Noise: -120 dBc / Hz @ 1 GHz, 20 kHz offset (typical)
• Level Error: ≤ 0.7 dB (typical)
• Modulation Versatility: Provides AM, FM, and PM analog modulation with internal, external, or Int+Ext sources
• Pulse Generation Options: Single pulse, double pulse, and pulse train generator (optional)
• Power Meter Control: The included kit facilitates easy power measurement, power output control, and line loss correction using a power meter
• Intuitive User Interface: Features a 5-inch TFT capacitive touch screen with support for mouse and keyboard
• Remote Control Options: Allows web browser remote control on both PC and mobile terminals
• Comprehensive Connectivity: Standard interfaces include USB Host, USB Device (USB TMC), LAN (VXI-11, Socket, Telnet). Optional interface: GPIB

Model Overview

Package Contents

• Device
• Power Cord
• USB Cable
• Calibration Certificate
• Quick Start Guide
