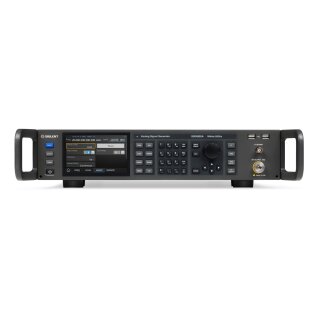

Siglent SSG6085A RF Signal Generator

The SSG6083A/SSG6085A microwave signal generator is a versatile instrument designed to meet the demanding requirements of communication, aerospace, national defense, and other fields. Its output frequency range spans from 100 kHz to 13.6/20/40 GHz, and it boasts advanced features and benefits that make it an ideal choice for various applications in R&D and production.

Key Features and Benefits

• Wide Frequency Range: Covering 100 kHz to 13.6 GHz/20 GHz/40 GHz
• High Precision: 0.01 Hz frequency setting resolution
• Flexible Power Range: Level setting from -130 dBm to 24 dBm
• Low Phase Noise: -135 dBc/Hz @ 1 GHz, 20 kHz offset (typical)
• Accurate Signal Control: Level error ≤ 0.7 dB (typical)
• Modulation Capabilities: Supports AM analog modulation with internal, external, or Int+Ext sources
• Pulse Generation: Single pulse, double pulse, and pulse train generator (option)
• Power Meter Integration: Kit enables easy power measurement, power output control, and line loss correction using a power meter
• Intuitive Interface: 5-inch TFT capacitive touch screen with support for mouse and keyboard
• Remote Control Options: Web browser remote control on PC and mobile terminals
• Versatile Connectivity: Standard interfaces include USB Host, USB Device (USB TMC), LAN (VXI-11, Socket, Telnet). Optional interface: GPIB

Equipped with a standard OCXO reference hardware module, this microwave signal generator ensures high precision and stability in signal output. Whether in research and development or production settings, the SSG6083A/SSG6085A excels in providing reliable and accurate signal generation for a wide range of applications.

Model Overview

Package Contents

• Device
• Power Cord
• USB Cable
• Calibration Certificate
• Quick Start Guide
• 2.92mm female to female adapter
