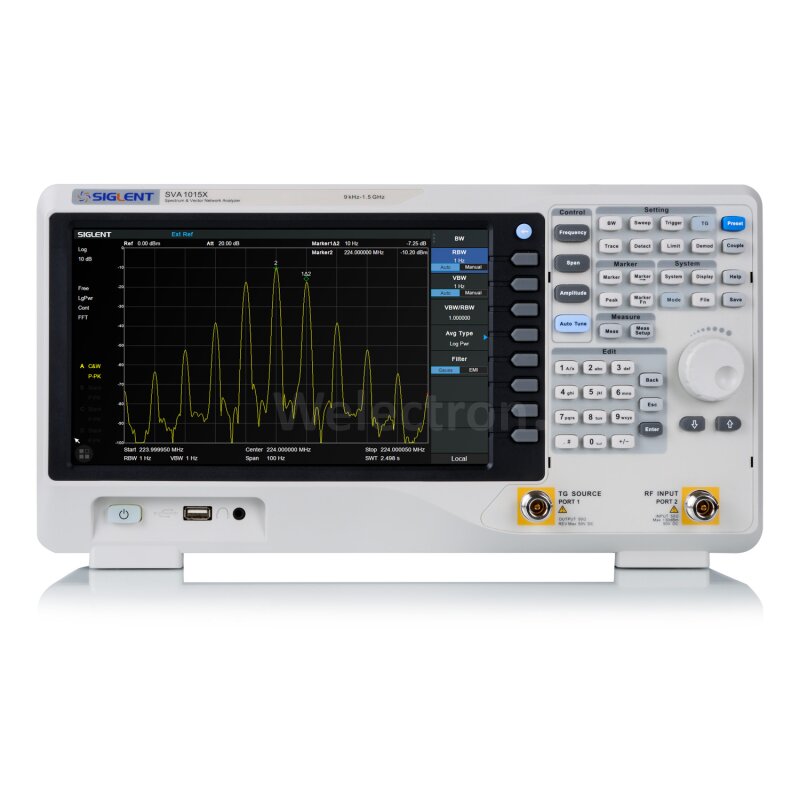

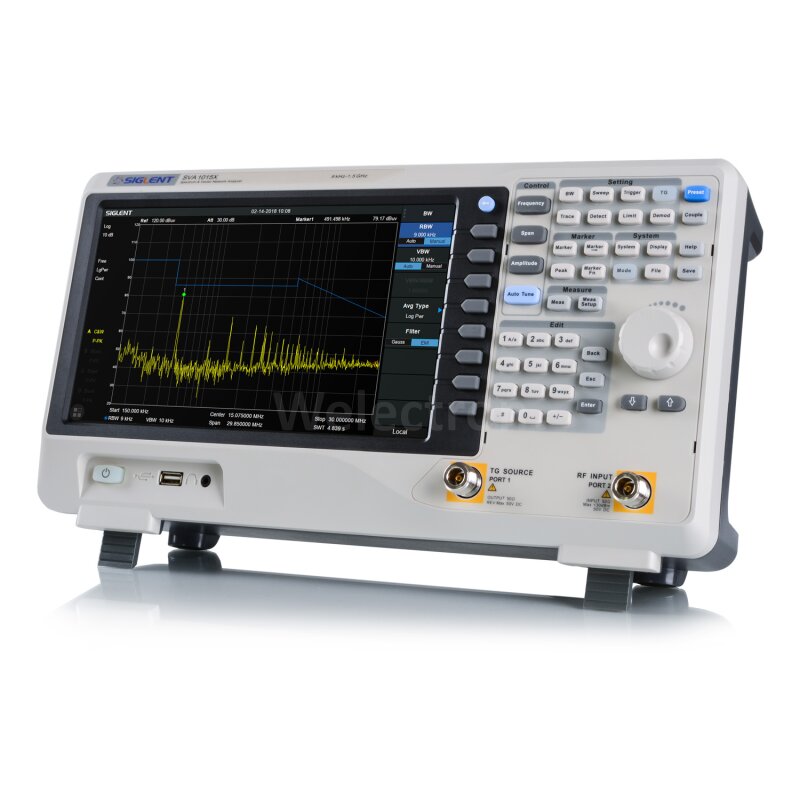

Siglent SVA1015X Vector Network Analyzer
Description
The Siglent SVA1000X series spectrum and vector network analyzers are powerful and flexible tools for broadcast and RF device testing. With a wide frequency range from 9 kHz to 1.5 GHz / 3.2 GHz / 7.5 Ghz, the analyzer delivers reliable automatic measurements and plenty of features.
Vector network analysis, a tracking generator and preamplifier are included as standard. A Frequency Domain Reflectometer based distance-to-fault locator (DTF) and a modulation analyzer can be added as optional features.
Applications include broadcast monitoring/evaluation, site surveying, EMI pre-compliance, research and development, education, production and maintenance.
Model Overview

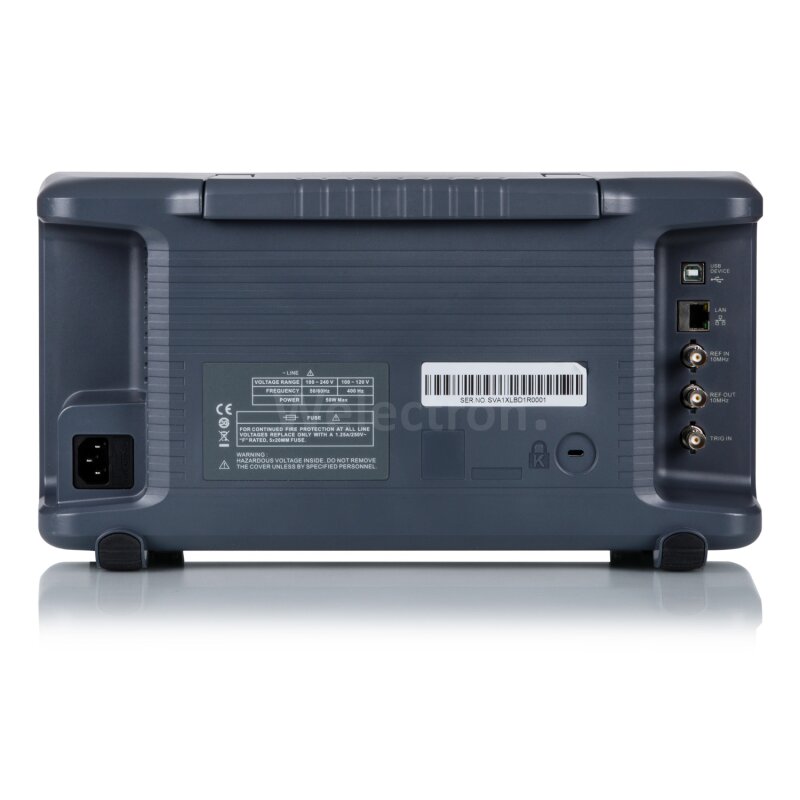

| SVA1015X | SVA1032X | SVA1075X | |
|---|---|---|---|
| Frequency Range | 9 kHz .. 1.5 GHz | 9 kHz .. 3.2 GHz | 9 kHz .. 7.5 GHz |
| Preamplifier | |||
| Tracking Generator | 5 MHz .. 1.5 GHz | 100 kHz .. 3.2 GHz | 100 kHz .. 7.5 GHz |
| Vector Network Analysis | 10 MHz .. 1.5 GHz | 100 kHz .. 3.2 GHz | 100 kHz .. 7.5 GHz |
| Resolution Bandwidth (RBW) | 1 Hz .. 1 MHz | 1 Hz .. 3 MHz | |
| Displayed Average Noise Level (DANL) | -156 dBm/Hz | -161 dBm/Hz | -165 dBm/Hz |
| Phase Noise | < -99 dBc/Hz @1 GHz, 10 kHz Offset | < -98 dBc/Hz @1 GHz, 10 kHz Offset | |
| Amplitude Precision | < 1.2 dB | < 0.7 dB | |
| Screen | 10,1" TFT, 1024x600 Pixel | ||
| Multi-Touchscreen | |||
| Interfaces | LAN, USB Device, USB Host, optional USB-GPIB | ||
Features
Large Multi-Touch Screen

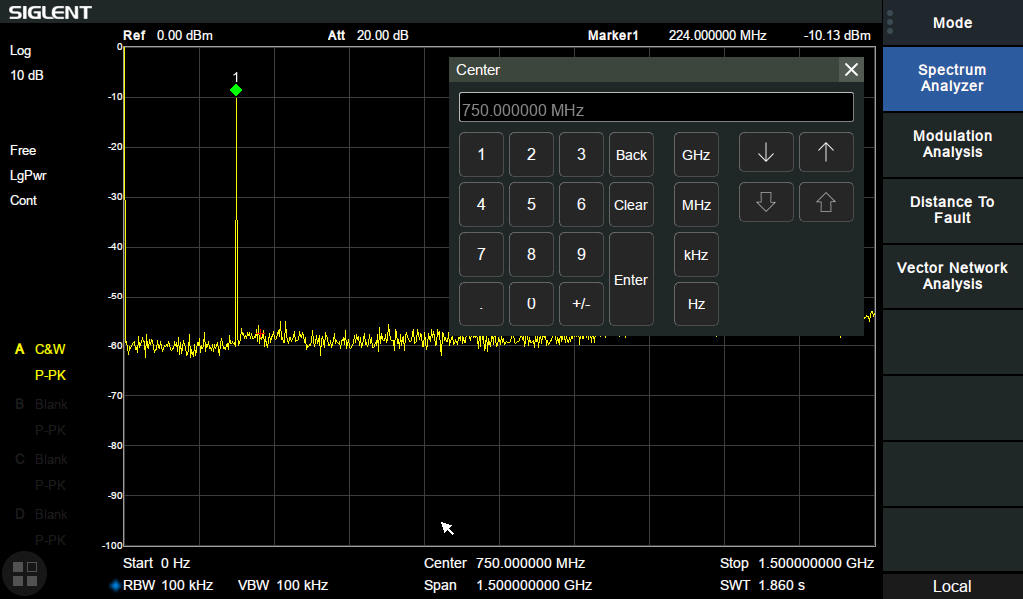

A 10.1" high-resolution screen with multi-touch functionality ensures easy and efficient operation. Mouse and keyboard connection is possible via USB.

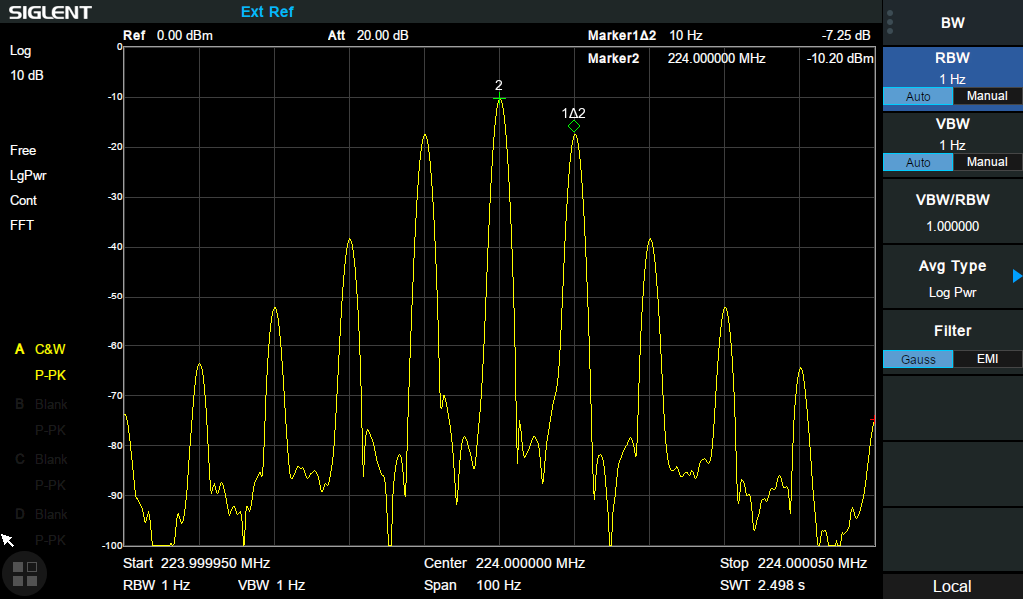

1 Hz Minimum Resolution Bandwidth
The minimal resolution bandwidth (RBW) of 1 Hz makes it easy to clearly observe and separate signals with minimal frequency differences.

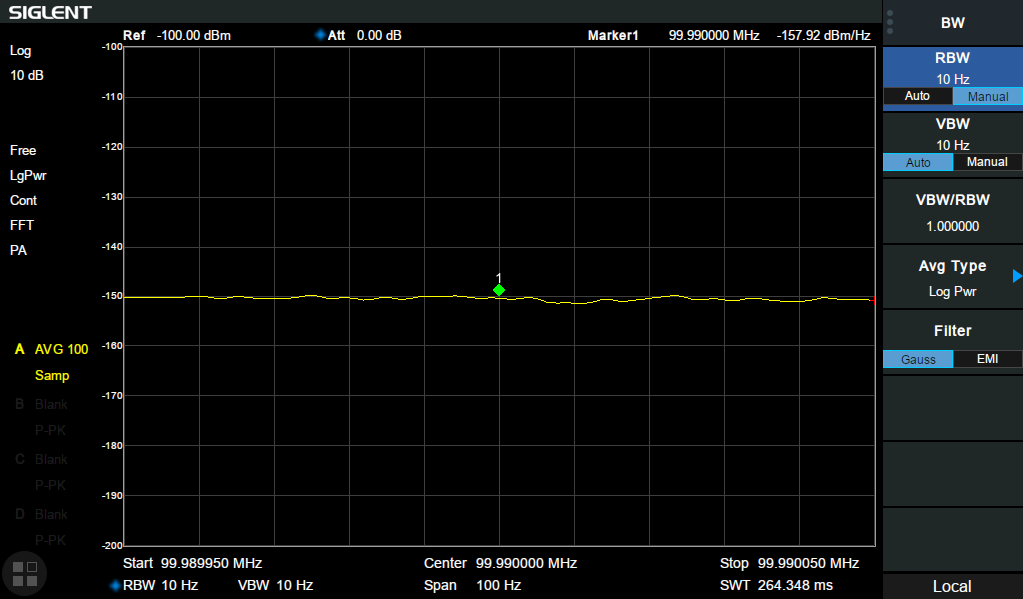

Super-Low Displayed Average Noise Level
The SVA1000X series is designed around a low noise, high-performance RF front-end which offers low background noise (DANL) and a standard built-in preamplifier. The device's high sensitivity improves weak signal monitoring.
Outstanding Phase Noise Performance

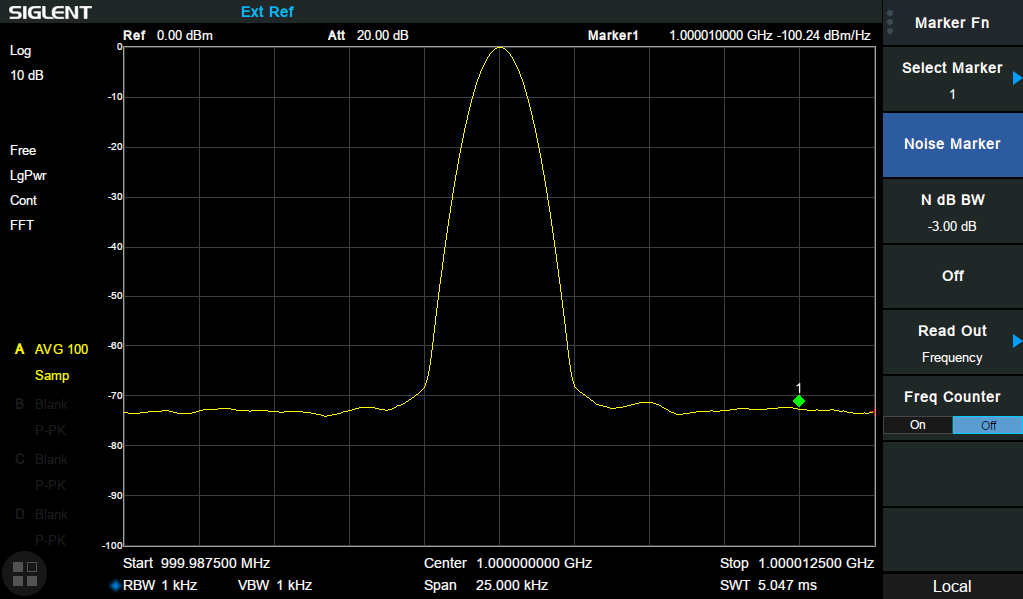

The excellent phase noise of < -99 dBc/Hz (fc = 1 GHz, @10 kHz) enables users to evaluate most synthesizers and signal generators.
Vector Network Analysis

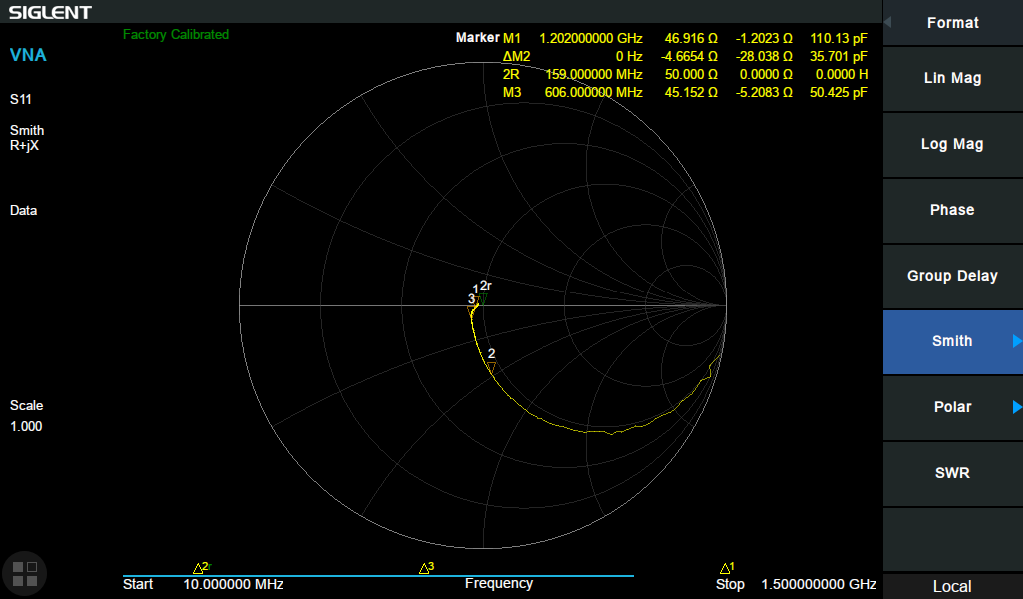

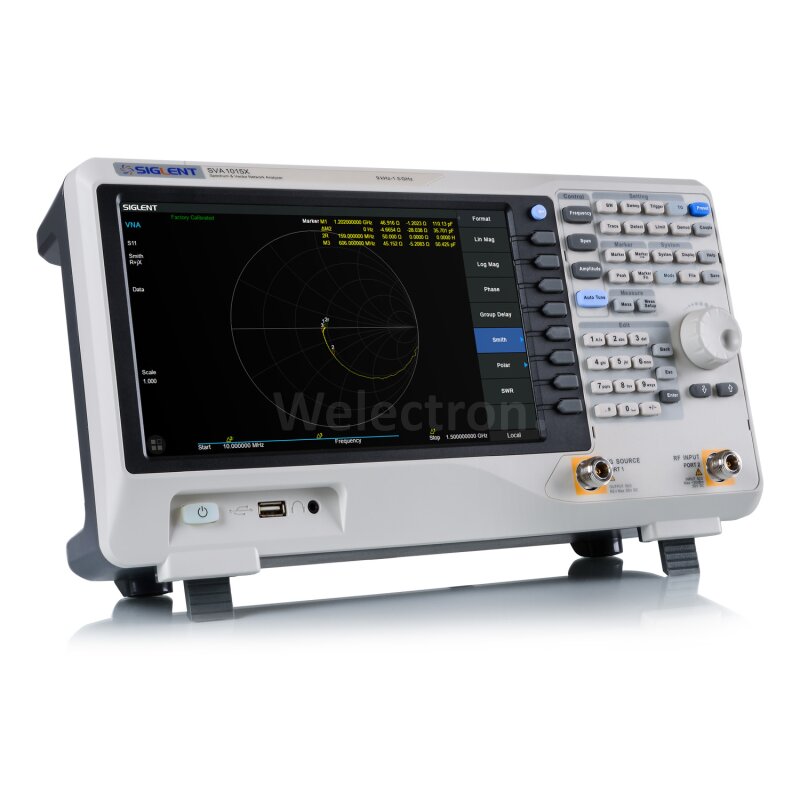

Easy measurement of scattering parameters S11 and S21 with up to 750 available measurement points. Reflection coefficient, return Loss, phase, group delay, smith chart and more can be directly displayed.

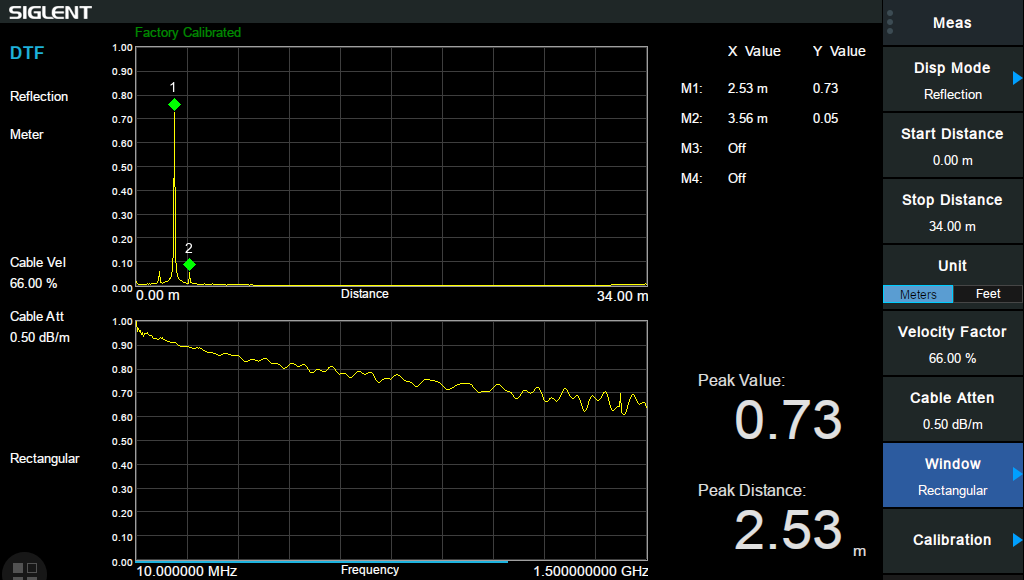

Distance-to-Fault (DTF option)
Quickly find damaged/broken cables or connections and measure antenna and transmission line performance with the DTF option. The SVA1000X provides a measurement range of 0.1 .. 51.5 m with a minimum distance resolution of 10 cm * velocity factor.
Modulation Analysis (DMA/AMA option)

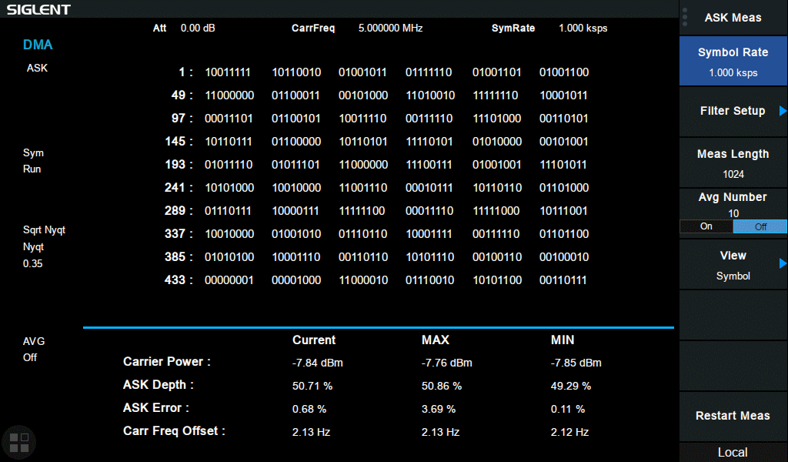

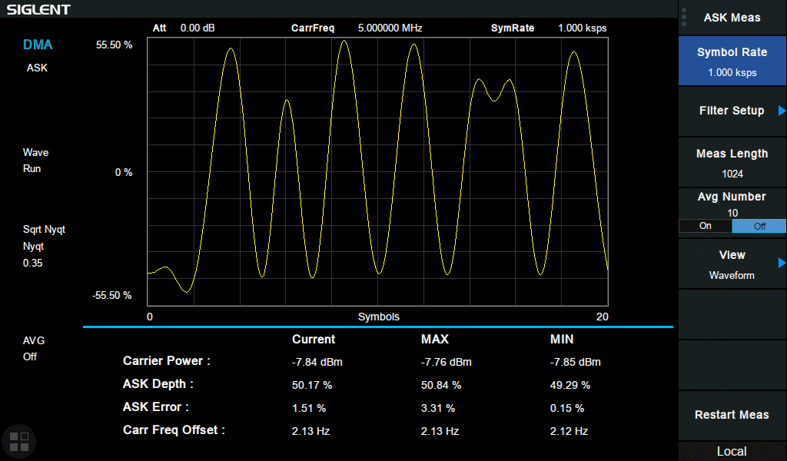

Convenient analysis of digital (FSK/ASK) and analog (AM/FM) modulation. The SVA1000X features a +2dB Carrier Power Accuracy and a Carrier Power Range of -30 .. +20 dBm (nominal).
Display demodulated data in binary or hexadecimal format.

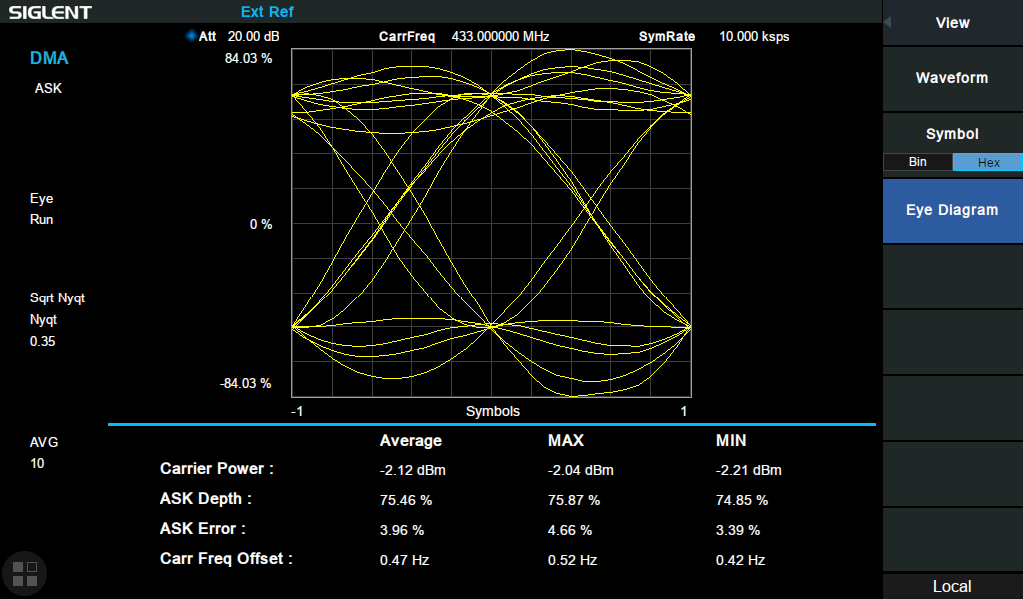

Observe signal transmission quality with the eye diagram display.

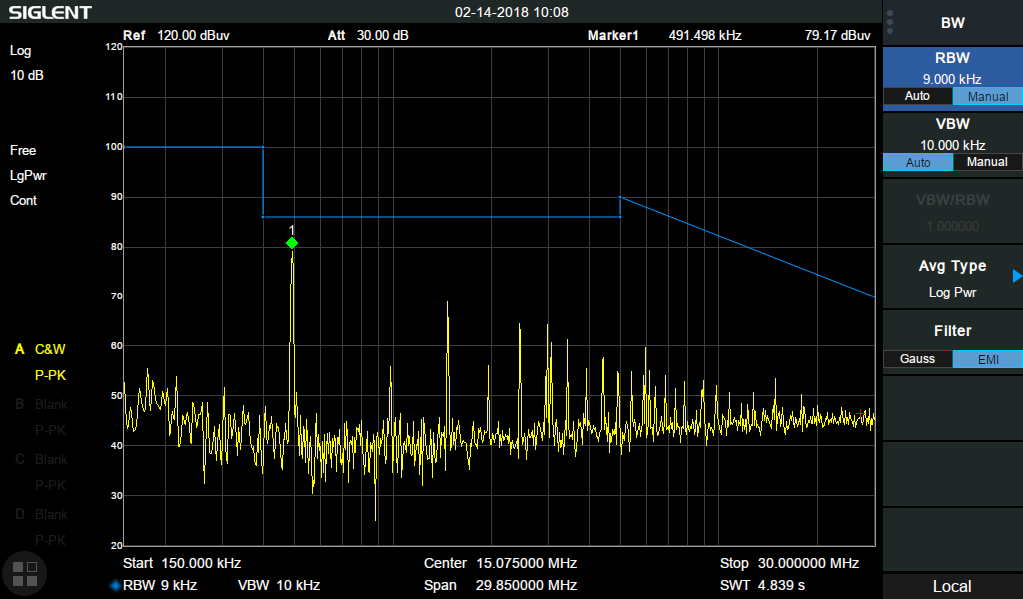

EMI Filter and Quasi-Peak detector (EMI Option)
Perform EMI pre-compliance measurements.
Advanced Power Measurement (AMK Option)

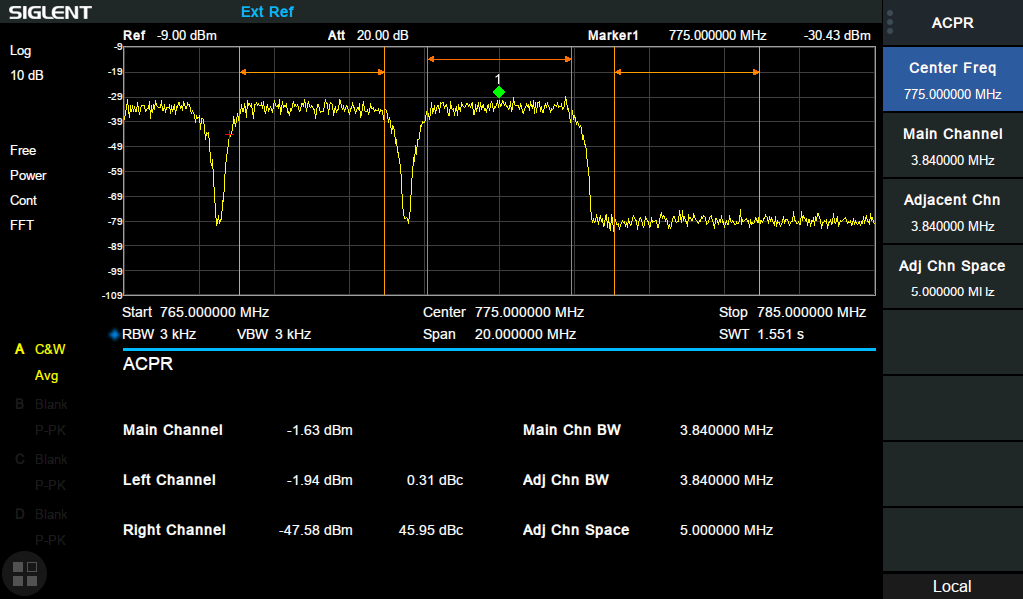

Directly display ACPR, Channel Power, Occupied Bandwidth and Time-Domain Power.
Spectrum Monitor (AMK Option)

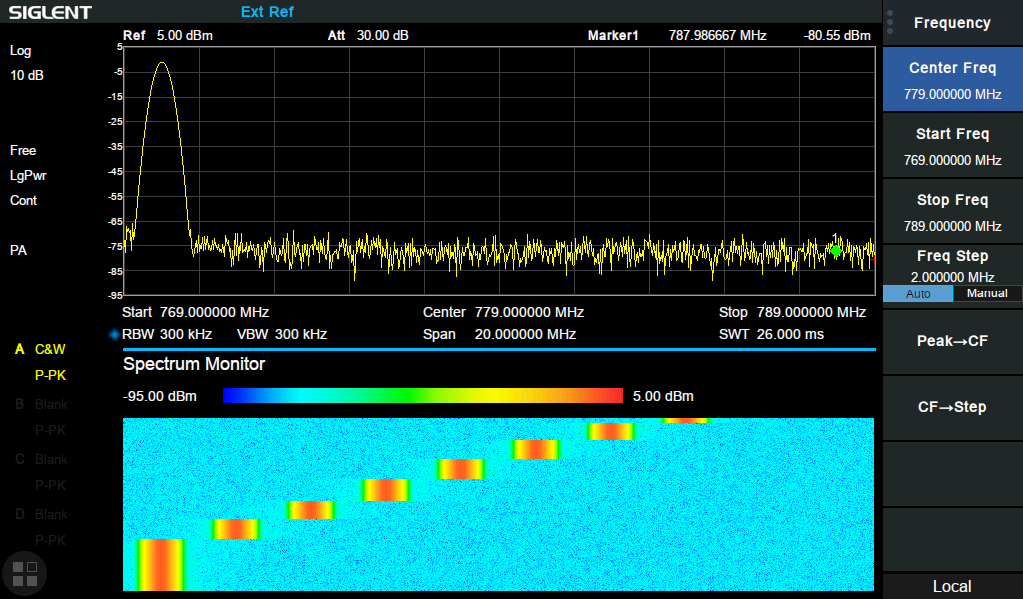

Observe the power distribution of the signal through the color temperature of the spectrogram. The color temperature indicates the power of the distributed frequency.

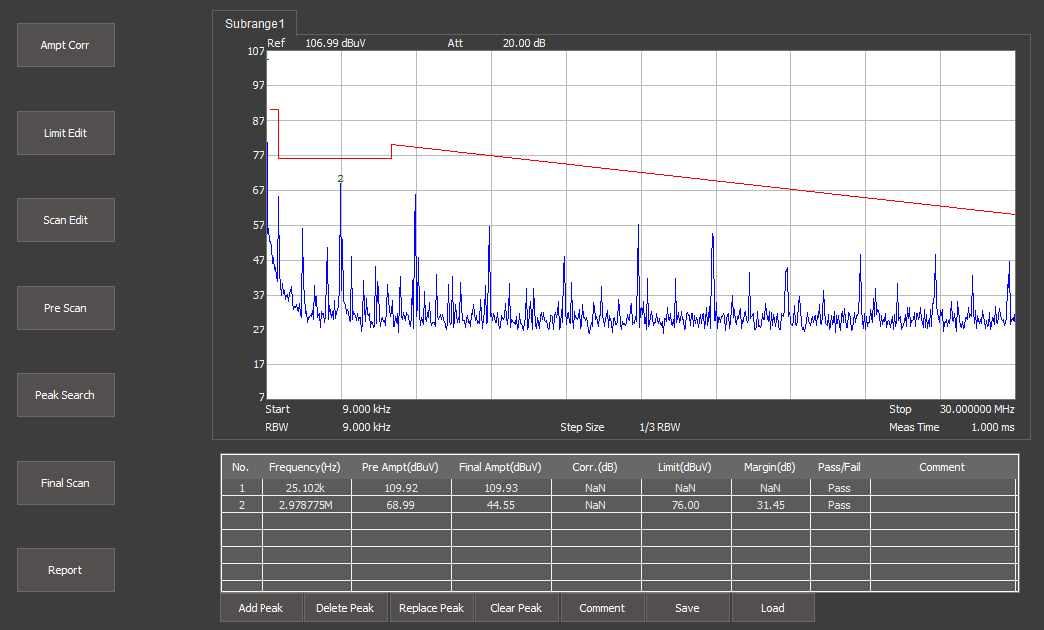

EasySpectrum PC Software
Pre-program multiple scan events into one report. Easily configure limit lines, correction tables and quickly find peaks.
Browser Remote Control

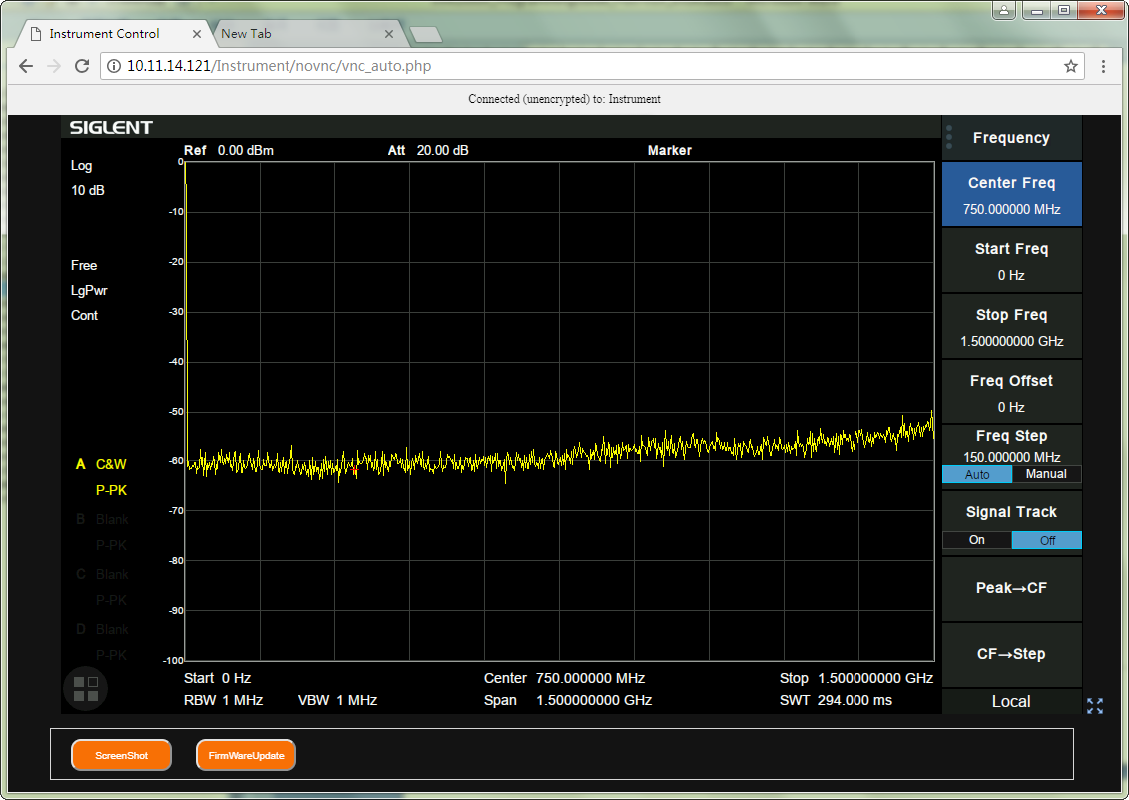

Remotely monitor and control your SVA1000X over the network with a web browser.
