Siglent SYN64 64 Synchronous Module for SDS6000L

Siglent SYN64 64 Synchronous Module for SDS6000L

Artno.: SL2-700645
Manufacturers: Siglent

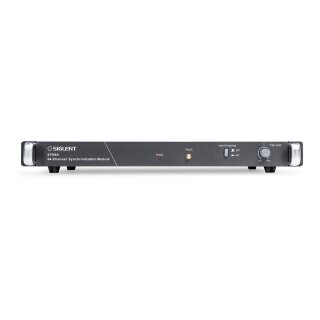

The Siglent SYN64 is a synchronization distributor for the SDS6000L low profile oscilloscope series. It has a 1:64 high-speed digital signal driver, which fan-outs the input into 64 outputs with low-jitter, low-skew. Its input offers both DC and AC coupling modes and adjustable trigger level.

10.567,00 €

incl. 19% VAT

(8.879,83 € excl. VAT)

Out of stock

Description
Product Reviews

Product Overview

The SYN64 synchronization distributor is a 1:64 high-speed digital signal driver, which fan-outs the input into 64 outputs with low-jitter, low-skew. Its input offers both DC and AC coupling modes and adjustable trigger level.

For a multi-channel acquisition system built with multiple oscilloscopes, a synchronization distributor is an essential device. Use the SYN64 as the trigger source of the oscilloscopes, connecting the outputs of the SYN64 to the EXT trigger or analog channel of the oscilloscopes to build an acquisition system. You can also use the SYN64 to calibrate the skew between channels of the acquisition system. By connecting the outputs of the SYN64 to the analog channel inputs of the oscilloscopes, you can calibrate the delay of each analog channel and cable to ensure the alignment of multiple channels.

Key Features

1:64 high-speed fanout
DC-coupled and AC-coupled input modes
-10V ~ 10V input range
-10V ~ 10V trigger level range
Low jitter, low skew
1U height for standard rack mounting

Application

Multi-channel High-speed Acquisition System

Multiple units are combined to create a high-speed acquisition system with up to 512 channels by being triggered with low-skew synchronization signals from the SYN64
The host can access each unit over 1000M LAN. A complete SCPI command set as well as LabVIEW and IVI drivers are provided for easy data acquisition. The LAN port is LXI compliant.
Sample clocks are synchronized between all units in the test system by cascading the 10 MHz In and 10 MHz Out clocks in a daisy chain

Model Overview

SYN64
Channel	1
Voltage range	-10 V ± +10 V
Swing	0.5 − 20 Vpp
Impedance	50 Ω
Power	≤ 1 W
Minimum pulse width	1 ns
Coupling	DC, AC
Trigger level	+-10 V ± +10 V, adjusted by potentiometer
Connector	SMA

Output Specifications
Channel	64
Group	8. Output 1−8 as Group 1, Output 9−16 as Group 2, and so on
Voltage	800 mVpp swing, 400 mV DC offset (into 50 Ω)
Rise time	300 ps typical
Jitter	1 ps rms typical
Skew	In group: 30 ps typical, 50 ps maximum, 0 − 50 °C Between groups: 140 ps typical, 200 ps maximum, 0 − 50 °C
Requirement on load	50 Ω to ground, DC coupled
Connector	SMA
General Specifications
Dimensions	Length × Height × Width: 434.8 mm × 43.0 mm × 285.4 mm
Power consumption	12 W
Temperature	Operating: 0°C − 50°C Non-operating: -30°C − 70°C
Humidity	Operating: 5% − 90%RH, 30°C, degraded to 50%RH at 40°C Non-operating: 5% − 95%
Altitude	Operating: ≤ 3,048 m, 25°C Non-operating: ≤15,266 m
