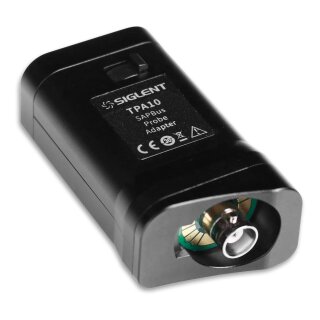

Siglent TPA10 SDS5000X Active Probe Adapter for Tektronix TekProbe
Description
SIGLENT's TPA10 adapters enable the use of non-SIGLENT active probes on SIGLENT oscilloscopes equipped with the SAPBus interface.
The TPA10 is specifically designed for probes featuring the Tektronix TekProbe Level II interface.
These adapters supply all necessary power and offset control for the connected probes, eliminating the need for an additional power supply.
Specifications
- Bandwidth: 4 GHz
- Power Supplies:
- +15 V (±2%, 100 mA)
- -15 V (±2%, 100 mA)
- +5 V (±2%, 200 mA)
- -5 V (±2%, 200 mA)
- Offset Voltage: -1.2 V ∼ +1.2 V to the probe. Multiply it by the attenuation factor of the probe to calculate the system offset range.
