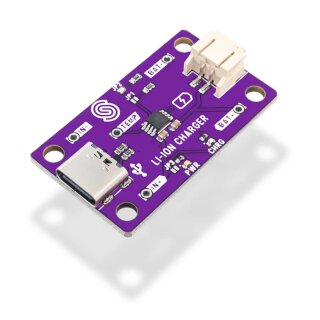

Soldered 333013 Li-ion charger
Description
Lithium batteries cannot be charged like ordinary batteries and devices. Therefore, you need a specialized charger for lithium batteries, such as this one. Integrated with CC/CV charging technology, it provides the easiest way to charge lithium batteries.
The board features a USB Type-C port for power supply, a JST connector for batteries, a circuit for charging, a protection circuit, and two status LEDs.
Dimensions: 38 mm x 22 mm
Maximum Output Current: 1 A
Standby Current Consumption: 100 µA
Logic Voltage: 5 V
Input Voltage: 4.5 V - 5.5 V
Connections: USB Type-C (socket), JST for the battery
Mounting Holes: 4
