Description

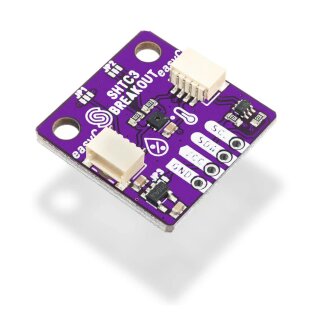

Do you want to monitor humidity and temperature in your room? Or perhaps in a greenhouse or somewhere else? The SHTC3 breakout board is the perfect solution! This digital sensor measures changes in humidity and temperature with high precision. Due to its accuracy and wide temperature measurement range, this sensor is ideal when you need precise climate information.
This breakout board utilizes the I2C communication protocol, featuring two easyC connections, so there?s no need for soldering or distinguishing between SDA and SCL. The I2C address defined by the hardware is 0x70. The design is intended for a voltage of 3.3 V and includes an embedded voltage regulator. The typical current consumption of the board is low, at just 430 µA.
Dimensions: 22 mm x 22 mm
Typical current consumption: 430 µA
Standby current consumption: 45 µA
Logic voltage: 3.3 V
Operating voltage: 3.3 V (embedded regulator for 5 V)
Temperature measurement range: -40 °C to 125 °C; +/- 0.2 °C
Relative humidity measurement range: 0 % to 100 %; +/- 2 % relative humidity
Communication: I2C (address: 0x70)
Connections: easyC x2
Mounting holes: 2
