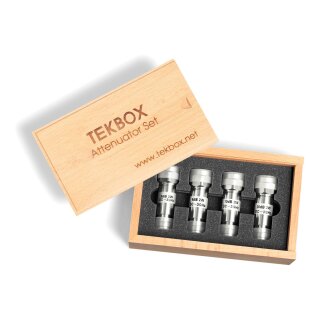

TekBox TBAS1 RF Attenuator Kit, Type N, 2W
Description
The TBAS1 RF attenuator set contains the following items:
- 3dB RF attenuator, N connector, 3 GHz, 2W
- 6dB RF attenuator, N connector, 3 GHz, 2W
- 10dB RF attenuator, N connector, 3 GHz, 2W
- 20dB RF attenuator, N connector, 3 GHz, 2W
SPECIFICATIONS
-
Tolerance: 3, 6, 10 dB +/- 0.5 dB
20 dB +/- 0.8 dB - Frequency range: DC-3GHz, VSWR < 1.3
- Power rating: 2W @ -55 to 45°C; up to 80°C with 50% power de-rating
- Connectors: N-male / N-female; bidirectional
- Dimensions: 150mm x 95mm x 45mm
- Weight: 490g
| Shipping weight: | 0.46 Kg |
