TekBox TBAS3 RF Attenuator Kit, Type N, 10W
Description

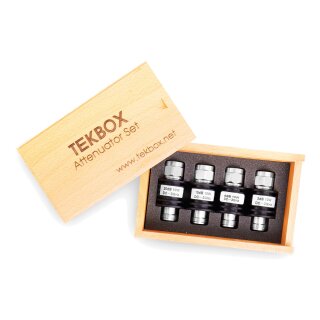

The TBAS3 RF attenuator set consists of a 3dB, 6dB, 10dB and 20dB attenuator in a beech wood box.
Specification
-
Tolerance: 3, 6, 10 dB +/- 0.5 dB
20 dB +/- 0.8 dB - Frequency range: DC-3GHz, VSWR < 1.3
- Power rating: 10W @ -55 to 40°C; up to 70°C with 50% power de-rating
- Connectors: N-male / N-female; bidirectional
- Dimensions: 150mm x 95mm x 45mm
- Weight: 505g
